BFT Deimos Ultra BT A600 24V Sliding Gate Automation Kit – 600kg

Add To Favourites
BFT
£730.75 Ex. VAT(£876.90 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT Deimos Ultra BT A600 is a 24V sliding gate automation kit designed for residential and shared-access sliding gates weighing up to 600kg.

Featuring an integrated MERAK SL2 control board and BFT's D-Track torque management system, the Deimos Ultra provides obstacle detection, adjustable operating parameters and controlled slowing during opening and closing.

The 24V electromechanical motor is designed for intensive use, with a gate operating speed of up to 12 metres per minute. Magnetic limit switches provide accurate gate positioning, while the integrated control board features an LCD programming display and supports BFT U-Link connectivity.

The non-reversing gearmotor provides mechanical locking when the gate is stationary, while the key-operated manual release allows manual operation during a power failure.

Key Specifications

  • Manufacturer: BFT

  • Model: Deimos Ultra BT A600

  • Kit SKU: KITDEIMOSBTULTRA600

  • Motor part number: P925223 00002

  • Motor voltage: 24V DC

  • Mains supply: 230V AC

  • Maximum gate weight: 600kg

  • Maximum gate speed: 12m/min

  • Power consumption: 70W

  • Control board: MERAK SL2 integrated

  • Motor type: Electromechanical

  • Duty cycle: Intensive use

  • Limit switches: Magnetic

  • Obstacle detection: D-Track torque management

  • Maximum torque: 30Nm

  • Pinion: Module 4

  • Protection rating: IP44

  • Operating temperature: -20°C to +55°C

  • Manual release: Lever-operated with personalised key

  • Connectivity: BFT U-Link and EElink compatible

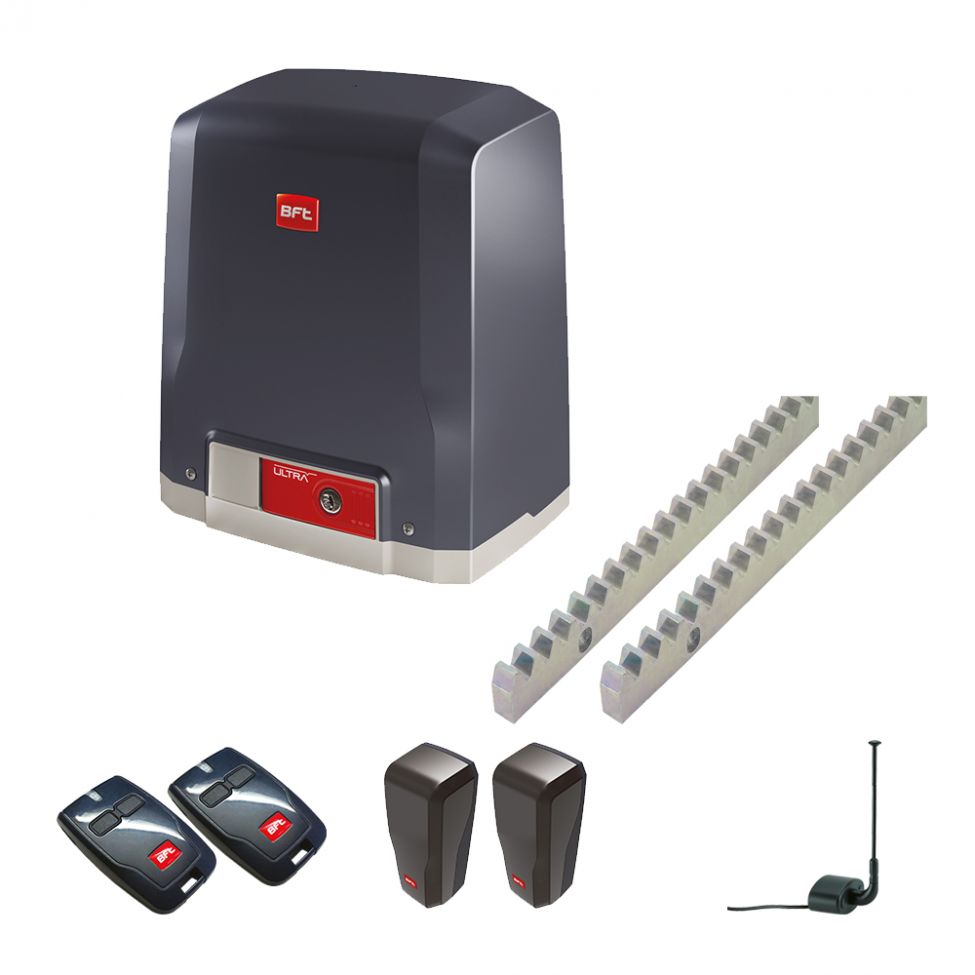

What's Included

  • 1 × BFT Deimos Ultra BT A600 24V sliding gate motor with integrated MERAK SL2 control board

  • 2 × BFT Mitto radio transmitters

  • 1 × Pair of BFT Compacta 180° safety photocells

  • 1 × BFT radio antenna

  • 4 × 1m lengths of CVZ toothed drive rack

Installer Note

Suitable for residential and shared-access sliding gates weighing up to 600kg. The MERAK SL2 control board supports adjustable operating parameters, pedestrian opening and connections for compatible safety devices, including 8.2kΩ resistive safety edges.

The kit includes 4 metres of drive rack. Additional rack may be required depending on the gate length. Further safety devices may be necessary following the installation risk assessment.

MPN:

Deimos Ultra BT A600 Kit

SKU:

Deimos Ultra BT A600 Kit
Specification
BrandBFT
SKUDeimos Ultra BT A600 Kit
ModelDeimos
Automation ForSliding Gate
OperatorGearmotor
Type of OperatorElectromechanical
Voltage24V
Max. Weight of Gate600KG
Warranty2 Years
