Click Here To Enlarge This Photo Of BFT Icaro Ultra AC A2000 230V Sliding Gate Motor – 2000kg

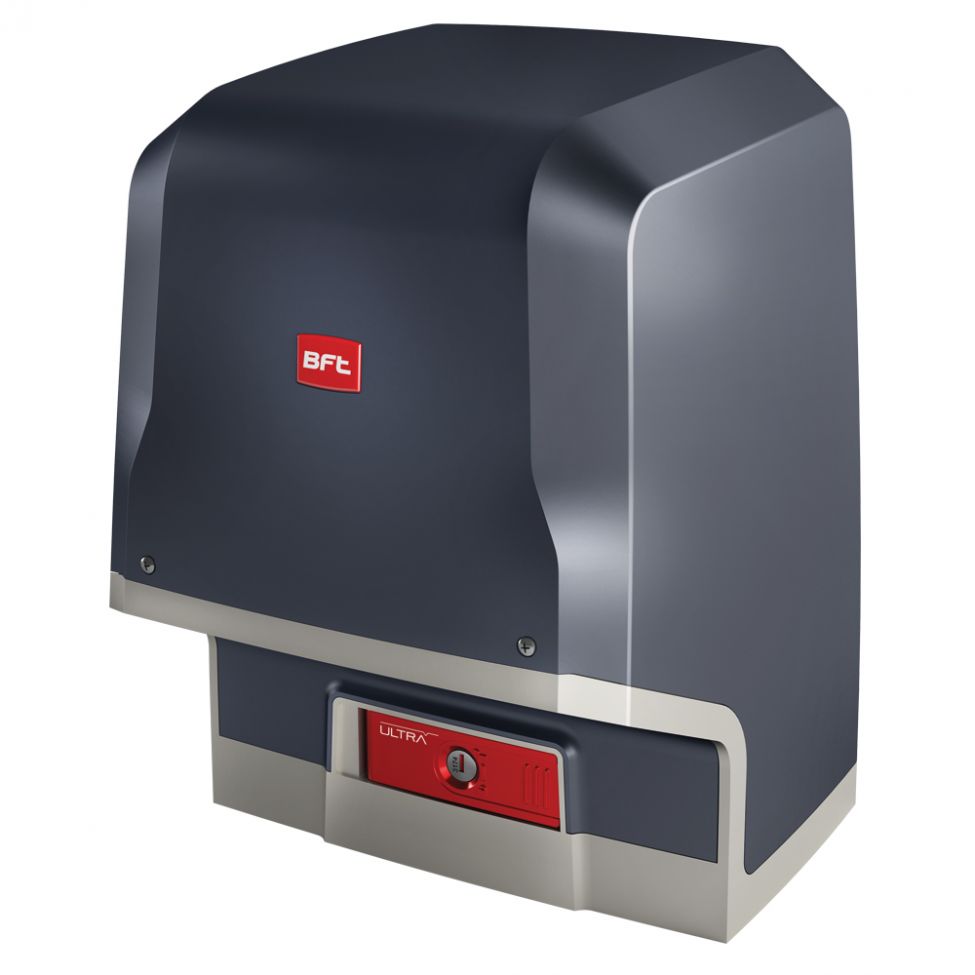

BFT Icaro Ultra AC A2000 230V Sliding Gate Motor – 2000kg

Add To Favourites
BFT
£850.00 Ex. VAT(£1,020.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT Icaro Ultra AC A2000 is a heavy-duty 230V sliding gate gearmotor designed for commercial, industrial and shared-access sliding gates weighing up to 2,000kg.

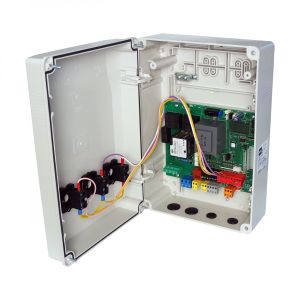

Featuring an integrated LEO B CBB control board and BFT's D-Track torque management system, the Icaro Ultra provides electronic obstacle detection, adjustable operating parameters and controlled slowing during opening and closing.

The 230V electromechanical motor incorporates an oil-bath gearbox for reliable operation under demanding conditions. Designed for very intensive use, it operates at speeds of up to 9 metres per minute, making it suitable for frequently operated entrances and heavy sliding gate installations.

An integrated absolute encoder monitors gate movement, while magnetic limit switches provide accurate positioning during opening and closing. The non-reversing gearmotor provides mechanical locking when stationary, with a manual release mechanism for operation during a power failure.

Key Specifications

  • Manufacturer: BFT

  • Model: Icaro Ultra AC A2000

  • Motor part number: P925238 00002

  • Motor voltage: 230V AC

  • Mains supply: 230V AC

  • Maximum tracked gate weight: 2,000kg

  • Maximum cantilever gate weight: 1,000kg

  • Maximum gate speed: 9m/min

  • Power consumption: 750W

  • Control board: LEO B CBB integrated

  • Motor type: Electromechanical, oil-bath gearbox

  • Duty cycle: Very intensive use

  • Limit switches: Magnetic

  • Obstacle detection: D-Track torque management

  • Movement monitoring: Integrated absolute encoder

  • Slowdown: Opening and closing

  • Protection rating: IP55

  • Operating temperature: -20°C to +55°C

  • Connectivity: BFT U-Link compatible

  • Locking: Mechanical

  • Manual release: Key-operated mechanical release

Installer Note

Suitable for heavy-duty tracked sliding gates weighing up to 2,000kg or cantilever gates weighing up to 1,000kg. The integrated LEO B CBB control board supports adjustable operating parameters, controlled slowdown and connections for compatible safety devices.

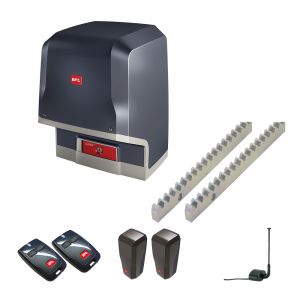

This listing is for the gearmotor with integrated control board only. Remote controls, photocells, drive rack and other installation accessories are available separately.

The Icaro Ultra AC A2000 features magnetic limit switches, unlike the Icaro Smart AC A2000, which uses electromechanical limit switches. Both models have a maximum gate speed of 9m/min.

The Icaro Ultra is also a potential replacement for older Icaro NF Prox and MA-D installations, although existing wiring and compatibility must be checked before replacement.

Additional safety devices may be required following the installation risk assessment and force testing.

MPN:

Icaro Ultra AC A2000

SKU:

Icaro Ultra AC A2000
Specification
BrandBFT
SKUIcaro Ultra AC A2000
ModelIcaro
Automation ForSliding Gate
OperatorGearmotor
Type of OperatorElectromechanical
Voltage230V
Max. Weight of Gate2000KG
Warranty2 Years
