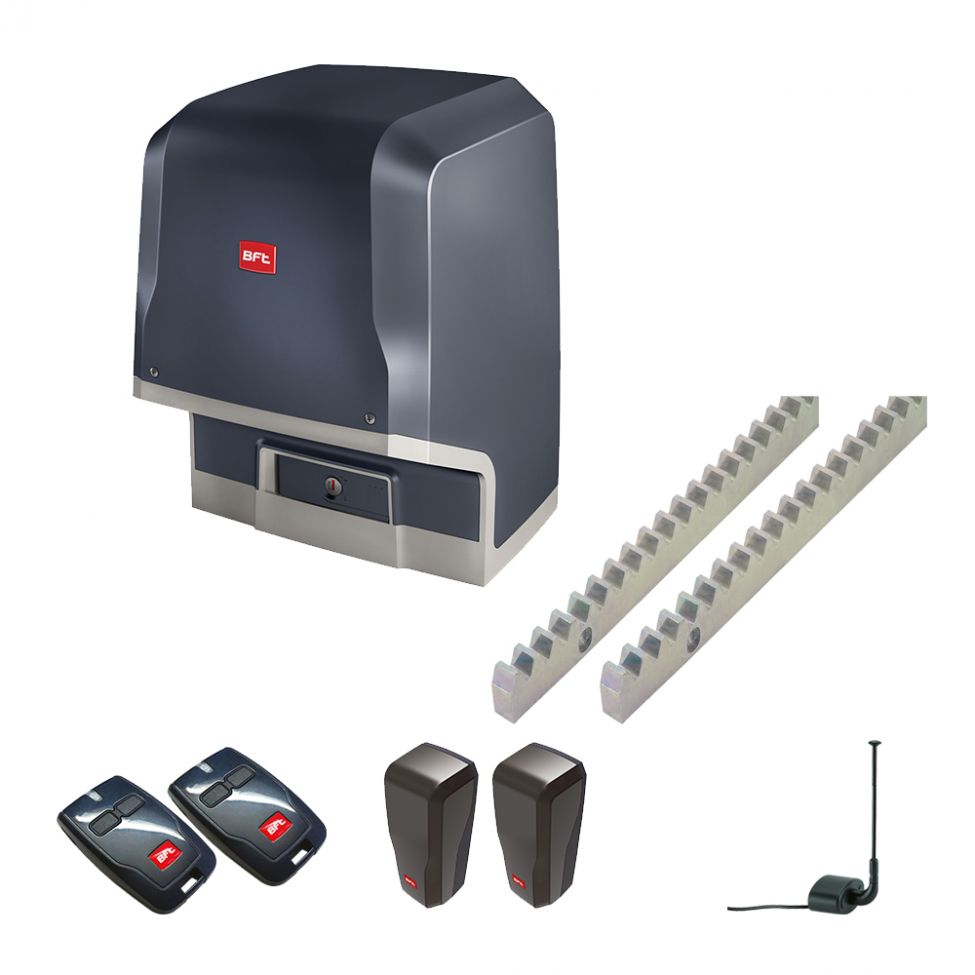

Click Here To Enlarge This Photo Of BFT Icaro Veloce AC A2000 230V Fast Sliding Gate Automation Kit – 2000kg

BFT Icaro Veloce AC A2000 230V Fast Sliding Gate Automation Kit – 2000kg

Add To Favourites
BFT
£1,115.35 Ex. VAT(£1,338.42 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT Icaro Veloce AC A2000 is a high-speed 230V sliding gate automation kit designed for heavy-duty commercial and industrial sliding gates weighing up to 2,000kg.

Featuring an integrated LEO B CBB control board and BFT's D-Track torque management system, the Icaro Veloce provides obstacle detection, adjustable operating parameters and controlled slowing during opening and closing.

The 230V electromechanical motor incorporates an oil-bath gearbox for reliable operation under demanding conditions. With a maximum gate speed of 18 metres per minute and a very intensive duty rating, it is particularly suitable for busy commercial entrances, industrial premises and shared-access installations where frequent operation and reduced waiting times are important.

An integrated encoder provides precise movement monitoring, while electromechanical limit switches control the gate's travel positions. The non-reversing gearmotor provides mechanical locking when stationary, with a lever-operated manual release for operation during a power failure.

Key Specifications

  • Manufacturer: BFT

  • Model: Icaro Veloce AC A2000

  • Alternative designation: Icaro Veloce Smart AC A2000

  • Motor part number: P925265 00002

  • Motor voltage: 230V AC

  • Mains supply: 230V AC

  • Maximum gate weight: 2,000kg

  • Maximum gate speed: 18m/min

  • Power consumption: 750W

  • Control board: LEO B CBB integrated

  • Motor type: Electromechanical, oil-bath gearbox

  • Duty cycle: Very intensive use

  • Limit switches: Electromechanical

  • Obstacle detection: D-Track torque management

  • Movement monitoring: Integrated encoder

  • Maximum torque: 40Nm

  • Pinion: Module 4, 18 teeth

  • Slowdown: Adjustable opening and closing

  • Protection rating: IP24

  • Operating temperature: -15°C to +55°C

  • Connectivity: BFT U-Link compatible

  • Manual release: Lever-operated mechanical release

What's Included

  • 1 × BFT Icaro Veloce AC A2000 230V sliding gate motor with integrated control board

  • 2 × BFT Mitto radio transmitters

  • 1 × Pair of BFT Compacta 180° safety photocells

  • 1 × BFT radio antenna

  • 4 × 1m lengths of BFT CVZ toothed drive rack

Installer Note

Suitable for heavy-duty sliding gates weighing up to 2,000kg, particularly commercial and industrial installations requiring frequent operation. The integrated control board supports adjustable operating parameters, controlled slowdown and integration with compatible BFT U-Link systems.

The kit includes 4 metres of toothed drive rack. Additional rack may be required depending on the overall gate length and travel.

The high operating speed and gate weight require careful assessment of gate construction, running resistance, stopping distances and safety protection. Additional photocells, safety edges and other protective devices may be required following the installation risk assessment and force testing.

MPN:

Icaro Veloce AC A2000 Kit

SKU:

Icaro Veloce AC A2000 Kit
Specification
BrandBFT
SKUIcaro Veloce AC A2000 Kit
ModelIcaro
Automation ForSliding Gate
OperatorGearmotor
Type of OperatorElectromechanical
Voltage230V
Max. Weight of Gate2000KG
Warranty2 Years
