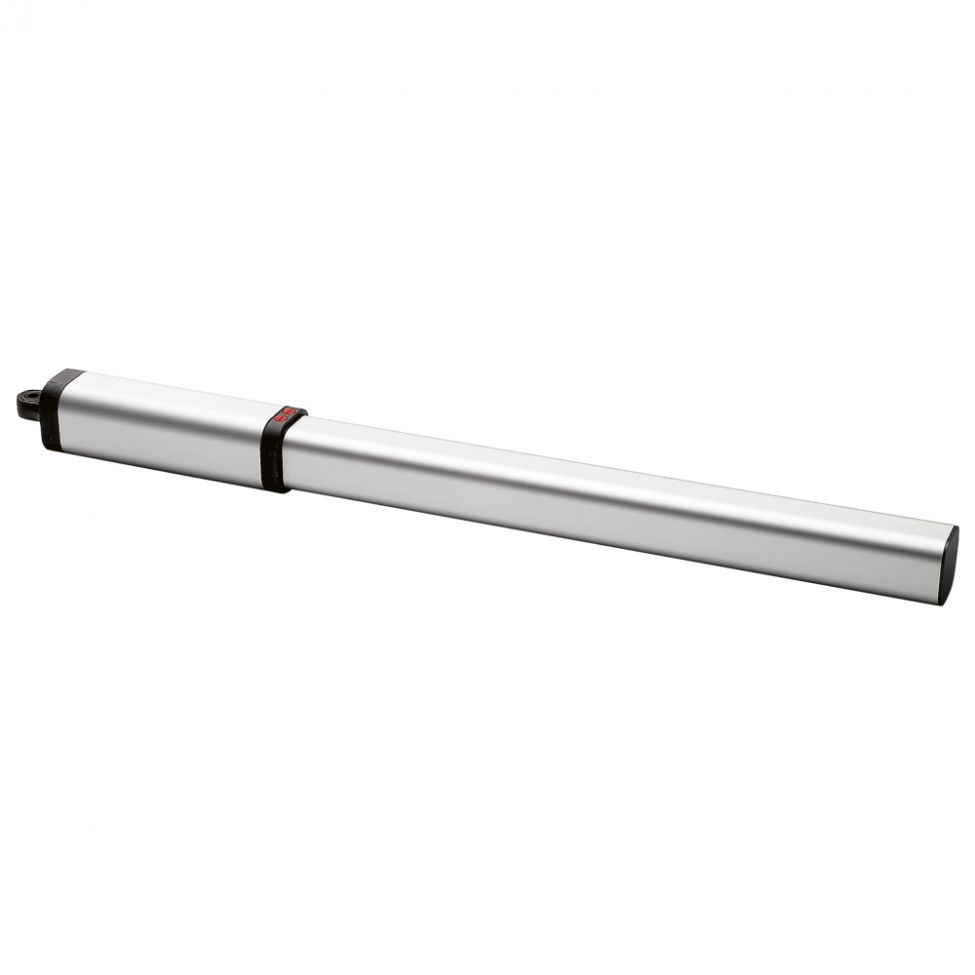

Click Here To Enlarge This Photo Of BFT LUX FC 2B 230V Hydraulic Swing Gate Motor

BFT LUX FC 2B 230V Hydraulic Swing Gate Motor

Add To Favourites
BFT
£450.00 Ex. VAT(£540.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT LUX FC 2B is a 230V hydraulic swing gate motor designed for very intensive use in residential, commercial and multi-user installations.

Suitable for swing gate leaves up to 2m wide and weighing up to 300kg, the LUX FC 2B features hydraulic locking and an integrated stop in the closed position. This makes it particularly suitable for installations where a conventional central ground stop cannot be fitted.

Key Specifications

  • Manufacturer: BFT

  • Model: LUX FC 2B

  • Product code: P935039 00001

  • Motor power supply: 230V AC

  • Maximum gate leaf length: 2m

  • Maximum gate leaf weight: 300kg

  • Motor type: Hydraulic linear swing gate operator

  • Locking: Hydraulic locking

  • Internal stop: Yes, in closed position

  • Maximum opening angle: 117°

  • Opening time: Approximately 17 seconds through 90°

  • Slowdown: No

  • Useful rod stroke: 280mm

  • Absorbed power: 250W

  • Impact reaction: Hydraulic clutch

  • Recommended control panel: BFT RIGEL 6

  • Frequency of use: Very intensive

  • Protection rating: IP57

  • Operating temperature: -10°C to +60°C

What's Included

  • 1 x BFT LUX FC 2B 230V Hydraulic Swing Gate Motor

Installer Note

The LUX FC 2B incorporates an internal stop in the closed position, unlike the standard LUX 2B operator.

Its longer body and 280mm useful rod stroke differ from the standard LUX 2B. Check mounting dimensions and installation geometry before ordering as a replacement.

MPN:

LUX 2B FC

SKU:

LUX 2B FC
Specification
BrandBFT
SKULUX 2B FC
ModelLux
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Voltage230V
Max. Width of Gate (m)2m
Warranty2 Years

You May Also Be Interested In

Cannot find what you are looking for?

Email today with a photo of your gate project and we can offer you advice and discounted prices.
