Click Here To Enlarge This Photo Of BFT LUX GV 2B 230V Hydraulic Double Swing Gate Kit

BFT LUX GV 2B 230V Hydraulic Double Swing Gate Kit

Add To Favourites
BFT
£1,242.12 Ex. VAT(£1,490.54 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT LUX GV 2B Kit is a 230V hydraulic swing gate automation kit designed for pairs of large swing gates up to 3.5m wide and weighing up to 300kg per leaf.

The LUX GV 2B is a long-stroke hydraulic operator designed for very intensive use, making it suitable for demanding residential, commercial and multi-user swing gate installations. Hydraulic operation provides smooth and consistent gate movement, while the hydraulic clutch allows the operating force to be adjusted to suit the installation.

Unlike the non-locking LUX GVR, the LUX GV 2B provides hydraulic locking in both the open and closed positions, removing the requirement for an electric lock on suitable installations.

The kit uses the BFT RIGEL 6 control panel to provide control of the two hydraulic swing gate operators and associated safety and access-control equipment.

Key Specifications

Manufacturer: BFT
Range: LUX
Model: LUX GV 2B
Product Type: Hydraulic double swing gate automation kit
Motor Voltage: 230V
Maximum Gate Leaf Width: 3.5m
Maximum Gate Leaf Weight: 300kg
Operator Type: Long-stroke hydraulic ram
Locking: Hydraulic locking in opening and closing
Electric Lock Required: No, subject to installation requirements
Impact Reaction: Hydraulic clutch
Frequency of Use: Very intensive
Protection Rating: IP57
Control Panel: BFT RIGEL 6

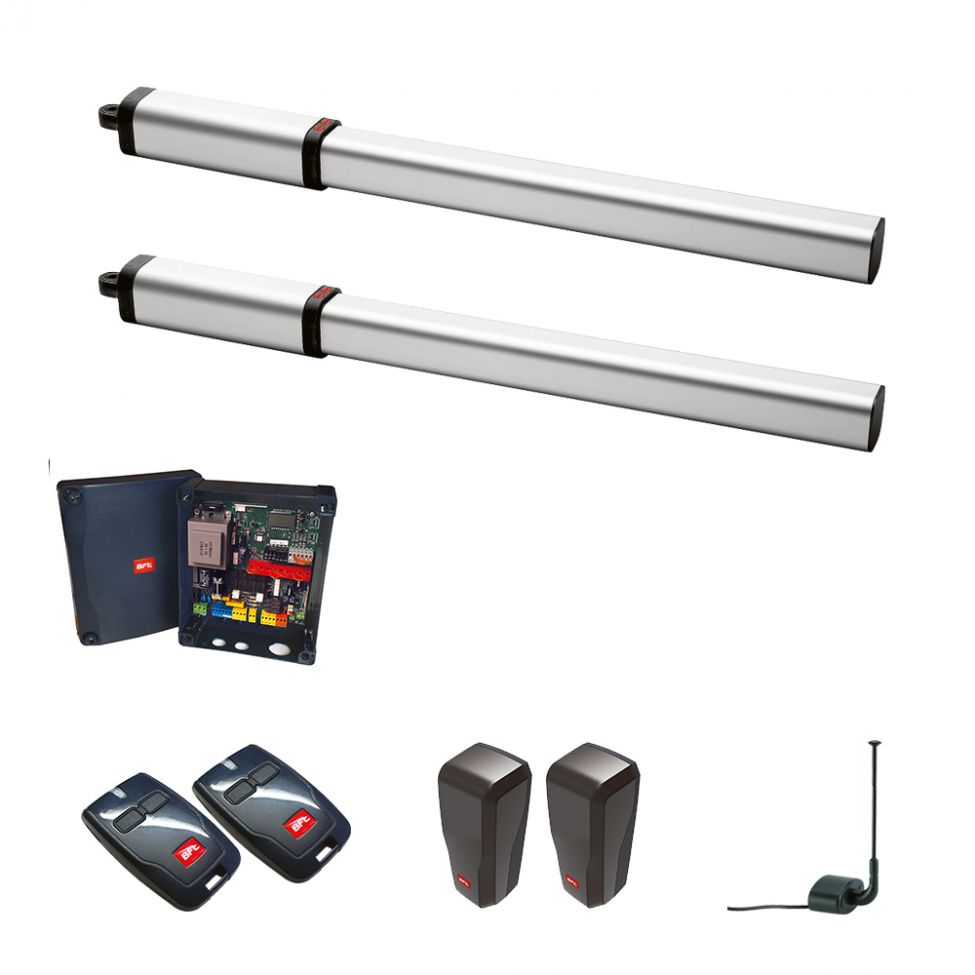

What's Included

2 x BFT LUX GV 2B 230V Hydraulic Operators
1 x BFT RIGEL 6 Control Panel with Receiver
2 x BFT MITTO Radio Transmitters
1 x Pair BFT COMPACTA 180° Photocells
1 x Radio Antenna

Installer Note

The BFT LUX GV 2B is a long-stroke operator with hydraulic locking in both opening and closing, making it particularly useful where positive hydraulic locking of the gate leaves is required.

Gate leaf dimensions, weight, hinge geometry, wind loading and mounting dimensions should all be considered when specifying the correct hydraulic operator.

MPN:

LUX GV 2B KIT

SKU:

LUX GV 2B KIT
Specification
BrandBFT
SKULUX GV 2B KIT
ModelLux
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)3.5m
Warranty2 Years
