Click Here To Enlarge This Photo Of BFT LUX GVS 230V Hydraulic Swing Gate Motor

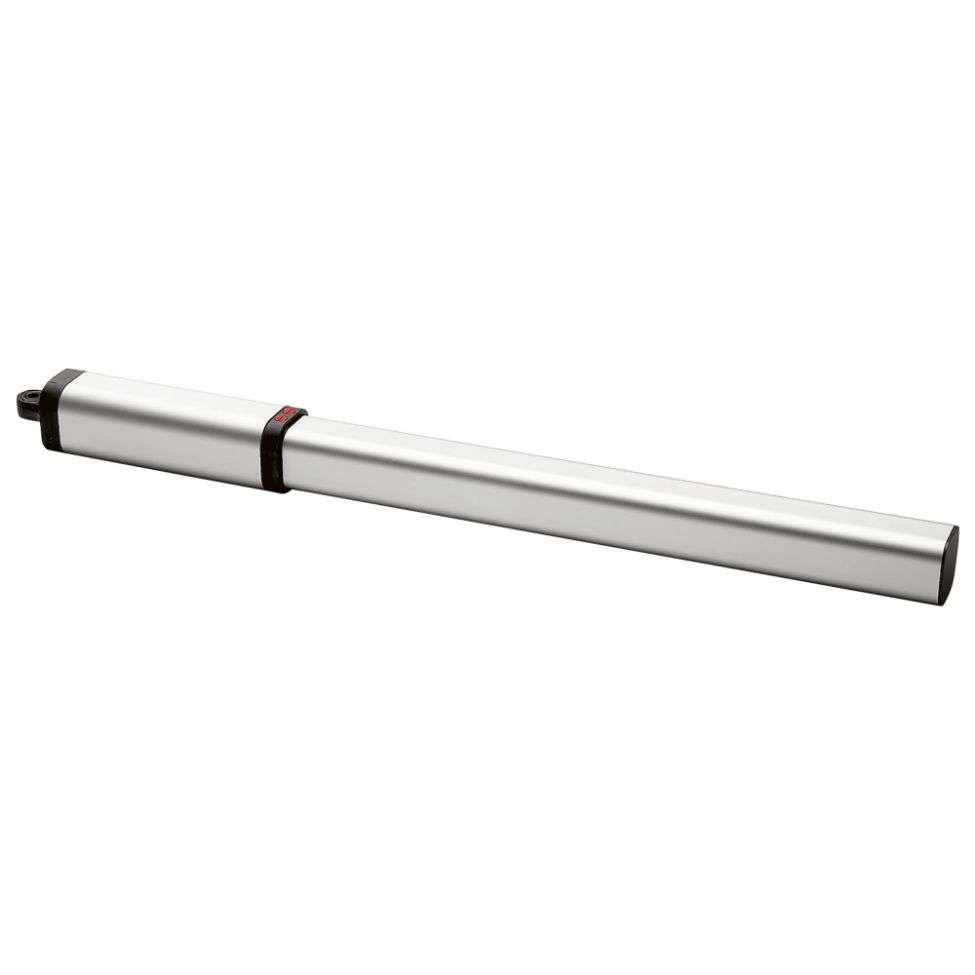

BFT LUX GVS 230V Hydraulic Swing Gate Motor

Add To Favourites
BFT
£503.00 Ex. VAT(£603.60 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT LUX GVS is a 230V hydraulic swing gate motor designed for very intensive use in residential, commercial and multi-user installations.

Suitable for swing gate leaves up to 3.5m wide and weighing up to 300kg, the LUX GVS features a long-stroke hydraulic ram with adjustable operating force. Its non-locking design makes it suitable for installations using a separate electric gate lock.

Key Specifications

  • Manufacturer: BFT

  • Model: LUX GVS (GV S)

  • Motor power supply: 230V AC

  • Maximum gate leaf length: 3.5m

  • Maximum gate leaf weight: 300kg

  • Motor type: Hydraulic linear swing gate operator

  • Locking: Non-locking

  • Maximum opening angle: 130°

  • Opening time: Approximately 28 seconds through 90°

  • Slowdown: No

  • Useful rod stroke: 390mm

  • Power consumption: 250W

  • Impact reaction: Hydraulic clutch

  • Recommended control panel: BFT RIGEL 6

  • Frequency of use: Very intensive

  • Protection rating: IP57

  • Operating temperature: -10°C to +60°C

What's Included

  • 1 x BFT LUX GVS 230V Hydraulic Swing Gate Motor

Installer Note

The LUX GVS is a non-locking hydraulic operator and requires a suitable electric lock to secure the gate.

For installations requiring slowdown during closing, the BFT LUX GVR is the corresponding alternative. Check the 390mm rod stroke and mounting geometry when replacing an existing operator.

MPN:

Lux GV S

SKU:

Lux GV S
Specification
BrandBFT
SKULux GV S
ModelLux
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Voltage230V
Max. Width of Gate (m)3.5m
Warranty2 Years
