Click Here To Enlarge This Photo Of BFT Phobos BT B25 24V Single Swing Gate Automation Kit

BFT Phobos BT B25 24V Single Swing Gate Automation Kit

Add To Favourites
BFT
£415.00 Ex. VAT(£498.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT Phobos BT B25 Single Kit is a 24V electromechanical automation system designed for single-leaf swing gates up to 2.5 metres wide and weighing up to 400kg.

Part of BFT's updated Phobos B Series, this standard-stroke operator replaces the previous Phobos BT A25 range, offering fast, quiet gate movement and improved installation features.

The motor incorporates magnetic limit switches, mechanical locking and BFT's D-Track obstacle detection technology, which monitors operating torque to help identify obstructions and provide controlled gate movement.

Featuring a 360mm working stroke, adjustable slowdown and an opening time of approximately 13 seconds through 90°, the Phobos BT B25 is suitable for residential and light commercial swing gate installations.

KEY SPECIFICATIONS

  • Manufacturer: BFT

  • Model: Phobos BT B25

  • Voltage: 24V DC

  • Control panel supply: 230V AC

  • Maximum gate width: 2.5m

  • Maximum gate weight: 400kg

  • Maximum gate width without electric lock: 2m

  • Application: Single swing gates

  • Motor type: Electromechanical linear worm-drive

  • Motor power consumption: 40W

  • Thrust and traction force: 2,000N

  • Working stroke: 360mm

  • Opening time: Approximately 13 seconds at 90°

  • Maximum opening angle: 119°

  • Locking: Mechanical

  • Limit switches: Magnetic

  • Obstacle detection: D-Track

  • Movement slowdown: Yes

  • Maximum operating cycles: 30 per hour

  • Protection rating: IP44

  • Previous model: Phobos BT A25

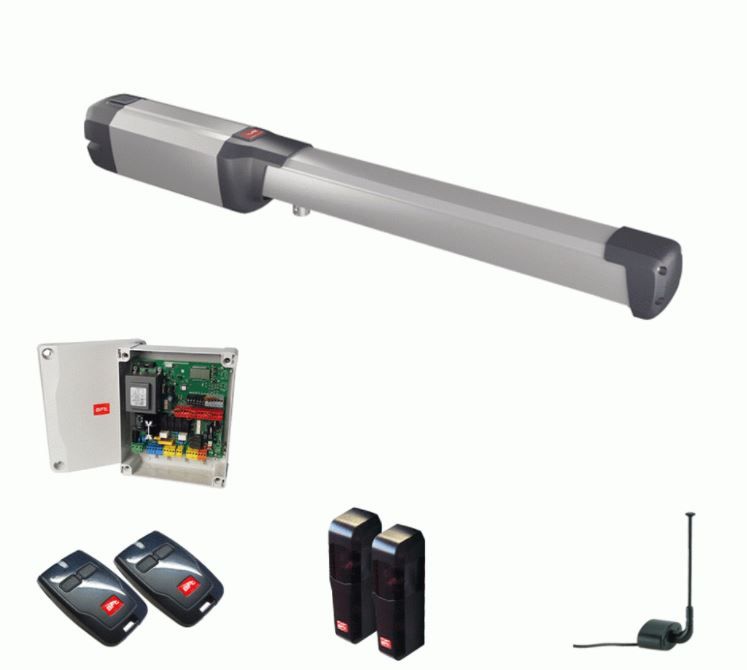

WHAT'S INCLUDED

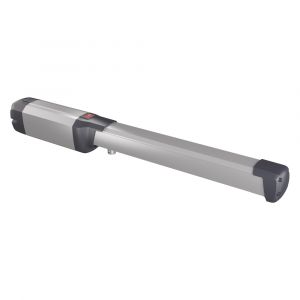

  • 1 x BFT Phobos BT B25 24V electromechanical operator

  • 1 x BFT Thalia BT A80 control panel and receiver

  • 2 x BFT Mitto Cool radio transmitters

  • 1 x Pair of BFT Compacta 180° safety photocells

  • 1 x BFT radio antenna

INSTALLER NOTE

The Phobos BT B25 supersedes the previous Phobos BT A25 operator. When replacing an existing A Series motor, check mounting bracket positions, operator dimensions and control panel compatibility before ordering.

An electric lock may be required for gates exceeding 2 metres or where installation conditions demand additional locking.

The 24V motor requires a compatible BFT control panel and must not be connected directly to a 230V supply. Appropriate safety devices, risk assessment and force testing are required during commissioning.

MPN:

Phobos BT A25 Single Kit

SKU:

Phobos BT A25 Single Kit
Specification
BrandBFT
SKUPhobos BT A25 Single Kit
ModelPhobos
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Double / Single KitSingle
Voltage24V
Max. Width of Gate (m)2.5m
Warranty2 Years
