BFT RIGEL 6 230V Swing Gate Control Panel

Description

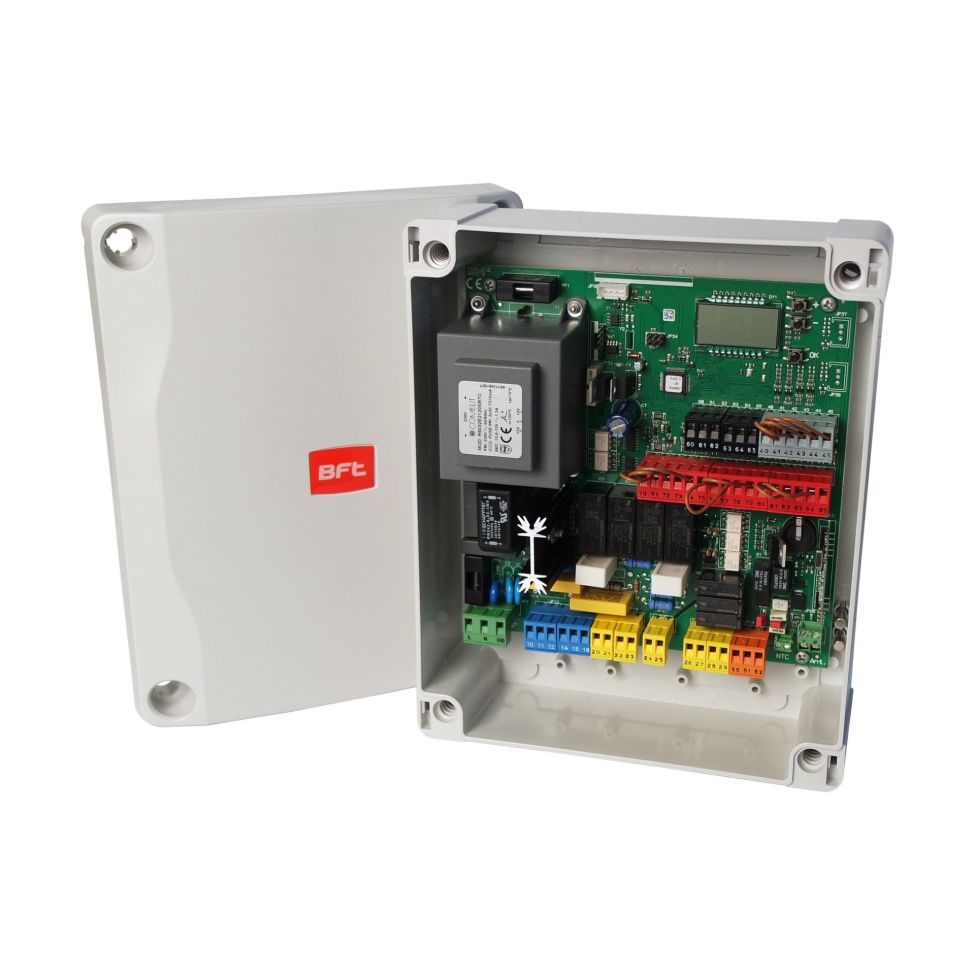

The BFT RIGEL 6 is a universal 230V control panel for one or two electromechanical or hydraulic swing gate operators. It is supplied in an enclosure and features an LCD display for straightforward programming, setup and diagnostics.

Designed as the replacement for the older BFT RIGEL 5, the RIGEL 6 is particularly useful for existing BFT installations as well as new 230V swing gate automation systems.

The panel has a built-in 4-channel radio receiver, electronic torque control and electronic slowdown on opening and closing. Separate limit switch inputs are provided for each motor, with connections for photocells, safety edges and other gate safety equipment.

A useful feature of the RIGEL 6 is adjustable obstacle detection, allowing this functionality to be added to compatible 230V electromechanical operators. It also supports BFT U-Link connectivity for integration with compatible BFT equipment.

Key Specifications

Manufacturer: BFT
Model: RIGEL 6
SKU: Rigel 6
Product Type: Swing gate control panel and enclosure
Panel Supply: 230V
Motor Supply: 230V
Operators: 1 or 2
Operator Type: Electromechanical or hydraulic
Maximum Motor Output: 750W total
Accessories Supply: 24V – 1A
Programming: LCD display
Radio Receiver: Integrated 4-channel receiver
Remote Capacity: Up to 63 transmitters
Obstacle Detection: Yes
Electronic Torque Control: Yes
Opening/Closing Slowdown: Yes
Limit Switch Inputs: Separate inputs for each motor
Safety Inputs: Photocells and safety edges
Connectivity: BFT U-Link
Operating Temperature: -20°C to +55°C
Replacement For: BFT RIGEL 5

Key Features

• Universal control panel for one or two 230V swing gate motors
• Suitable for electromechanical and hydraulic operators
• LCD display for programming and diagnostics
• Integrated 4-channel radio receiver
• Adjustable obstacle detection
• Electronic torque control
• Electronic slowdown on opening and closing
• Separate limit switch inputs for each motor
• Photocell and safety edge inputs
• Weekly timer functionality
• Hydraulic operator pre-heating function
• BFT U-Link compatible

Installer Note

The RIGEL 6 is the current replacement for the older BFT RIGEL 5 and is particularly useful when upgrading an existing 230V BFT swing gate installation. It can control both single and double swing gate systems and is suitable for compatible hydraulic operators such as the BFT P-series as well as 230V electromechanical operators.
