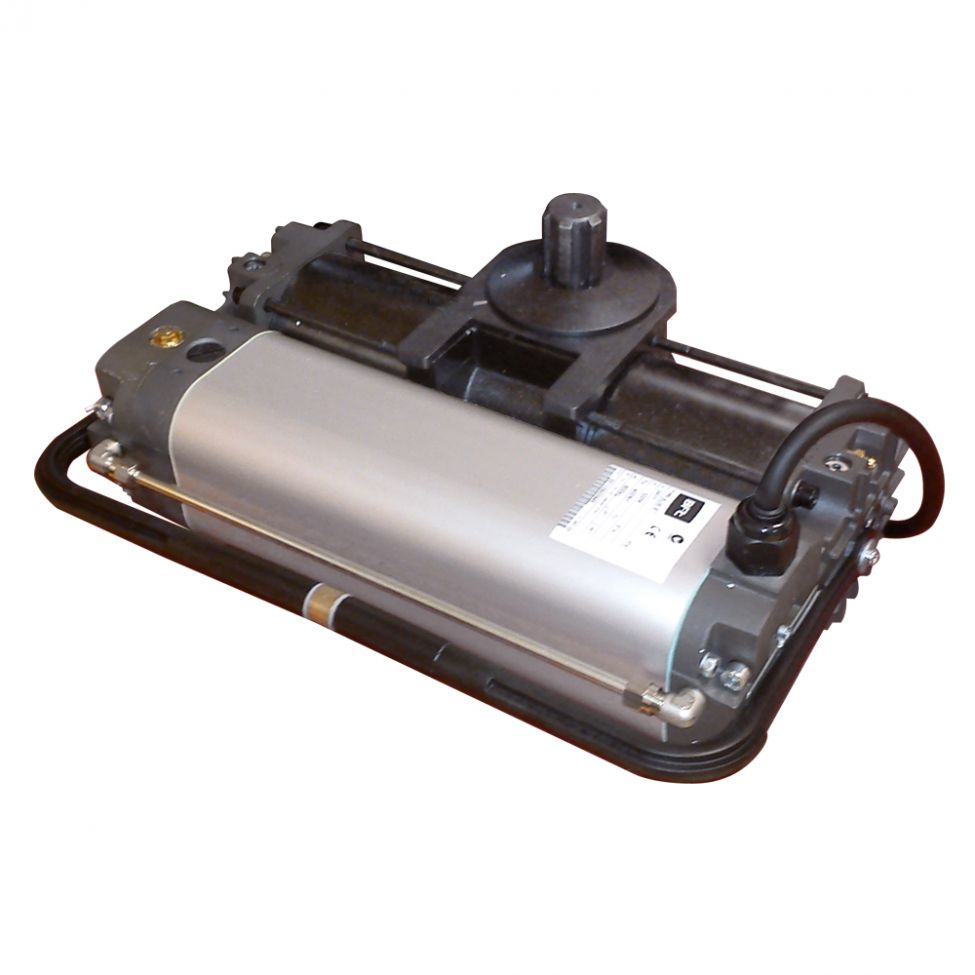

Click Here To Enlarge This Photo Of BFT SUB BT 24V Hydraulic Underground Swing Gate Motor – 2.5m

BFT SUB BT 24V Hydraulic Underground Swing Gate Motor – 2.5m

Add To Favourites
BFT
£762.04 Ex. VAT(£914.45 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT SUB BT is a 24V hydraulic underground swing gate motor designed for very intensive use in residential, commercial and multi-user installations.

Suitable for gate leaves up to 2m without an electric lock, or 2.5m with an additional electric lock, and weighing up to 800kg. Features hydraulic locking, electronic slowdown, adjustable mechanical stops and BFT's D-Track obstacle detection system.

Key Specifications

  • Manufacturer: BFT
  • Model: SUB BT 2B
  • Product code: P930123 00001
  • Motor power supply: 24V DC
  • Maximum gate leaf length: 2m without electric lock / 2.5m with electric lock
  • Maximum gate leaf weight: 800kg
  • Motor type: Hydraulic underground
  • Locking: Self-locking hydraulic
  • Maximum opening angle: 120°
  • Opening time: Approximately 13 seconds through 90°
  • Slowdown: Yes
  • Obstacle detection: BFT D-Track
  • Mechanical stops: Adjustable
  • Recommended control panel: THALIA BT A160
  • Frequency of use: Very intensive
  • Protection rating: IP67
  • Operating temperature: -20°C to +60°C

What's Included

  • 1 x BFT SUB BT 24V Hydraulic Underground Motor

Installer Note

The SUB BT is a self-locking hydraulic motor and is not suitable where a non-locking operator is required.

An additional electric lock is required for gate leaves over 2m and up to 2.5m. Check compatibility with the existing foundation casing and control panel before ordering.

MPN:

SUB BT

SKU:

SUB BT
Specification
BrandBFT
SKUSUB BT
ModelSub
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Voltage230V
Max. Weight of Gate900KG
Max. Width of Gate (m)2.5m
Warranty2 Years
