BFT Sub Kit

Description

The BFT SUB Kit is a 230V hydraulic underground automation kit for a pair of swing gates up to 1.8m per leaf and weighing up to 800kg per leaf.

Designed for intensive use, the SUB is a heavy-duty underground operator suitable for residential, multi-residential and commercial swing gate installations. The motors are installed below ground in heavy-duty foundation boxes, keeping the automation concealed beneath the gates.

The standard SUB operator is hydraulically locking and can open a gate through 90° in approximately 17 seconds.

This complete double gate kit includes two BFT SUB hydraulic operators, two heavy-duty foundation boxes, RIGEL 6 control panel, two Mitto transmitters, safety photocells and antenna.

Key Specifications

Manufacturer: BFT
Model: SUB
SKU: SUB kit
Product Type: Double underground swing gate automation kit
Operator Type: Hydraulic underground
Motor Voltage: 230V
Maximum Gate Leaf Length: 1.8m per leaf
Maximum Gate Leaf Weight: 800kg per leaf
Maximum Opening Angle: 130°
Opening Time: Approximately 17 seconds through 90°
Use Frequency: Very intensive
Impact Reaction: Hydraulic clutch
Protection Rating: IP67
Operating Temperature: -10°C to +60°C
Control Panel: BFT RIGEL 6

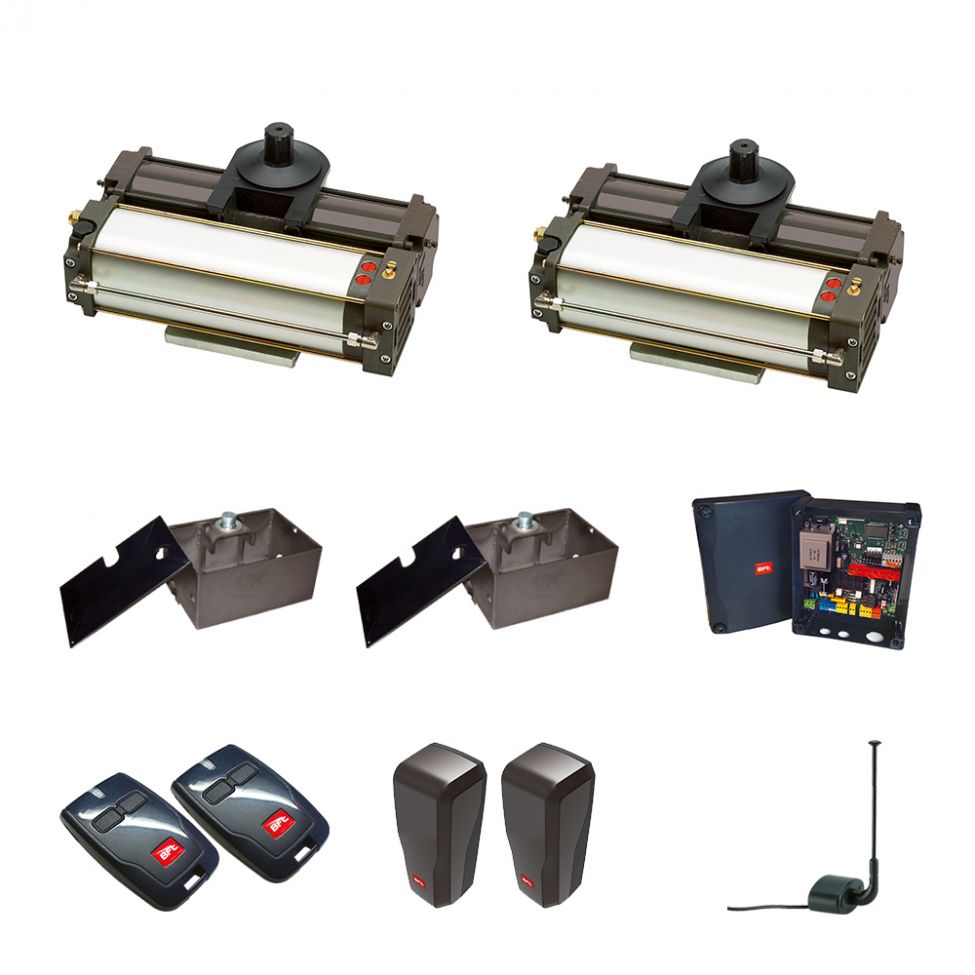

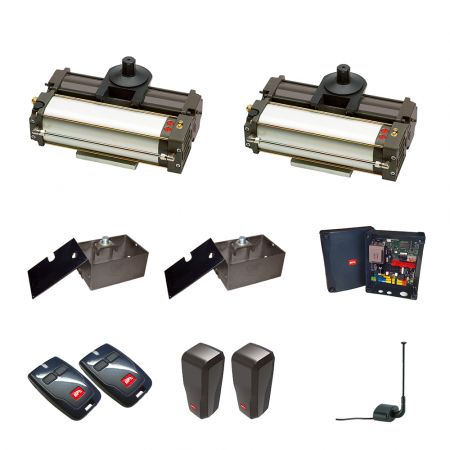

Kit Includes

2 x BFT SUB 230V Hydraulic Underground Operators
2 x BFT Heavy-Duty Foundation Boxes
1 x BFT RIGEL 6 Control Panel
2 x BFT Mitto 2-Button Transmitters
1 x Pair BFT Safety Photocells
1 x BFT Antenna

Installer Note

The 1.8m maximum leaf length applies to this standard SUB version. Other operators within the BFT SUB range are available for longer gate leaves and different opening requirements, so the correct SUB model should be selected for the application.

Gate weight, dimensions, construction, hinge position and wind loading should all be considered when specifying an underground operator.
