Click Here To Enlarge This Photo Of BFT SUB R 230V Hydraulic Underground Double Swing Gate Kit – 1.8m

BFT SUB R 230V Hydraulic Underground Double Swing Gate Kit – 1.8m

Add To Favourites
BFT
£1,678.60 Ex. VAT(£2,014.32 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT SUB R Kit is a 230V hydraulic underground gate automation system designed for double swing gates up to 1.8m wide and weighing up to 800kg per leaf.

Suitable for residential, commercial and multi-user installations, the SUB R operators are designed for very intensive use. Their underground installation keeps the motors concealed beneath the gates, maintaining a clean appearance without compromising performance.

The SUB R features hydraulic locking, fast operation and slowdown during both opening and closing. This provides controlled gate movement while reducing the impact at the end of travel.

Supplied with two hydraulic underground operators, heavy-duty foundation boxes, a BFT Rigel 6 control panel and essential automation accessories, this double gate kit provides a complete foundation for a professional installation.

Key Specifications

  • SKU: SUB R KIT
  • Manufacturer: BFT
  • Model: SUB R
  • Motor type: Hydraulic underground operator
  • Application: Double swing gates
  • Motor voltage: 230V
  • Maximum gate leaf width: 1.8m
  • Maximum gate leaf weight: 800kg
  • Maximum opening angle: 130°
  • Hydraulic locking: Yes
  • Slowdown: Opening and closing
  • Cycle time (90°): 14 seconds plus slowdown
  • Control panel: BFT Rigel 6
  • Protection rating: IP67
  • Usage: Very intensive

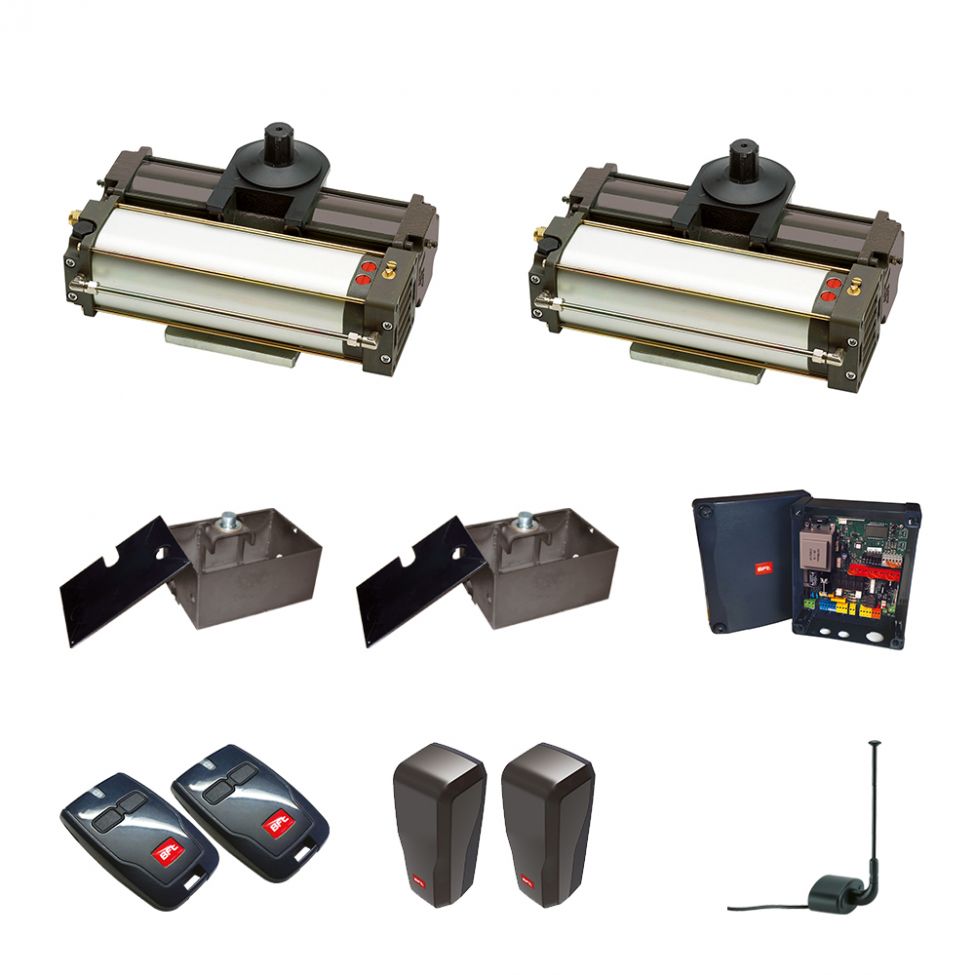

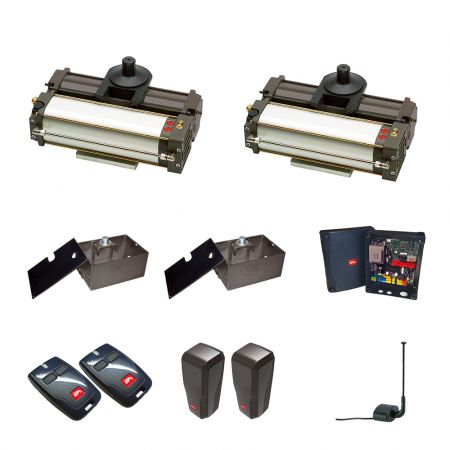

What's Included

  • 2 x BFT SUB R 230V hydraulic underground gate motors
  • 2 x Heavy-duty foundation boxes
  • 1 x BFT Rigel 6 control panel with radio receiver
  • 2 x BFT Mitto 2-button remote controls
  • 1 x Pair of BFT safety photocells
  • 1 x BFT radio antenna

Installer Note

The SUB R is a hydraulically locking operator with slowdown in both directions. For wider gate leaves, consider the BFT SUB ER range, which accommodates gates up to 2.5m per leaf but uses non-locking operators.

Additional safety devices may be required depending on the installation and risk assessment.

MPN:

SUB R KIT

SKU:

SUB R KIT
Specification
BrandBFT
SKUSUB R KIT
ModelSub
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)1.8m
Warranty2 Years
