BFT Thalia BT A160

Description

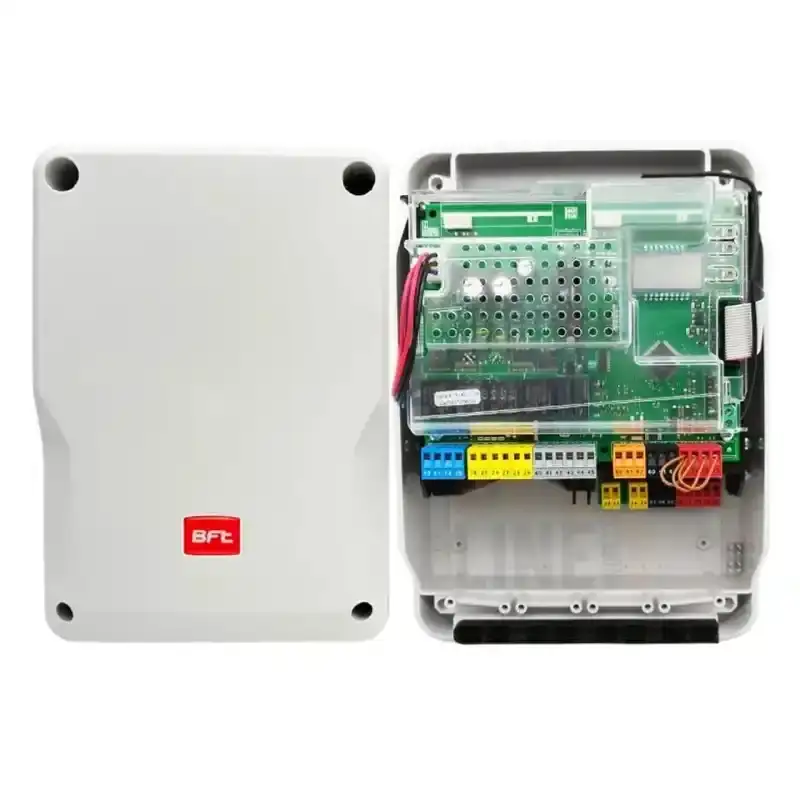

Control panel with display for one or two 24V operators for swing gates. It has two interchangeable power modules that cover the function of all the motors. The radio receiver is incorporated and the memory of the remote controls is removable and expandable. The torque is electronically adjusted with an obstacle detection system.

• Modular: thanks to the additional modules, you will be able to enhance your installation offer by satisfying the requests of a wide range of customers. If necessary, the new smart board can have a higher electrical power to
  control larger motors or ones that work under demanding conditions.

• Connectible: with the double connector you can connect a gateway and leave it permanently connected and use a second slot to make the most of the power of the b-eba family boards.

• Evolved: the U-LINK communication protocol has evolved and is still ready to dialogue with the cloud and with the modern data communication technologies. It is much faster and reactive. It allows for the two-way communication
  of data and supports OTA technology with which firmware updates can be planned remotely.

• Portable: the memory capacity of the remote controls has been extended from 64 to 128 positions but you can, if you wish, choose the 2,048-position module to control installations with a large number of stored remote controls.
  The memory can be removed and be inserted into a new mother board, without losing any remote control or the list of recorded parameters and logic's.

• Spacious: the electronic containment box is completely new. There is more room for maintenance, wiring is simpler and faster thanks to a new system with seals, the battery pack for the emergency manoeuvre can be integrated into
  the box and securing to the wall has been updated and simplified
