Click Here To Enlarge This Photo Of FAAC 390 230V Single Articulated Arm Swing Gate Automation Kit – Up to 3m

FAAC 390 230V Single Articulated Arm Swing Gate Automation Kit – Up to 3m

Add To Favourites
FAAC
£818.00 Ex. VAT(£981.60 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 390 230V Single Kit is an electromechanical swing gate automation system designed for residential gates up to 1.8 metres wide, extending to 3 metres when fitted with a suitable electric lock.

The FAAC 390 uses an articulated arm mechanism, making it particularly suitable for gates mounted on large brick or stone pillars where the hinges are set back from the pillar face. Unlike conventional linear gate motors, the articulated arm accommodates deeper hinge positions without requiring extensive alterations to the gate or pillar.

The 230V operator features a non-reversing gearbox, helping hold the gate in position when stationary. Its robust electromechanical drive provides consistent opening and closing movement, while the manual release mechanism allows the gate to be operated by hand when necessary.

Suitable for timber, steel and wrought iron swing gates, the FAAC 390 Single Kit provides a practical solution for automating entrances with substantial pillars or challenging mounting positions.

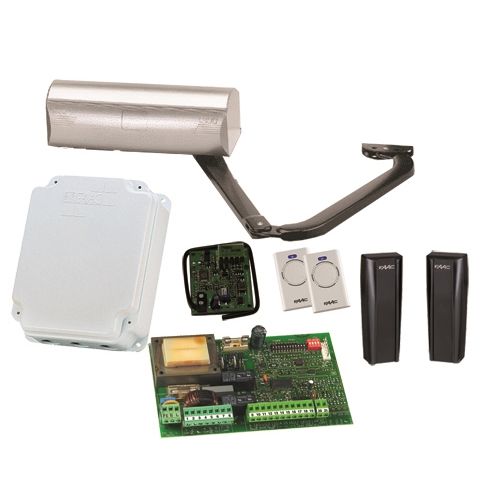

Kit Contents

  • 1 × FAAC 390 230V Electromechanical Operator

  • 1 × FAAC 390 Articulated Arm (738705)

  • 1 × Compatible FAAC Control Board and Enclosure

  • 1 × FAAC Plug-in Radio Receiver

  • 1 Pair × FAAC Safety Photocells

  • 2 × FAAC Radio Transmitters

Technical Specifications

  • Manufacturer: FAAC

  • Model: 390 230V Single Kit

  • Motor Voltage: 230V AC

  • Motor Type: Electromechanical articulated arm

  • Maximum Gate Leaf Length: 1.8m without electric lock / 3m with electric lock

  • Maximum Motor Power: 280W

  • Maximum Torque: 250Nm

  • Maximum Angular Speed: 8°/second

  • Gearbox: Non-reversing

  • Operating Frequency: 30 cycles/hour

  • Protection Rating: IP44

  • Operating Temperature: -20°C to +55°C

  • Maximum Hinge Recess: 300mm

  • Installation: Above ground

  • Gate Configuration: Single swing gate

Useful Information

Large Gate Pillars: The articulated arm arrangement accommodates hinge positions set back up to 300mm from the pillar face, making it suitable for entrances where linear operators cannot achieve the required geometry.

Electric Lock: An electric lock is required for gate leaves exceeding 1.8m, up to the maximum 3m.

230V vs 24V: This kit uses the 230V FAAC 390 operator. A separate 24V version is available for installations requiring higher operating frequency or battery backup compatibility.

MPN:

390 UK KIT S

SKU:

390 UK KIT S
Specification
BrandFAAC
SKU390 UK KIT S
Model390
Automation ForSwing Gate
OperatorArticulated Arm
Type of OperatorElectromechanical
Double / Single KitSingle
Voltage230V
Max. Width of Gate (m)1.8m (3 with electric lock)
Warranty3 Years
