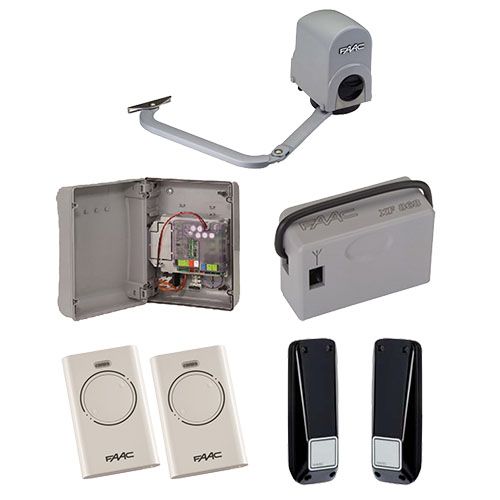

Click Here To Enlarge This Photo Of FAAC 391 Single 24V Articulated Arm Gate Kit

FAAC 391 Single 24V Articulated Arm Gate Kit

Add To Favourites
FAAC
£650.00 Ex. VAT(£780.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 391 Single Kit is a 24V electromechanical swing gate automation system designed for residential gates up to 2.5 metres wide.

Featuring a compact articulated arm, the FAAC 391 is particularly suitable for installations with large gate pillars or limited mounting space where a traditional linear ram may not be practical.

The kit includes the FAAC 391E operator with an integrated E024S control board, providing obstacle detection, adjustable operating parameters and controlled gate movement.

Its non-reversing motor holds the gate in position without a separate electric lock on leaves up to 2 metres. Built-in mechanical stops and a key-operated manual release simplify installation and maintenance.

Key Specifications

  • Manufacturer: FAAC

  • Model: 391E

  • SKU: 391 UK KIT S

  • Operator Part Number: 104576

  • Gate Type: Single swing gate

  • Maximum Gate Leaf Length: 2.5m (electric lock required above 2m)

  • Motor Voltage: 24V DC

  • Mains Supply: 230V AC

  • Motor Type: Electromechanical articulated arm

  • Maximum Torque: 250Nm

  • Maximum Angular Speed: 13°/second

  • Usage Frequency: 80 cycles per day

  • Control Board: Integrated E024S

  • Protection Rating: IP44

  • Operating Temperature: -20°C to +55°C

  • Operator Dimensions: 185 x 260 x 310mm

  • Operator Weight: 8.7kg

What's Included

  • 1 x FAAC 391E 24V Operator with Integrated E024S Control Board and Articulated Arm (104576)

  • 1 x Pair of FAAC XP20B D BUS Photocells (785103)

  • 1 x FAAC XF 868 Plug-In Receiver (787832)

  • 2 x FAAC XT2 868 SLH LR Two-Button Remote Controls (787009)

Installer Note

The FAAC 391E is suitable for left or right-hand installation. Its articulated arm provides flexibility when mounting onto larger gate pillars, although sufficient clearance is required for the arm throughout its travel.

An electric lock must be fitted where the gate leaf exceeds 2 metres. Check the manufacturer's gate weight and leaf length limits before installation.

The integrated E024S control board uses BUS photocells. An additional interface may be required when connecting conventional non-BUS safety accessories.

MPN:

391 UK KIT S

SKU:

391 UK KIT S
Specification
BrandFAAC
SKU391 UK KIT S
Model391
Automation ForSwing Gate
OperatorArticulated Arm
Type of OperatorElectromechanical
Double / Single KitSingle
Voltage24V
Max. Width of Gate (m)3m (2.5 with electric lock)
Warranty3 Years
