FAAC 400 SB Double Hydraulic Swing Gate Kit

Description

The FAAC 400 SB Double Kit is a 230V hydraulic automation kit for double swing gates, designed for large and demanding residential, condominium and commercial installations.

The FAAC 400 SB is a non-locking hydraulic operator suitable for swing gate leaves up to 7m, subject to the gate weight and installation geometry. As the SB version does not provide hydraulic locking, an electric lock is required to secure the gates in the closed position.

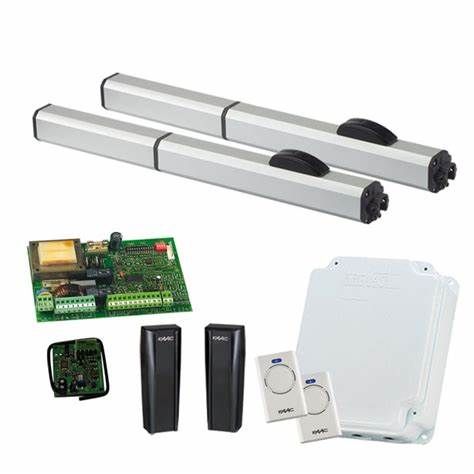

The kit includes two FAAC 400 SB operators together with the 455 D control board, housing, XP20D photocell, 868MHz SLH radio receiver/decoder and two remote controls.

Adjustable hydraulic bypass valves provide anti-crushing protection, while the key-protected manual release allows the gates to be operated manually in the event of a power failure.

Key Specifications

Manufacturer: FAAC
Model: 400 SB
SKU: 400 SB KIT
Product Type: Double swing gate automation kit
Operator Type: Hydraulic
Motor Voltage: 230V
Maximum Gate Leaf Length: Up to 7m
Use Frequency: 70%
Hydraulic Locking: No
Electric Lock Required: Yes
Manual Release: Key protected
Protection Rating: IP55
Operating Temperature: -20°C to +55°C

Kit Includes

104206 – 2 x FAAC 400 SB Operators
720119 – 1 x FAAC Model E Control Board Housing
790917 – 1 x FAAC 455 D Control Board
785102 – 1 x FAAC XP20D Directional Photocell
787730 – 1 x FAAC 868 SLH Plug-In Receiver/Decoder
787009 – 2 x FAAC XT2 868 SLH LR 2-Button White Transmitters

Installer Note

The 400 SB is the non-locking version of the FAAC 400 hydraulic operator, so an electric lock should be included in the installation.

The quoted maximum leaf length should always be considered alongside gate weight, construction, hinge geometry and wind loading, particularly on large solid or boarded gates.
