Click Here To Enlarge This Photo Of FAAC 400 SB Single Hydraulic Swing Gate Kit – 400 SB KIT S

FAAC 400 SB Single Hydraulic Swing Gate Kit – 400 SB KIT S

Add To Favourites
FAAC
£1,143.00 Ex. VAT(£1,371.60 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 400 SB Single Kit is a heavy-duty 230V hydraulic swing gate automation system designed for commercial, industrial and larger residential entrances.

Suitable for single swing gate leaves up to 4 metres, the FAAC 400 SB provides reliable operation for gates requiring regular use. Its hydraulic drive delivers smooth, quiet movement, while adjustable bypass valves provide force control.

The 400 SB is a non-locking operator, making it suitable for installations using a separate electric lock. Its robust, oil-bath lubricated construction offers long-term durability with minimal maintenance.

Key Specifications

  • Manufacturer: FAAC

  • Model: 400 SB

  • SKU: 400 SB KIT S

  • Operator Part Number: 104206

  • Gate Type: Single swing gate

  • Maximum Gate Leaf Length: 4m

  • Motor Voltage: 230V AC

  • Motor Power: 220W

  • Operator Type: Hydraulic linear ram

  • Hydraulic Locking: Non-locking

  • Electric Lock Required: Yes

  • Maximum Force: 620 daN

  • Rod Speed: 10mm/s

  • Maximum Rod Stroke: 270mm

  • Protection Rating: IP55

  • Operating Temperature: -20°C to +55°C

  • Operator Dimensions: 1031 x 113 x 85mm

  • Operator Weight: 8.6kg

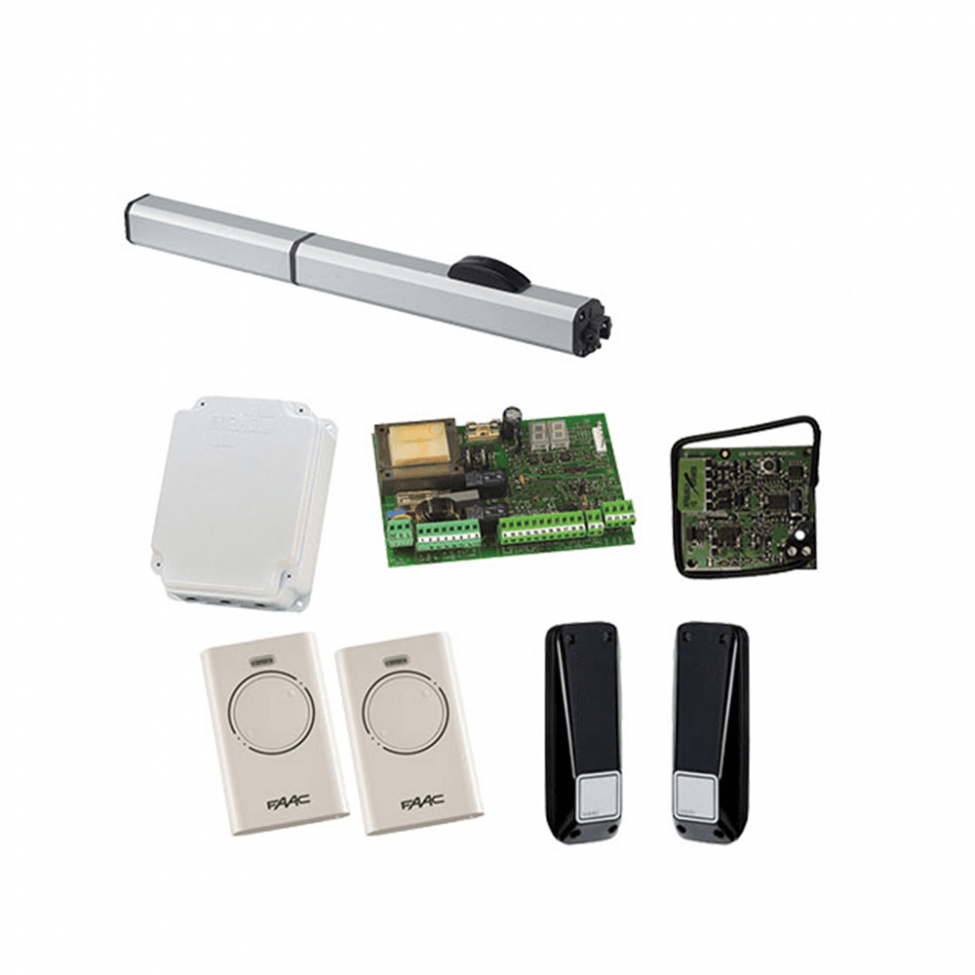

What's Included

  • 1 x FAAC 400 SB Hydraulic Operator (104206)

  • 1 x FAAC 455D Control Board (790917)

  • 1 x FAAC Model E Control Board Housing (720119)

  • 1 x Pair of FAAC XP20D Photocells (785102)

  • 1 x FAAC 868 SLH Plug-In Receiver/Decoder (787730)

  • 2 x FAAC XT2 868 SLH LR Two-Button Remote Controls (787009)

Installer Note

The FAAC 400 SB does not provide hydraulic locking, so a separate electric lock is required to secure the gate when closed.

Check gate weight, hinge geometry, pillar dimensions and wind loading before installation. The operator includes a key-protected manual release for operation during power failures.

MPN:

400 SB KIT S

SKU:

400 SB KIT S
Specification
BrandFAAC
SKU400 SB KIT S
Model400
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Double / Single KitSingle
Voltage230V
Max. Width of Gate (m)5m
Warranty3 Years
