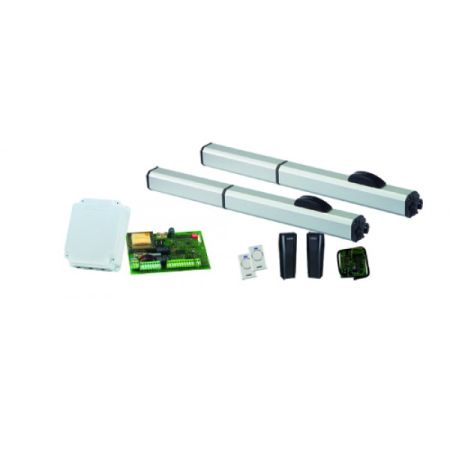

Click Here To Enlarge This Photo Of FAAC 400 SBS Double Hydraulic Swing Gate Kit

FAAC 400 SBS Double Hydraulic Swing Gate Kit

Add To Favourites
FAAC
£2,132.00 Ex. VAT(£2,558.40 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 400 SBS Double Kit is a heavy-duty 230V hydraulic swing gate automation system designed for double swing gates with leaves up to 5 metres each.

Featuring two FAAC 400 SBS hydraulic operators, the kit is particularly suited to large residential entrances, commercial premises and industrial sites requiring dependable gate automation.

The SBS operators feature a slower hydraulic pump configuration, providing controlled movement for longer gate leaves. Unlike the CBAC and CBC models, the FAAC 400 SBS is non-locking, allowing the gates to be moved manually when the operators are not powered.

Supplied with the FAAC E145S control board, the kit provides programmable gate operation, adjustable settings and connections for compatible safety and access control equipment.

Key Specifications

  • Manufacturer: FAAC

  • Model: 400 SBS Double Kit

  • Operator Model: FAAC 400 SBS

  • Operator SKU: 104203

  • Gate Type: Double Swing Gates

  • Maximum Gate Leaf Length: 5m per leaf

  • Operator Type: Hydraulic Linear Ram

  • Power Supply: 230V AC

  • Hydraulic Locking: Non-locking

  • Control Board: FAAC E145S

  • Control Board SKU: 790076

  • Rod Stroke: 270mm

  • Rod Speed: Approximately 7mm/second

  • Protection Rating: IP55

  • Operating Temperature: -20°C to +55°C

  • Application: Residential, Commercial and Industrial Gates

What's Included

  • 2 x FAAC 400 SBS 230V Hydraulic Operators (104203)

  • 1 x FAAC E145S Control Board (790076)

  • 1 x Control Board Enclosure

  • 1 x Pair of FAAC Photocells

  • 1 x FAAC Radio Receiver

  • 2 x FAAC Remote Controls

Installer Note

The FAAC 400 SBS is a non-locking hydraulic operator, and a suitable electric lock is required to secure the gates in the closed position.

The slower hydraulic operation makes the SBS particularly suitable for longer gate leaves, although gate weight, hinge geometry and wind loading must be assessed before installation.

For wider gates requiring additional rod stroke, the FAAC 400 SBS Long is available for gate leaves up to 7 metres, subject to manufacturer specifications.

This kit includes two operators for a pair of swing gates. Confirm the required safety devices, electric locking arrangement and installation geometry before ordering.

MPN:

400 SBS KIT

SKU:

400 SBS KIT
Specification
BrandFAAC
SKU400 SBS KIT
Model400
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)5m
Warranty3 Years
