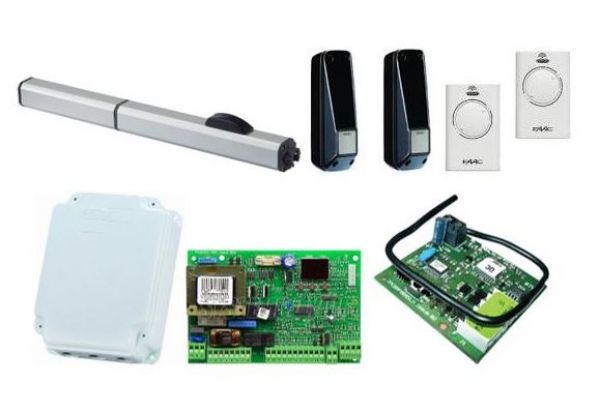

Click Here To Enlarge This Photo Of FAAC 400 SBS 230V Hydraulic Single Swing Gate Kit

FAAC 400 SBS 230V Hydraulic Single Swing Gate Kit

Add To Favourites
FAAC
£1,259.00 Ex. VAT(£1,510.80 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 400 SBS Single Kit is a heavy-duty 230V hydraulic automation system for single swing gates up to 5 metres per leaf.

Designed for demanding residential, commercial and industrial installations, the FAAC 400 SBS operator provides reliable hydraulic operation for large and heavy gates.

The SBS version is non-locking, allowing the gate to be moved manually when the operator is not powered. A separate electric lock is required to secure the gate in the closed position.

Supplied with the FAAC E145S control board, the kit provides a complete automation solution when installed with the appropriate safety devices and accessories.

Key Specifications

  • Manufacturer: FAAC

  • Model: 400 SBS

  • Kit Type: Single Swing Gate Automation

  • Motor Technology: Hydraulic

  • Power Supply: 230V AC

  • Maximum Gate Leaf Length: 5m

  • Hydraulic Locking: Non-locking

  • Rod Stroke: 270mm

  • Maximum Opening Angle: 125°

  • Operator Protection Rating: IP55

  • Control Board: FAAC E145S

  • Application: Single Swing Gates

  • Suitable For: Residential, Commercial and Industrial Installations

What's Included

  • 1 x FAAC 400 SBS 230V Hydraulic Swing Gate Operator

  • 1 x FAAC E145S Control Board

Additional accessories and safety devices depend on the selected kit configuration.

Installer Note

The FAAC 400 SBS is a non-locking hydraulic operator. An electric lock should be fitted where the gate needs to remain secured in the closed position.

Ensure the gate structure, hinges and mounting geometry are suitable for the operator before installation. The required safety devices must be selected following a site-specific risk assessment.

This is the standard-stroke SBS model for gate leaves up to 5 metres. For longer gate leaves, consider the FAAC 400 SBS Long operator.

MPN:

400 SBS KIT S

SKU:

400 SBS KIT S
Specification
BrandFAAC
SKU400 SBS KIT S
Model400
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Double / Single KitSingle
Voltage230V
Max. Width of Gate (m)2.2m
Warranty3 Years
