Click Here To Enlarge This Photo Of FAAC 413 24V Double Swing Gate Automation Kit – 2.5m Per Leaf

FAAC 413 24V Double Swing Gate Automation Kit – 2.5m Per Leaf

Add To Favourites
FAAC
£1,248.00 Ex. VAT(£1,497.60 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 413 24V Double Kit is an electromechanical swing gate automation system designed for pairs of residential gates up to 1.8 metres per leaf, extending to 2.5 metres when fitted with a suitable electric lock.

Featuring two FAAC 413 24V linear operators, the kit provides dependable automation for timber, steel and wrought iron swing gates. The slim, above-ground motors are fitted between the gate pillars and leaves, making them suitable for new installations and upgrades to existing manual gates.

Each operator incorporates a non-reversing worm drive gearbox and integrated mechanical stops for both opening and closing. The self-locking mechanism helps hold the gates in position when closed, while the built-in stops allow the travel to be adjusted without separate ground stops in suitable installations.

The 24V system is designed for frequent operation, with virtual encoder technology providing movement monitoring and obstacle detection through the compatible FAAC control board. Optional battery backup can also be added to maintain powered operation during a mains failure.

The FAAC 413 24V Double Kit is a practical choice for residential driveways requiring a compact, reliable twin swing gate automation system.

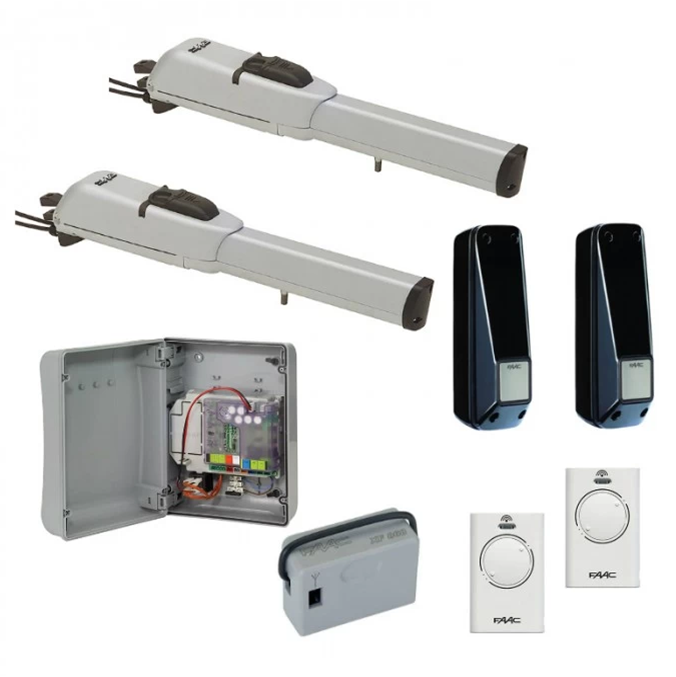

Kit Contents

  • 2 × FAAC 413 24V Swing Gate Operators (1044131)

  • 1 × FAAC E124 24V Control Board

  • 1 Pair × FAAC XP20B D BUS Photocells

  • 1 × FAAC Plug-in Radio Receiver

  • 2 × FAAC Two-Button Radio Transmitters

Technical Specifications

  • Manufacturer: FAAC

  • Model: 413 24V Double Kit

  • Kit SKU: 413 24V KIT

  • Operator Code: 1044131

  • Mains Supply: 230V AC via control equipment

  • Motor Voltage: 24V DC

  • Motor Type: Electromechanical linear operator

  • Maximum Gate Leaf Length: 1.8m without electric lock / 2.5m with electric lock

  • Maximum Motor Power: 70W per operator

  • Maximum Thrust: 2,500N

  • Piston Stroke: 300mm with mechanical stops

  • Rod Extension Speed: 16mm/second

  • Gearbox: Non-reversing, self-locking

  • Encoder: Virtual encoder through compatible control board

  • Operating Frequency: Continuous duty

  • Mechanical Stops: Integrated opening and closing

  • Protection Rating: IP44

  • Operating Temperature: -20°C to +55°C

  • Operator Dimensions: 785 × 105 × 148mm

  • Operator Weight: 6.5kg each

  • Gate Configuration: Double swing gates

Useful Information

Electric Lock: FAAC specifies an electric lock for gate leaves exceeding 1.8m, up to the maximum 2.5m.

413 vs 413 LS: This kit uses the standard 413 operators (1044131), which have integrated mechanical stops but no electrical limit switches. The 413 LS 24V version (1044141) incorporates opening and closing limit switches.

Battery Backup: Compatible battery backup equipment is available separately for operation during a mains power failure.

MPN:

413 24V KIT

SKU:

413 24V KIT
Specification
BrandFAAC
SKU413 24V KIT
Model413
Automation ForSwing Gate
OperatorArm
Type of OperatorElectromechanical
Double / Single KitDouble
Voltage24V
Max. Width of Gate (m)1.8m (2.5 with electric lock)
Warranty3 Years
