FAAC 415 L 24V Single Swing Gate Automation Kit – 4m

Add To Favourites
FAAC
£895.00 Ex. VAT(£1,074.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 415 L 24V Single Kit is a complete electromechanical swing gate automation system designed for residential gates with leaves up to 4 metres wide, subject to gate weight and installation geometry.

Featuring the FAAC 415 L 24V linear operator with a 400mm rod stroke, this kit provides smooth, controlled gate movement and is particularly suitable for residential installations requiring regular operation.

The 24V motor supports electronic obstacle detection and adjustable operating speeds through the FAAC E124S control board, providing flexibility during installation and commissioning.

The operator features a robust die-cast aluminium housing with a protective finish for outdoor use, together with a key-operated manual release for operation during power failures.

Technical Specifications

  • Manufacturer: FAAC

  • Model: 415 L 24V

  • Operator Part Number: 1044171

  • Product Type: Single swing gate automation kit

  • Operator Type: Electromechanical linear

  • Motor Voltage: 24V DC

  • Maximum Gate Leaf Length: 4m

  • Rod Stroke: 400mm

  • Maximum Thrust: 280 daN

  • Rod Extension Speed: 1.6cm/sec

  • Control Board: FAAC E124S

  • Protection Rating: IP54

  • Operating Temperature: -20°C to +55°C

  • Manual Release: Key-operated

  • Application: Residential single swing gates

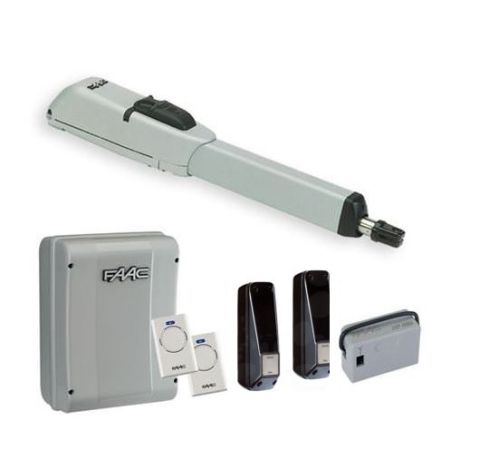

Kit Includes

  • 1 × FAAC 415 L 24V Operator (1044171) – Long-stroke electromechanical swing gate motor

  • 1 × FAAC E124S Control Board – 24V control unit

  • 1 × FAAC Control Board Enclosure – Protective housing

  • 1 × FAAC XP20B D Photocell Set – Safety photocells

  • 1 × FAAC XF FDS Receiver – Plug-in radio receiver

  • 2 × FAAC FDS Radio Transmitters – Remote controls

Useful Information

The FAAC 415 L 24V features a longer 400mm rod stroke than the standard 415 24V operator, making it suitable for larger gate leaves and installations requiring additional actuator travel.

Unlike the 230V version, the 24V operator supports electronic force management through the E124S control board and can be used with a compatible FAAC battery backup system.

An electric lock is recommended for gate leaves exceeding 3 metres. Gate dimensions, hinge positions and wind loading should be considered when selecting the operator.

MPN:

415 L 24V KIT S

SKU:

415 L 24V KIT S
Specification
BrandFAAC
SKU415 L 24V KIT S
Model415
Automation ForSwing Gate
OperatorArm
Type of OperatorElectromechanical
Double / Single KitSingle
Voltage230V
Max. Width of Gate (m)4m
Warranty3 Years
