Click Here To Enlarge This Photo Of FAAC 415 L LS 24V Long Stroke Double Swing Gate Kit with Limit Switches

FAAC 415 L LS 24V Long Stroke Double Swing Gate Kit with Limit Switches

Add To Favourites
FAAC
£1,328.00 Ex. VAT(£1,593.60 Inc. VAT)

In Stock

(From 1 Reviews)

Description

The FAAC 415 L LS 24V Double Kit is an electromechanical gate automation kit for residential double swing gates with individual gate leaves up to 4m long.

The 415 L LS is the long-stroke version of the FAAC 415 24V operator, featuring a 400mm rod stroke and travel limit devices. Designed for continuous use, the 24V system incorporates electronic anti-crushing protection and a virtual encoder with reverse function when an obstacle is detected.

The E124 24V control board provides control of the operators, travel limit stops and slowdowns. An optional emergency battery can also be added to maintain gate operation in the event of a power cut.

The operators feature a key-protected manual release for emergency operation, while the horizontal cable exit allows a lower installation position where required.

FAAC 415 L LS 24V Double Kit costs less at the Electric Gate Store. Never beaten on price.

Key Specifications

Manufacturer: FAAC
Range: 415
Model: 415 L LS 24V
SKU: 415 L LS 24V KIT
Product Type: Double swing gate automation kit
Operator Type: Electromechanical linear operator
Power Supply: 24V DC
Maximum Gate Leaf Length: 4m
Rod Stroke: 400mm
Travel Limit Device: Yes
Duty: Continuous use
Obstacle Detection: Electronic anti-crushing with virtual encoder
Obstacle Response: Reverse function
Control Board: FAAC E124 24V
Emergency Battery: Optional
Manual Release: Key-protected
Cable Exit: Horizontal
BUS Compatibility: BUS XIB interface available for applications using non-BUS devices

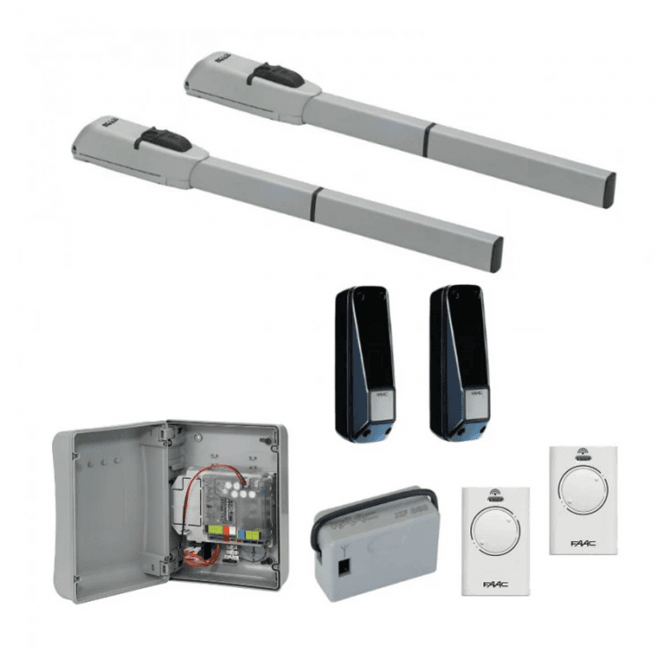

Kit Includes

1044181 – 2 x FAAC 415 L LS 24V Swing Operators
785103 – 1 x FAAC XP20B D BUS Directional Photocell
787832 – 1 x FAAC XF 868 SLH Receiver
790284 – 1 x FAAC E124 24V Control Board
787009 – 2 x FAAC XT2 868 SLH LR 2-Button White Transmitters

Installer Note

The FAAC 415 range is available with either a 300mm rod stroke for gate leaves up to 3m or a 400mm long-stroke version for leaves up to 4m. This kit contains the 415 L LS operators with 400mm stroke and travel limit devices.

The 24V DC supply to the travel limit devices allows control of the travel limit stops and slowdowns. For installations incorporating non-BUS safety or control devices, a BUS XIB interface can be added where required.

Gate geometry, hinge position, gate construction and wind loading should always be considered when selecting and installing the operator.

MPN:

415 L LS 24V KIT

SKU:

415 L LS 24V KIT
Specification
BrandFAAC
SKU415 L LS 24V KIT
Model415
Automation ForSwing Gate
OperatorArm
Type of OperatorElectromechanical
Double / Single KitDouble
Voltage24V
Max. Width of Gate (m)4m
Warranty3 Years
