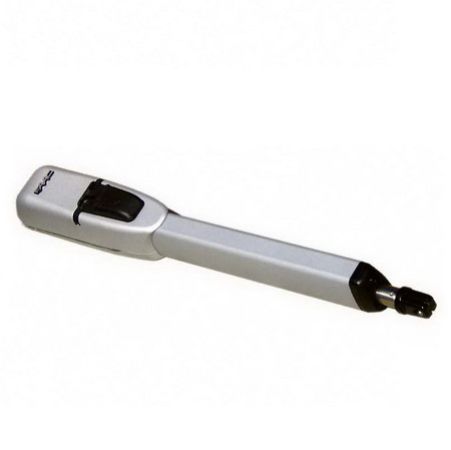

Click Here To Enlarge This Photo Of FAAC 415 L 230V Swing Gate Operator – 104417

FAAC 415 L 230V Swing Gate Operator – 104417

Add To Favourites
FAAC
£373.00 Ex. VAT(£447.60 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 415 L is a 230V electromechanical swing gate operator designed for residential and light commercial gates up to 4 metres per leaf.

Featuring a 400mm rod stroke, the long-stroke FAAC 415 L provides smooth, reliable gate movement and offers greater installation flexibility than the standard 415 operator.

The self-locking mechanism holds gates up to 3 metres without an additional electric lock, while longer leaves require a separate lock. A key-operated manual release allows the gate to be operated manually during a power failure.

Suitable for new installations or replacing an existing FAAC 415 L motor.

Key Specifications

  • Manufacturer: FAAC

  • Model: 415 L

  • Product Code / SKU: 104417

  • Operator Type: Electromechanical linear swing gate operator

  • Power Supply: 230V AC

  • Maximum Gate Leaf Length: 4m

  • Self-Locking: Up to 3m without an electric lock

  • Motor Power: 300W

  • Maximum Thrust: 3000N

  • Rod Stroke: 400mm

  • Rod Speed: 16mm/second

  • Maximum Opening Angle: 110°

  • Duty Cycle: S3 – 30%

  • Maximum Cycles: Approximately 25 per hour

  • Protection Rating: IP54

  • Operating Temperature: -20°C to +55°C

  • Dimensions: 942 x 101 x 148mm

  • Weight: 8kg

What's Included

  • 1 x FAAC 415 L 230V Operator (104417)

  • Installation brackets and accessories

  • Manual release key

  • 8µF Motor Capacitor

Installer Note

The FAAC 415 L is the 400mm long-stroke version of the standard FAAC 415 operator. An electric lock is required for gate leaves exceeding 3 metres.

This model does not include integrated travel limit switches. For installations requiring opening and closing limit switches, select the FAAC 415 L LS (104418).

Check gate dimensions, mounting geometry and existing control board compatibility before ordering as a replacement.

MPN:

104417

SKU:

104417
Specification
BrandFAAC
SKU104417
Model415
Automation ForSwing Gate
OperatorArm
Type of OperatorElectromechanical
Voltage230V
Max. Width of Gate (m)4m
Warranty3 Years
