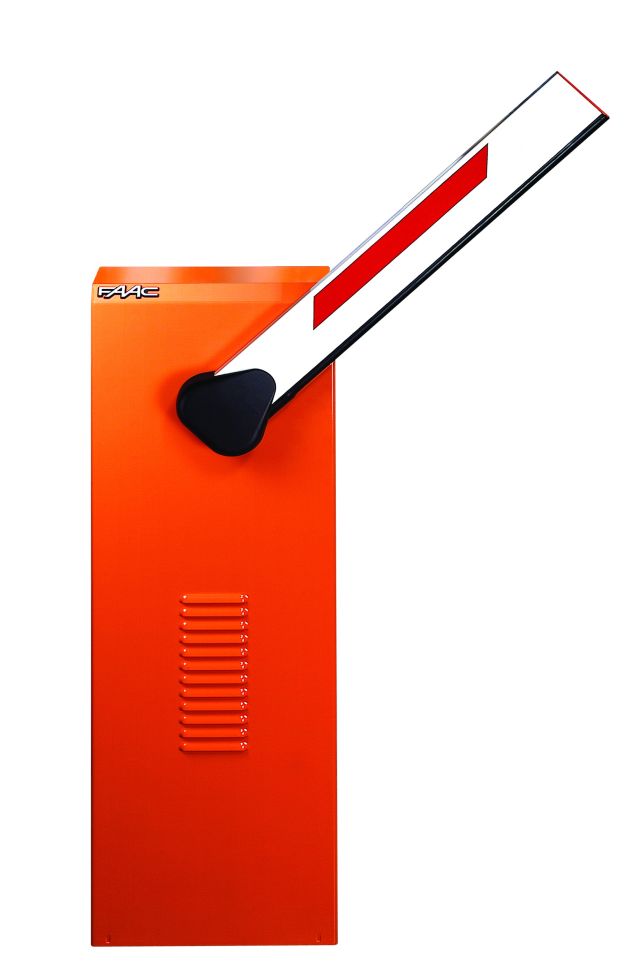

The FAAC 620 Rapid is a hydraulic automatic traffic barrier designed for controlling vehicle access at commercial premises, car parks, industrial sites and other busy entrances.
Supplied with a 3 metre barrier beam, the FAAC 620 Rapid provides a practical solution for managing vehicle entry and exit where fast operation and reliable performance are required.
The hydraulic drive system delivers smooth, controlled movement, while the integrated hydraulic locking mechanism holds the beam securely in position when the barrier is not operating. The barrier also features adjustable hydraulic force and slowdown to reduce mechanical stress during operation.
The FAAC 620 Rapid is designed for intensive use and is particularly suitable for installations requiring frequent vehicle movements throughout the day.
The integrated electronic control system supports connection to compatible access control equipment, safety photocells, induction loops and other vehicle detection devices.
Manufacturer: FAAC
Model: 620 Rapid
Product Type: Automatic Hydraulic Traffic Barrier Kit
Beam Length: 3 Metres
Maximum Passage Width: Up to 3m, subject to installation configuration
Power Supply: 230V AC, 50/60Hz
Motor Type: Single-Phase Electric Motor
Operating System: Hydraulic
Opening Time: Approximately 2 Seconds
Duty Rating: Intensive Use
Hydraulic Locking: Opening and Closing
Control Board: FAAC 624 BLD
Beam Type: Aluminium Barrier Beam
Manual Release: Integrated
Protection Rating: IP44
Operating Temperature: -20°C to +55°C
Application: Commercial and Industrial Vehicle Access Control
1 x FAAC 620 Rapid Hydraulic Barrier Operator
Integrated FAAC 624 BLD Control Board
1 x 3m Aluminium Barrier Beam
Beam Fixing Bracket
Suitable Balancing Spring
Photocells, induction loops, radio transmitters, access control equipment, traffic lights and additional safety accessories are not included unless specified separately.
The FAAC 620 Rapid is designed for high-frequency vehicle access applications requiring a 3m barrier beam and fast opening times.
The hydraulic system provides controlled movement and hydraulic locking, while the integrated manual release allows the beam to be operated manually during a power failure.
The barrier must be correctly balanced using the appropriate spring for the beam length and any additional accessories fitted.
The 3m beam configuration should be checked against the manufacturer's balancing requirements, particularly where additional equipment such as beam lights or protective skirts is installed.
Installation requires a suitable concrete foundation, appropriate electrical protection, vehicle detection and safety devices selected following a site-specific risk assessment.
| Brand | FAAC |
|---|---|
| SKU | 620 R 3M KIT |
| Model | 620 |
| Automation For | Vehicle Barrier |
| Type of Operator | Hydraulic |
| Voltage | 230V |
| Warranty | 3 Years |
