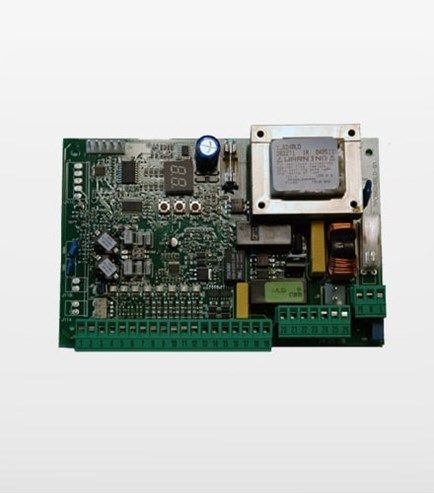

FAAC 624 BLD Electronic Control Unit

£273.73 £228.11
In stock
FAAC 624 BLD Electronic Control Unit at the best price online. Call for trade prices.

FAAC 624 BLD Electronic Control Unit

Part No: 2022715

Technical Specifications

Power supply voltage                                     230 Vac (+6%-10%) 50 (60) Hz
Absorbed power 7W
Motor max. load 300W
Accessories power supply  24 Vdc
Accessories max. current   500mA
Operating ambient temperature -200C to +550C
Protection fuses F1=F 5A-250 V  F2=T 0,8/a-250V
Function logics

Automatic, Automatic 1, Semi-automatic, Parking, Parking-Automatic, Condominium

Condominium-Automatic, FAAC bollard, Dead man, Remote, Custom

Work time Programmable (0-4 min)
Pause time Programmable (0-4 min)
Motor thrust Programmable on 50 levels
Terminal board inputs Loop 1, Loop 2, Open, Close, Closing safety devices, Stop, Emergency, 230 Vac power supply & Earth
Connector inputs Opening and closing limit switches, motor capacitor, beam release sensor
Terminal board outputs Flashing light, fan, motor, 24 Vdc power supply, fail-safe, status output, 24 Vdc indicator light, BUS
Rapid connector 5-pin fitting for Minidec card, decoder or RP/RP2 receiver
Programming 3 keys /+, -, F) and display
Programmable functions

Logic, Pause time, Thrust, Loop 1 and 2, Torque at initial thrust, Pre-flashing, Slow closing, Deceleration time, Work

time, Indicator light output, Fail-safe output, Status output, BUS output, Service Request (cycle counter)

Programmable outputs 4 programmable outputs in 18 different functions
Built-in detector, 2 independent channels

Real time auto-calibration, sensitivity independent from loop geometry, loop operating frequency

adjustment, message of "busy loop" with LED display, lop status addressable to programmable outputs                    ,

adjustment time over 2 levels

More Information
DepartmentControl Boards (ECU)
