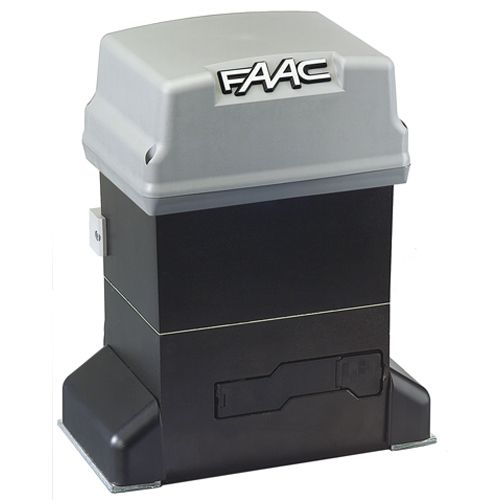

Click Here To Enlarge This Photo Of FAAC 746 ER Z16 Sliding Gate Gearmotor – 600kg (109776)

FAAC 746 ER Z16 Sliding Gate Gearmotor – 600kg (109776)

Add To Favourites
FAAC
£809.00 Ex. VAT(£970.80 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 746 ER Z16 is a robust 230V electromechanical sliding gate gearmotor designed for residential and commercial sliding gates weighing up to 600kg. Built for dependable operation, it is suitable for new installations and replacing existing FAAC 746 ER Z16 operators.

Featuring a twin-disc oil-bath clutch, the FAAC 746 ER Z16 provides adjustable mechanical force limitation, while the integrated encoder supports electronic obstacle detection and controlled gate movement.

The built-in FAAC 780D control board offers programmable operating settings, simplifying installation and commissioning. Magnetic limit switches provide accurate gate positioning, while the Z16 Module 4 pinion delivers reliable drive through a compatible sliding gate rack.

The non-reversing gearbox holds the gate in position when the motor is not operating, while a key-operated manual release allows manual movement during power failures.

Technical Specifications

  • Manufacturer: FAAC

  • Model: 746 ER Z16

  • Product Code: 109776

  • Power Supply: 230V AC

  • Maximum Gate Weight: 600kg

  • Maximum Gate Length: 40m

  • Gate Speed: 9.6m/min

  • Maximum Power: 400W

  • Maximum Thrust: 810N

  • Control Board: 780D integrated

  • Pinion: Z16 Module 4

  • Limit Switches: Magnetic

  • Obstacle Detection: Electronic encoder

  • Clutch: Twin-disc oil-bath

  • Gearbox: Non-reversing

  • Protection Rating: IP44

  • Operating Temperature: -20°C to +55°C

  • Dimensions: 275 × 191 × 336mm

  • Weight: 14kg

  • Application: Residential and commercial sliding gates

Useful Information

Replacement Motors: Check the existing motor model and pinion size before ordering. The FAAC 746 ER Z16 is rated to 600kg, whereas the Z20 version is rated to 400kg.

MPN:

109776

SKU:

109776
Specification
BrandFAAC
SKU109776
Model746
Automation ForSliding Gate
OperatorGearmotor
Type of OperatorElectromechanical
Voltage230V
Max. Weight of Gate600KG
Warranty3 Years
