FAAC 770 24V Underground Double Kit
FAAC 770 24V Double Kit

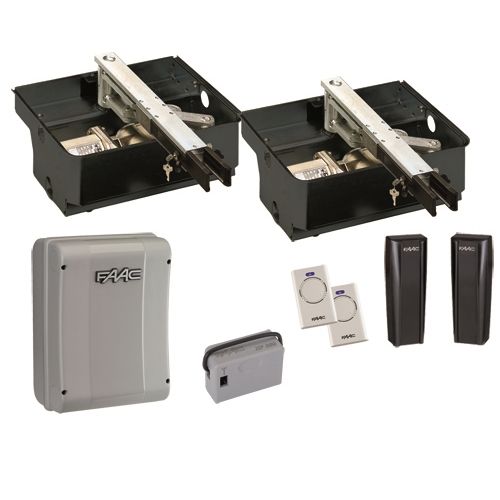

Part No: FAAC 770 24V Double Kit
2 No. FAAC 770 24V Electromechanical Operator
2 No. Underground Foundation box with release System
1 No. FAAC E024S Control Board
1 No. Control Board Housing
1 No. Pair of FAAC XP20B photocells
1 No. FAAC Plug-in Receiver / Decoder 868 SLH
2 No. FAAC Two Channel Transmitter 868 SLH
FAAC Underground operator for residential swing gates with leaves of up to 3.5 metres in length and maximum weight of 500kg.
Protection class IP67:
To “initialise” the automated system, just carry out the SET-UP operation, selecting a suitable dipswitch.
The following parameters are automatically self-learned during this operation:
- Opening/closing times
- Pause time
- Traction/thrust force
- Deceleration at end of opening and closing
- Soft start (starting at gradual speed)
- Continuously controlled electronic clutch, active at both opening and closing
- Four sensitivity levels
- Movement reversed in case of an obstacle
- Emergency stop function ( if clutch operates for two consecutive cycles)
Emergency battery (optional) ensuring operation during a power cut (15 cycles max)
The use of the safety edge system is necessary in order to certify an installation.
LOOKING FOR FAAC EQUIPMENT AND CAN'T FIND IT? GIVE US A CALL OR DROP US AN EMAIL - ALL FAAC PRODUCTS AVAILABLE.
|Model||FAAC 770 24V|
