Click Here To Enlarge This Photo Of FAAC 844 ER Z16 230V Sliding Gate Motor Kit – 1,800kg

FAAC 844 ER Z16 230V Sliding Gate Motor Kit – 1,800kg

Add To Favourites
FAAC
£1,298.00 Ex. VAT(£1,557.60 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 844 ER Z16 is a 230V sliding gate automation kit suitable for commercial and industrial gates weighing up to 1,800kg.

Designed for rack-driven sliding gates, the operator features an oil-bath twin-disc clutch for adjustable thrust, an integrated control board and a key-operated manual release.

The non-reversing gearmotor mechanically locks the gate when stationary, removing the need for a separate electric lock.

Suitable for commercial entrances, industrial premises and larger residential sliding gates.

Key Specifications

  • Manufacturer: FAAC
  • Model: 844 ER Z16
  • Kit SKU: 844 UK KIT
  • Motor part number: 109837
  • Motor voltage: 230V AC
  • Maximum gate weight: 1,800kg
  • Maximum gate length: 40m (Z16)
  • Gate speed: 9.5m/min
  • Power consumption: 650W
  • Use frequency: 70%
  • Motor type: Electromechanical
  • Drive: Z16 pinion and rack
  • Limit switches: Inductive
  • Clutch: Twin-disc oil-bath
  • Manual release: Key-operated
  • Protection rating: IP44
  • Operator dimensions: 275 × 191 × 387mm

Specifications checked against FAAC's technical information.

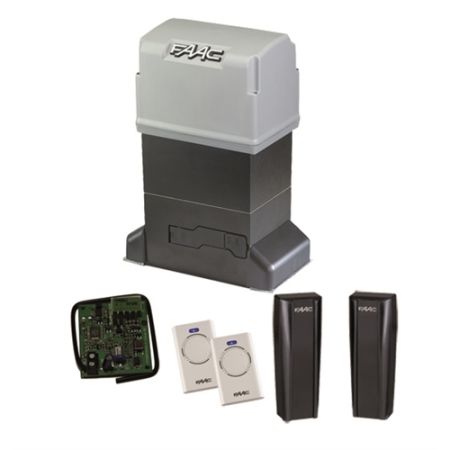

What's Included

Based on your existing Electric Gate Store listing:

  • 1 × FAAC 844 ER Z16 sliding gate motor with control board (109837)
  • 1 × FAAC adjustable mounting plate (737816)
  • 1 × FAAC RP 868 SLH-DS receiver (787854)
  • 1 × Pair of FAAC XP20W D wireless photocells (785104)
  • 2 × FAAC XT2 868 SLH LR two-button transmitters (787009)

Installer Note

Suitable for rack-driven sliding gates up to 1,800kg. The operator includes a manual release for use during power failures.

Sliding gate rack is not included in the listed kit contents and should be ordered separately.

Confirm the supplied motor, control board and radio equipment before ordering, as newer FAAC 844 C configurations are also available.

MPN:

844 UK KIT

SKU:

844 UK KIT
Specification
BrandFAAC
SKU844 UK KIT
Model844
Automation ForSliding Gate
OperatorGearmotor
Type of OperatorElectromechanical
Voltage230V
Max. Weight of Gate1800KG
Warranty3 Years
