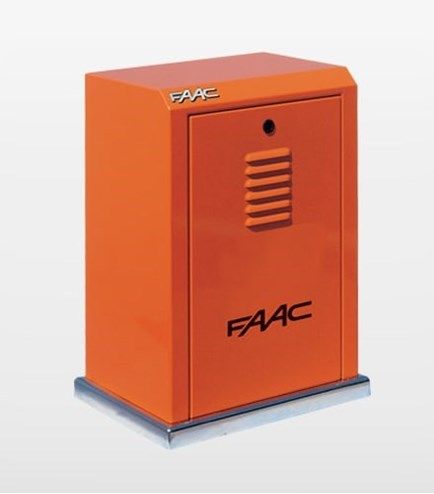

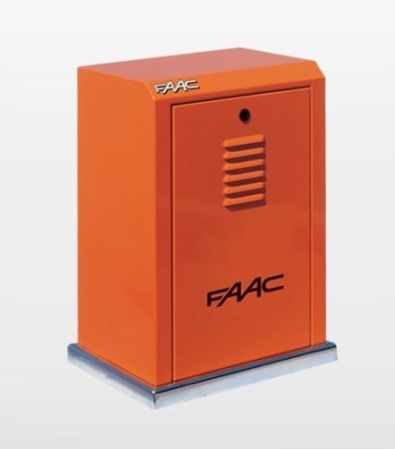

FAAC 884 MC 3PH Sliding Gate Gearmotor

£2,505.50 £2,087.92
In stock
FAAC 884 MC 3PH Sliding Gate Gearmotor at the best price online. Call for trade prices.

FAAC 884 MC 3PH Sliding Gate Operator complete with electronic control unit. Maximum gate weight 3500kg.


  • Ideal for large industrial gates with intensive use
  • For gates up to 3500kg


  • Self breaking motor guarantees reduced stop spaces and keeps the system mechanically locked when the motor is not in operation
  • In the event of power failure, the rotation of the key release device makes it possible to open and close the gate manually
  • Twin disk clutch in oil bath
  • Base with levelling screws
  • Steel housing protected by cataphoresis treatment and polyester paint


 Technical Features


 Power supply

400V AC (50-60 Hz)


1,6 A

 Absorbed power

850 W

Max. operating speed

10 m/min

 Duty cycle

100% (Up to 200kg) 50% (Over 2000kg)

Operating temperature

-20⁰C/ +55⁰C

Degree of protection

IP 44

Max. Gate leaf weight

3500 KG

 The use of the safety edge system is necessary in order to certify an installation.

More Information
DepartmentGate Operators
ModelFAAC 884
