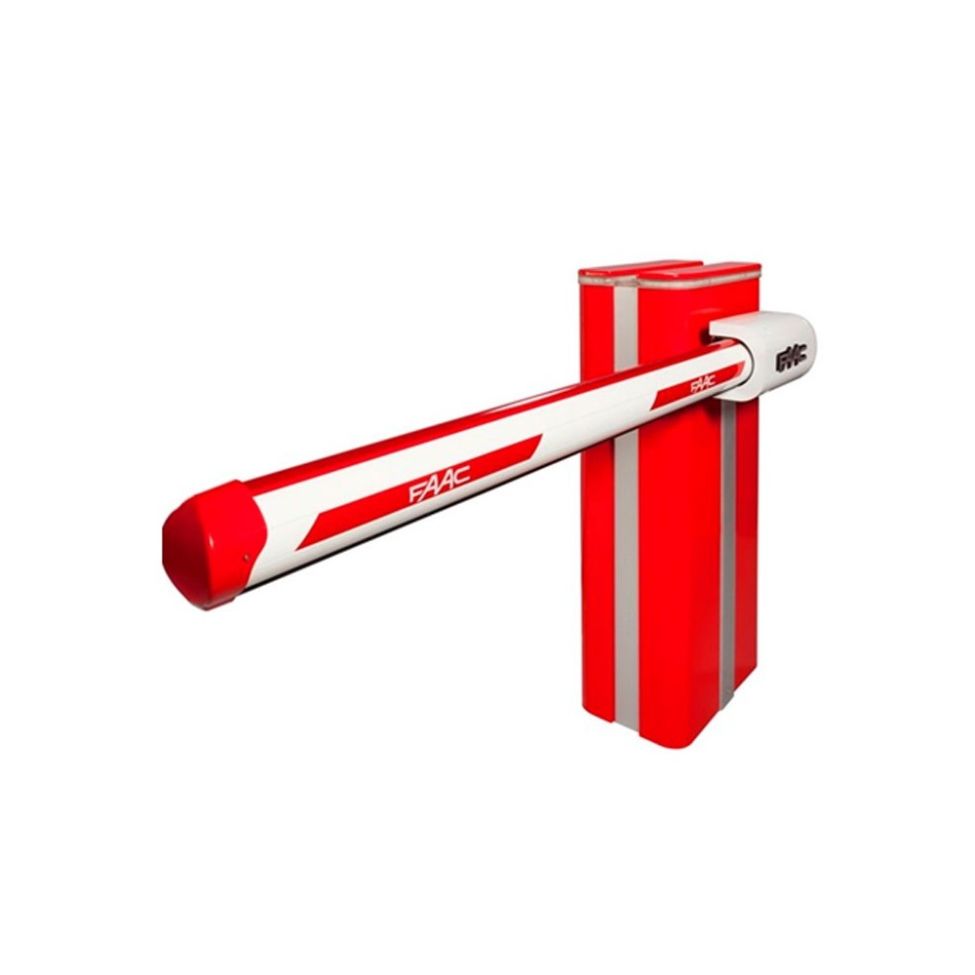

The FAAC B680 Standard Large 5m Barrier Kit is a heavy-duty automatic traffic barrier designed for commercial, industrial and high-traffic vehicle entrances.
Combining hydraulic technology with a 36V brushless motor, the FAAC B680H delivers fast, smooth and reliable operation, even in demanding environments requiring continuous use.
The kit features a 5m large-profile aluminium beam, integrated E680 control board with built-in loop detection and an absolute encoder for obstacle detection and controlled deceleration.
With adjustable opening and closing speeds, a removable protective housing and a robust hydraulic drive, the B680H is ideal for car parks, industrial estates, commercial premises and managed access points.
Manufacturer: FAAC
Model: B680H Standard Large
SKU: B680L5MKIT
Barrier Type: Hydraulic automatic traffic barrier
Beam Length: 5m
Beam Profile: Large, 109 x 85mm
Power Supply: 100–240V AC, 50/60Hz
Motor Voltage: 36V DC brushless
Maximum Power Consumption: 240W
Opening Time: Adjustable, approximately 1.5–6 seconds depending on beam configuration
Duty Cycle: 100% continuous operation
Control Board: Integrated E680/E680S, depending on version
Obstacle Detection: Integrated absolute encoder
Loop Detection: Two integrated channels
Protection Rating: IP56
Operating Temperature: -20°C to +55°C
Barrier Dimensions: 469 x 279 x 1100mm
Installation: Left or right-hand configuration
1 x FAAC B680H Hydraulic Barrier Body
1 x Integrated E680 Control Board
1 x Protective Barrier Housing
1 x Foundation Base Plate
1 x Large Beam Bracket and Balancing Spring Assembly
1 x 5m Large-Profile Aluminium Barrier Beam
Reflective Beam Stickers
The FAAC B680H can be installed in either a left or right-hand configuration. The balancing spring must be correctly adjusted to suit the 5m large-profile beam and any additional accessories fitted.
FAAC specifies a fixed fork support or suitable beam support for barrier lengths exceeding 4m. Additional safety devices, including photocells and induction loops, should be selected according to the installation's risk assessment.
The B680H also supports optional beam lighting, battery backup and traffic management accessories.
| Brand | FAAC |
|---|---|
| SKU | B680L5MKIT |
| Model | B680 |
| Automation For | Vehicle Barrier |
| Type of Operator | Hybrid |
| Voltage | 24V |
| Warranty | 3 Years |
