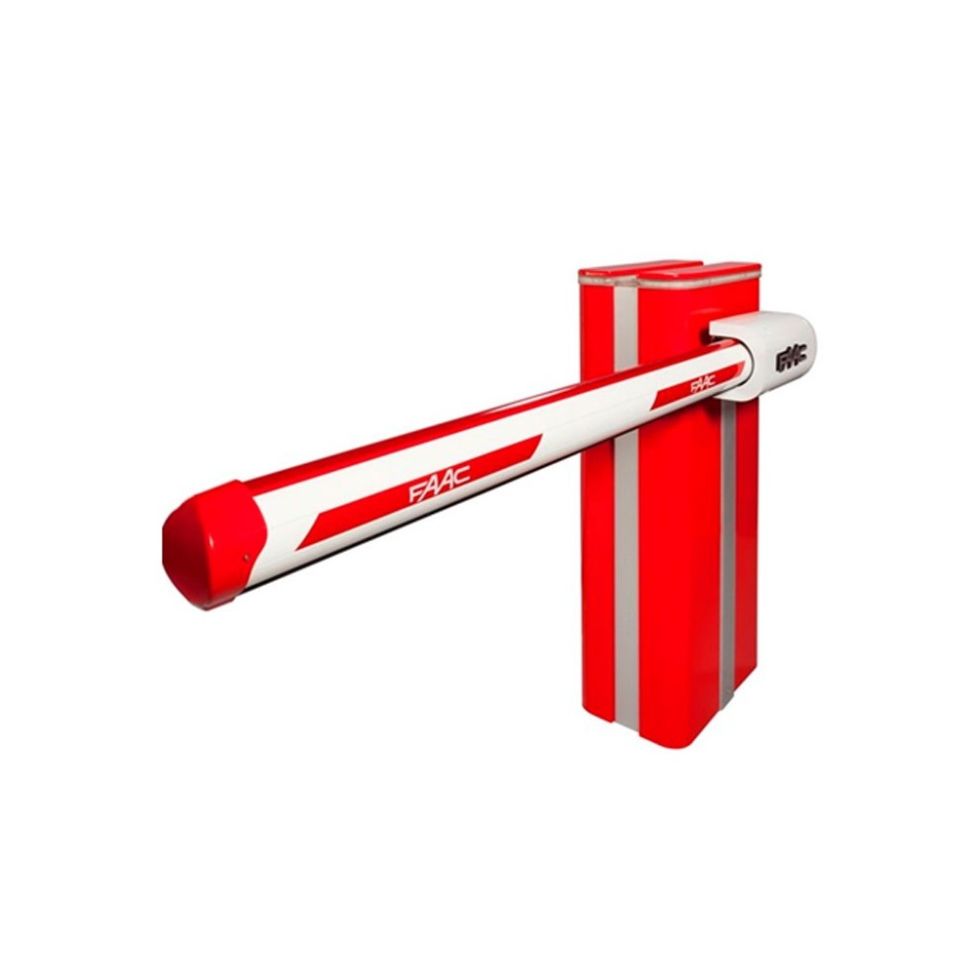

The FAAC B680H Standard Large 6m Beam Kit is a heavy-duty automatic barrier system designed for commercial, industrial and high-usage vehicle entrances.
The B680H combines FAAC hydraulic technology with a 24V system to provide reliable continuous-duty operation. This 6m version uses FAAC's large-profile modular barrier beam, making it suitable for wider entrances where a standard small beam configuration is not appropriate.
An integrated absolute encoder provides accurate movement control and obstacle detection, while the integrated E680 control board includes two built-in loop detectors for connection of vehicle detection loops without requiring separate loop detector modules.
Opening and closing speeds can be electronically adjusted to suit the installation. The B680H can also be configured for either left or right-hand operation, simplifying specification and installation.
For replacement projects, the B680H is compatible with existing FAAC 620 and 640 baseplates, making it a useful upgrade option for older FAAC barrier installations where the existing foundation arrangement remains suitable.
Manufacturer: FAAC
Model: B680H
Product Type: Automatic vehicle barrier kit
Beam Length: 6m
Beam Type: Large profile / modular
Power Supply: 24V
Drive Type: Hydraulic / hybrid technology
Use Frequency: Continuous
Obstacle Detection: Integrated absolute encoder
Control Board: Integrated E680
Loop Detectors: 2 integrated
Speed: Electronically adjustable
Handing: Left or right-hand installation
Baseplate Compatibility: FAAC 620 and 640 baseplates
Application: Commercial and industrial vehicle access
1 x FAAC B680H Barrier Operator
1 x B680 RAL3020 Red Cover
1 x B680 Base Plate
1 x B680 Large Beam Pocket & Balancing Spring
B680 Large-Profile Modular Beam Sections for 6m Configuration
B680 Large Beam Joint
B680/B614 Reflective Beam Stickers
The 6m B680H uses FAAC's large-profile beam and requires the correct spring and balancing configuration for the completed barrier arm.

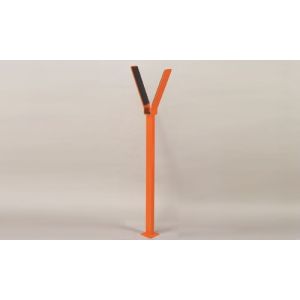

For longer beam installations, the appropriate end support should be considered to support the arm in the closed position.
When replacing an existing FAAC 620 or 640 barrier, confirm that the existing baseplate and foundation are suitable before installation.
| Brand | FAAC |
|---|---|
| SKU | B680L6MKIT |
| Model | B680 |
| Automation For | Vehicle Barrier |
| Type of Operator | Hybrid |
| Voltage | 24V |
| Warranty | 3 Years |
