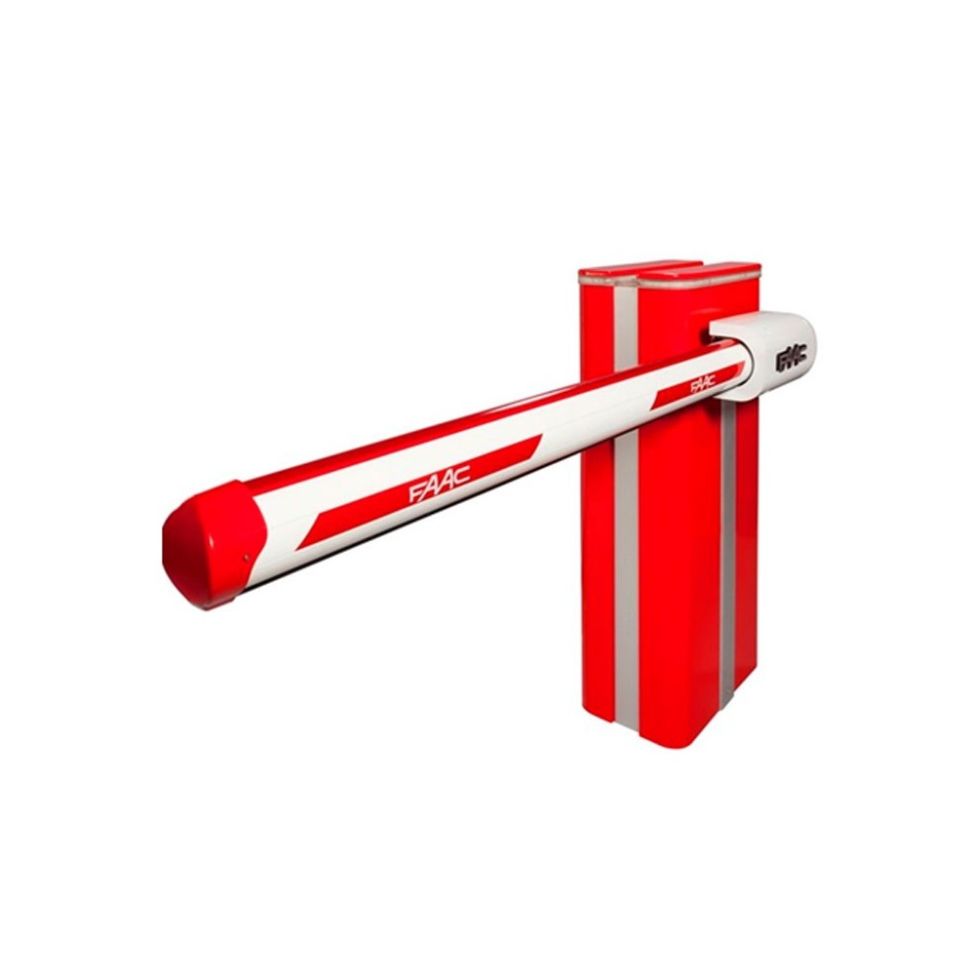

Click Here To Enlarge This Photo Of FAAC B680 Standard Large 7m Beam Kit

FAAC B680 Standard Large 7m Beam Kit

Add To Favourites
FAAC
£3,447.00 Ex. VAT(£4,136.40 Inc. VAT)

In Stock

(From 1 Reviews)

Description

The FAAC B680 Standard Large 7m Beam Kit is designed for use with the FAAC B680H automatic barrier system, providing a robust replacement beam assembly for wide commercial and industrial vehicle entrances.

The large-profile aluminium beam is suitable for installations requiring a barrier span of up to 7 metres. Its sectional construction makes transportation, handling and installation easier, particularly where access is restricted.

Ideal for replacing damaged barrier beams or configuring an existing FAAC B680H barrier for a 7m entrance.

Key Specifications

  • Manufacturer: FAAC

  • Model: B680H Standard Large

  • SKU: B680L7MKIT

  • Barrier length: 7m

  • Beam profile: Large, 109 x 85mm

  • Power supply: 100–240V AC, 50/60Hz

  • Motor: 36V DC brushless hydraulic system

  • Power consumption: 240W

  • Duty cycle: 100% continuous use

  • Control board: Integrated E680

  • Safety: Absolute encoder with obstacle detection

  • Loop detectors: Two integrated channels

  • Protection rating: IP56

  • Operating temperature: -20°C to +55°C

  • Barrier dimensions: 469 x 279 x 1100mm

What's Included

  • 1 x FAAC B680H Barrier Body (104680)

  • 1 x Red Barrier Cover, RAL3020 (416016)

  • 1 x Foundation Base Plate (490139)

  • 1 x Large Beam Pocket and Balancing Spring (428437)

  • 1 x 4m Large Initial Beam Section (428048)

  • 1 x 3.3m Large Beam Extension (428050)

  • 1 x Large Beam Joint (428616)

  • 5 x Packs of Reflective Beam Stickers (490117)

  • Integrated E680 Control Board

Installer Note

The FAAC B680H supports left or right-hand installation, with adjustable opening and closing speeds. The 7m beam is supplied in two sections and requires correct balancing during commissioning.

FAAC specifies a fixed fork support or suitable beam support for barrier lengths exceeding 4m. Additional safety devices should be selected following a site-specific risk assessment.

MPN:

B680L7MKIT

SKU:

B680L7MKIT
Specification
BrandFAAC
SKUB680L7MKIT
ModelB680
Automation ForVehicle Barrier
Type of OperatorHybrid
Voltage24V
Warranty3 Years
Reviews

Motors arrived the next day, great service as always.
