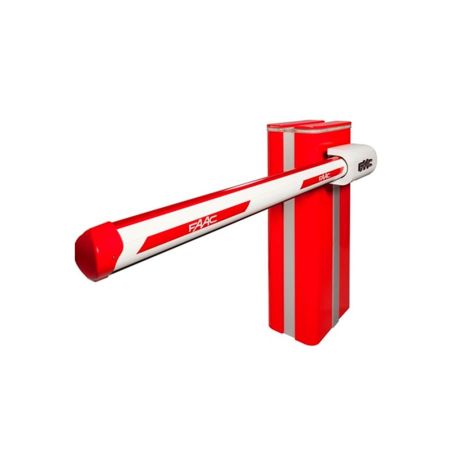

Click Here To Enlarge This Photo Of FAAC B680 Standard Small 2m Automatic Barrier Kit

FAAC B680 Standard Small 2m Automatic Barrier Kit

Add To Favourites
FAAC
£2,756.00 Ex. VAT(£3,307.20 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC B680 Standard Small 2m Barrier Kit is a hydraulic automatic traffic barrier designed for commercial car parks, private entrances and controlled vehicle access points.

Combining a 36V brushless motor with hydraulic transmission, the FAAC B680H delivers fast, smooth and reliable operation, even at busy entrances requiring continuous use.

The kit features a 2m small-profile aluminium beam and an integrated E680 control board with built-in loop detection. An absolute encoder provides obstacle detection and controlled deceleration, while adjustable opening and closing speeds allow the barrier to be configured for individual site requirements.

Ideal for shorter vehicle entrances where reliable access control and frequent operation are essential.

Key Specifications

  • Manufacturer: FAAC

  • Model: B680H Standard Small

  • Barrier Type: Hydraulic automatic traffic barrier

  • Beam Length: 2m

  • Beam Profile: Small-profile aluminium

  • Power Supply: 100–240V AC, 50/60Hz

  • Motor Voltage: 36V DC brushless

  • Maximum Power Consumption: 240W

  • Opening Time: Adjustable according to beam configuration

  • Duty Cycle: 100% continuous operation

  • Control Board: Integrated E680

  • Obstacle Detection: Integrated absolute encoder

  • Loop Detection: Two integrated channels

  • Protection Rating: IP56

  • Operating Temperature: -20°C to +55°C

  • Barrier Dimensions: 469 x 279 x 1100mm

  • Installation: Left or right-hand configuration

What's Included

  • 1 x FAAC B680H Hydraulic Barrier Body

  • 1 x Integrated E680 Control Board

  • 1 x Protective Barrier Housing

  • 1 x Foundation Base Plate

  • 1 x Small Beam Bracket and Balancing Spring Assembly

  • 1 x 2m Small-Profile Aluminium Barrier Beam

  • Reflective Beam Stickers

Installer Note

The FAAC B680H supports both left and right-hand installation. The balancing spring must be correctly selected and adjusted for the 2m small-profile beam and any additional accessories fitted.

The integrated loop detector channels allow vehicle detection loops to be connected without separate detector modules.

Photocells and other safety devices should be specified following a site-specific risk assessment. Optional accessories include beam lighting, battery backup and access control equipment.

MPN:

B680S2MKIT

SKU:

B680S2MKIT
Specification
BrandFAAC
SKUB680S2MKIT
ModelB680
Automation ForVehicle Barrier
Type of OperatorHybrid
Voltage24V
Warranty3 Years
