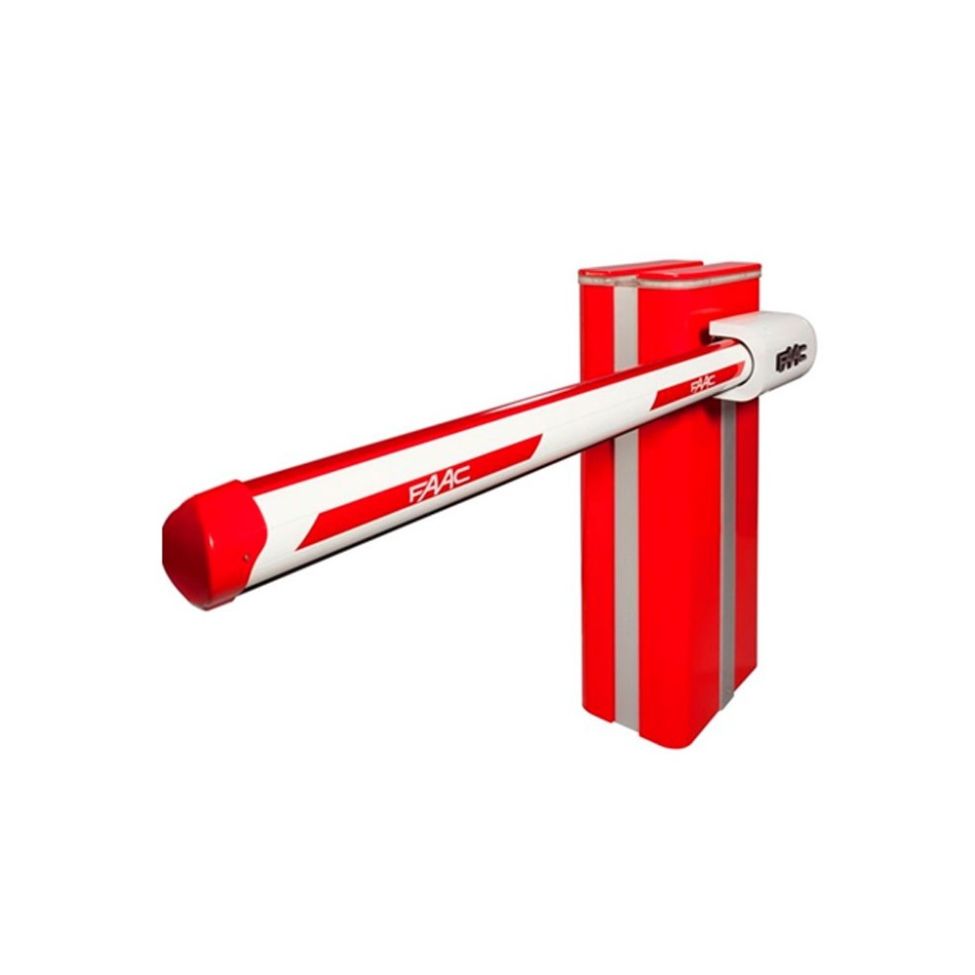

The FAAC B680 Standard Small 4m Barrier Kit is a heavy-duty automatic traffic barrier designed for commercial car parks, industrial premises and controlled vehicle entrances.
Powered by a 36V brushless motor with hydraulic transmission, the FAAC B680H provides smooth, reliable operation for busy entrances requiring frequent or continuous use.
The kit features a 4m small-profile aluminium barrier beam and an integrated E680 control board with built-in loop detection. An absolute encoder provides obstacle detection and controlled deceleration, while adjustable opening and closing speeds allow the barrier to be configured for different site requirements.
Suitable for new installations or replacing an existing FAAC automatic barrier system.
Manufacturer: FAAC
Model: B680H Standard Small
Barrier Type: Hydraulic automatic traffic barrier
Beam Length: 4m
Beam Profile: Small-profile aluminium
Power Supply: 100–240V AC, 50/60Hz
Motor Voltage: 36V DC brushless
Maximum Power Consumption: 240W
Opening Time: Adjustable according to beam configuration
Duty Cycle: 100% continuous operation
Control Board: Integrated E680
Obstacle Detection: Integrated absolute encoder
Loop Detection: Two integrated channels
Protection Rating: IP56
Operating Temperature: -20°C to +55°C
Barrier Dimensions: 469 x 279 x 1100mm
Installation: Left or right-hand configuration
1 x FAAC B680H Hydraulic Barrier Body
1 x Integrated E680 Control Board
1 x Protective Barrier Housing
1 x Foundation Base Plate
1 x Small Beam Bracket and Balancing Spring Assembly
1 x 4m Small-Profile Aluminium Barrier Beam
Reflective Beam Stickers
The FAAC B680H supports both left and right-hand installation. The balancing spring must be correctly selected and adjusted for the 4m small-profile beam and any additional accessories.
The integrated loop detector channels allow vehicle detection loops to be connected without a separate loop detector module.
Photocells and other safety devices should be specified following a site-specific risk assessment. Optional accessories include beam lighting, battery backup and fork supports.
| Brand | FAAC |
|---|---|
| SKU | B680S4MKIT |
| Model | B680 |
| Automation For | Vehicle Barrier |
| Type of Operator | Hybrid |
| Voltage | 24V |
| Warranty | 3 Years |
