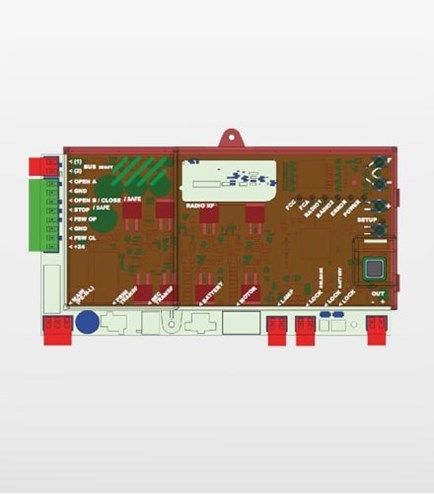

FAAC E721 Electronic Control Unit

£215.78 £179.82
In stock
FAAC E721 Electronic Control Unit at the best price online. Call for trade prices.

FAAC E 721 Electronic Control Unit

Part No:  63002485

Note: Price is for control board only

Technical Specifications

Power supply voltage

230 Vac (+6% -10%) 50 Hz

Absorbed power

10 W

Max. motor load

10 A

Accessory power supply

24 Vdc

Accessory max. current

500 mA

Operating ambient temperature

-20°C to +55°C

Protection fuses

F1= TIA-250V~

Function logics

Automatic (A)/Automatic (A1)/Semi-automatic (E)/Automatic Timer (At)/Automatic with reverse Pause(SA)/Parking automatic (AP)/Dead man (C)/Automatic safety (S)/"Stepped" safety (SP)/"Stepped" semi-automatic (EP)/Semi-automatic (B)/Mixed logic (BC)

Work time

Programmable (from 0 to 9 min and 50 sec)

Pause time

Programmable (from 0 to 9 min and 50 sec)

Motor power

Programmable over 50 levels


BUS 2 Easy 5 inputs (open A, open B/close, stop, safety device at opening, safety device at closure) Stop or Open B/Close can be programmed as safety edge inputs.


1 programmable output 24V, 100mA (fail-safe, alarm, indicator light, courtesy light, activated with 2-channel radio), flashing lamp

Rapid connectors

OMNIDEC (XF 433 or XF 868)


3 keys (+,-,F) and LCD display

Programmable functions

Logic, Pause time A, Pause time B, Thrust, Opening speed, Closing speed, Deceleration spaces, Pre-flashing, Opening safety devices logic, Closing safety devices logic, Obstacle sensitivity, Partial opening, cycle counter, master & slave function


Programmable over 10 levels
