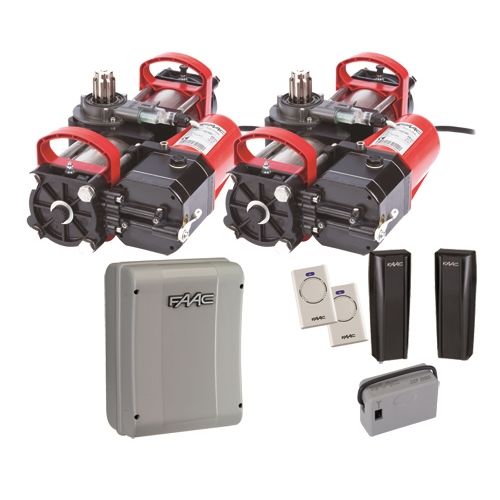

Click Here To Enlarge This Photo Of FAAC S800 230V CBAC Double Underground Swing Gate Kit

FAAC S800 230V CBAC Double Underground Swing Gate Kit

Add To Favourites
FAAC
£2,473.00 Ex. VAT(£2,967.60 Inc. VAT)

In Stock

(From 1 Reviews)

Description

The FAAC S800 230V CBAC Double Kit is a hydraulic underground gate automation system designed for residential and commercial double swing gates.

Suitable for gate leaves up to 2 metres long and weighing up to 800kg each, the S800 provides powerful hydraulic operation while keeping the automation concealed beneath ground level. This makes it particularly suitable for decorative steel gates, timber gates and entrances where maintaining the appearance of the gates is important.

The CBAC version features hydraulic locking in both opening and closing positions, helping to hold the gates securely without additional electric locking on suitable installations.

The underground hydraulic operators provide smooth, controlled gate movement, while the integrated positive stops allow the opening and closing positions to be adjusted during installation.

Unlike the S800 ENC version, this standard CBAC model does not incorporate the absolute magnetic encoder. The automation is therefore configured using the appropriate control board settings and conventional safety devices.

Supplied with two hydraulic underground operators, foundation boxes, a control board and automation accessories, this kit provides a complete starting point for automating a pair of swing gates.

Key Specifications

  • Manufacturer: FAAC

  • Model: S800 CBAC 100°

  • Automation Type: Double Swing Gate

  • Operator Type: Underground Hydraulic

  • Power Supply: 230V AC, 50/60Hz

  • Maximum Gate Weight: 800kg per leaf

  • Maximum Gate Leaf Length: 2m per leaf

  • Opening Angle: 100° nominal

  • Maximum Angular Speed: Approximately 7.8° per second

  • Maximum Operating Frequency: Up to 45 cycles per hour

  • Motor Type: Single-Phase Asynchronous

  • Motor Power: 220W

  • Hydraulic Locking: Opening and Closing

  • Encoder: Not Included

  • Control Board: FAAC 455D (subject to kit configuration)

  • Protection Rating: IP67

  • Operating Temperature: -20°C to +55°C

  • Hydraulic Oil: FAAC HP Oil

What's Included

  • 2 x FAAC S800 CBAC 100° Underground Hydraulic Operators

  • 2 x FAAC S800 Foundation Boxes

  • 2 x FAAC S800 Collar Assemblies

  • 2 x FAAC S800 Manual Release Systems

  • 1 x FAAC Control Board

  • 1 x Control Board Housing

  • 1 x FAAC Plug-In Radio Receiver

  • 1 x Pair of FAAC Photocells

  • 2 x FAAC Radio Transmitters

Additional safety devices, cabling and installation materials are not included unless otherwise specified.

Installer Note

The FAAC S800 CBAC is suitable for double swing gates up to 2 metres long and weighing up to 800kg per leaf, subject to gate geometry and installation conditions.

The CBAC hydraulic locking system holds the gates in both opening and closing positions. The integrated positive stops assist with setting the required gate travel limits.

This is the standard S800 CBAC version without an integrated encoder. Installers requiring encoder-based position monitoring should select the S800 ENC CBAC version with a compatible control board.

The underground foundation boxes require suitable concrete foundations and adequate drainage to prevent water accumulation around the operators.

All installations must be individually risk assessed, with appropriate photocells, safety edges and other protective measures fitted where required.

MPN:

S800CBAC230D

SKU:

S800CBAC230D
Specification
BrandFAAC
SKUS800CBAC230D
ModelS800
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)2m
Warranty3 Years
