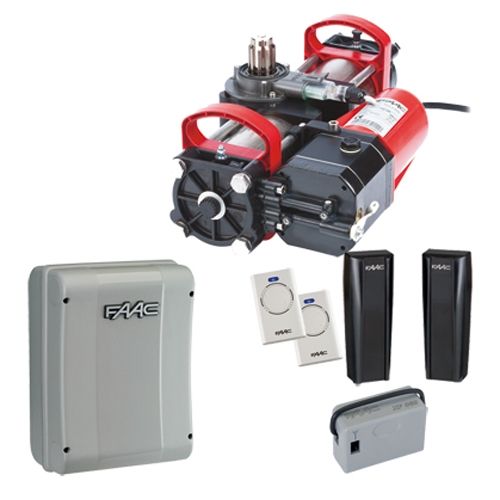

Click Here To Enlarge This Photo Of FAAC S800 230V CBAC Single Underground Hydraulic Swing Gate Kit – 2m / 800kg

FAAC S800 230V CBAC Single Underground Hydraulic Swing Gate Kit – 2m / 800kg

Add To Favourites
FAAC
£1,512.00 Ex. VAT(£1,814.40 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC S800 230V CBAC Single Kit is an underground hydraulic gate automation system designed for single swing gates up to 2 metres wide and weighing up to 800kg. It provides a concealed, heavy-duty automation solution for residential driveways and commercial entrances where reliable operation and a discreet installation are important.

The kit uses the FAAC S800 CBAC hydraulic operator, which is installed beneath the gate hinge to keep the motor hidden from view. This makes it particularly suitable for decorative wrought iron gates, bespoke steel gates and traditional timber entrances where exposed automation equipment would detract from the finished appearance.

The CBAC operator incorporates hydraulic locking in both the opening and closing positions, helping hold the gate firmly when stationary. This distinguishes it from the S800 SBW version, which operates without hydraulic locking and is designed to accommodate longer gate leaves.

Its oil-bath hydraulic mechanism delivers smooth, controlled movement, while integrated mechanical stops allow the opening and closing positions to be adjusted during installation. The 230V motor is suited to substantial swing gates where hydraulic power and dependable operation are required.

Supplied as a single-gate automation kit, the FAAC S800 CBAC provides the main components needed to automate one swing gate, including the underground operator, foundation box and electronic control equipment.

Kit Contents

  • 1 × FAAC S800 CBAC 230V 100° Hydraulic Operator (1088002)

  • 1 × FAAC S800 Underground Foundation Box (490112)

  • 1 × FAAC S800 Lever Manual Release (390878)

  • 1 × FAAC E145S Control Board (790076)

  • 1 × FAAC Model E Control Board Housing (720119)

  • 1 × FAAC XF 868 SLH Plug-in Receiver (787832)

  • 1 Pair × FAAC XP20B D BUS Photocells (785103)

  • 2 × FAAC XT2 868 SLH LR Two-Button Transmitters (787009)

Technical Specifications

  • Manufacturer: FAAC

  • Model: S800 230V CBAC Single Kit

  • Kit SKU: S800CBAC230S

  • Operator Code: 1088002

  • Motor Supply: 220–240V AC, 50/60Hz

  • Motor Type: Single-phase hydraulic

  • Maximum Gate Weight: 800kg

  • Maximum Gate Leaf Length: 2m

  • Opening Configuration: 100°

  • Hydraulic Locking: Opening and closing (CBAC)

  • Encoder: Not included

  • Mechanical Stops: Integrated

  • Hydraulic Oil: FAAC HP Oil

  • Protection Rating: IP67

  • Operating Temperature: -20°C to +55°C

  • Control Board: FAAC E145S

  • Installation: Underground

  • Gate Configuration: Single swing gate

Useful Information

CBAC vs SBW: The CBAC operator incorporates hydraulic locking in both directions and supports gate leaves up to 2m. The SBW version operates without hydraulic locking and accommodates leaves up to 4m.

Encoder Alternative: This kit is specified with the standard S800 CBAC operator (1088002). The encoder-equipped equivalent is the S800 ENC CBAC (108800), which provides BUS 2easy gate position feedback.

Opening Angle: The standard kit uses the 100° operator. A 180° CBAC operator is available separately for entrances requiring a wider opening angle.

MPN:

S800CBAC230S

SKU:

S800CBAC230S
Specification
BrandFAAC
SKUS800CBAC230S
ModelS800
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitSingle
Voltage230V
Max. Width of Gate (m)2m
Warranty3 Years
