The FAAC S800 230V ENC CBAC Double Kit is a hydraulic underground gate automation system designed for residential and commercial double swing gates.
Suitable for gates weighing up to 800kg per leaf and measuring up to 2 metres per leaf, the S800 combines powerful hydraulic operation with discreet underground installation. This makes it particularly suitable for decorative steel gates, timber gates and entrances where maintaining the appearance of the gates is important.
Each operator incorporates an absolute magnetic encoder with FAAC BUS 2easy technology, providing accurate gate position monitoring and supporting the safety functions of the E145S control board.
The CBAC version features hydraulic locking in both opening and closing positions, helping to hold the gates securely without additional electric locking on suitable installations. Integrated positive stops allow the opening and closing positions to be adjusted without separate ground-mounted mechanical stops, subject to installation requirements.
Supplied with two 100° underground hydraulic operators, foundation boxes, an E145S control board and automation accessories, this kit provides a comprehensive solution for automating a pair of swing gates.
Manufacturer: FAAC
Model: S800 ENC CBAC 100°
Kit Reference: S800ECBAC230D
Operator Part Number: 108800
Automation Type: Double Swing Gate
Operator Type: Underground Hydraulic
Power Supply: 220–240V AC, 50/60Hz
Maximum Gate Weight: 800kg per leaf
Maximum Gate Leaf Length: 2m per leaf
Opening Angle: 100° nominal
Maximum Angular Speed: 7.8° per second
Maximum Operating Frequency: 45 cycles per hour
Motor Type: Single-Phase Asynchronous
Motor Power: 220W
Hydraulic Locking: Opening and Closing
Encoder: Absolute Magnetic Encoder
Control Board: FAAC E145S
Protection Rating: IP67
Operating Temperature: -20°C to +55°C
Hydraulic Oil: FAAC HP Oil

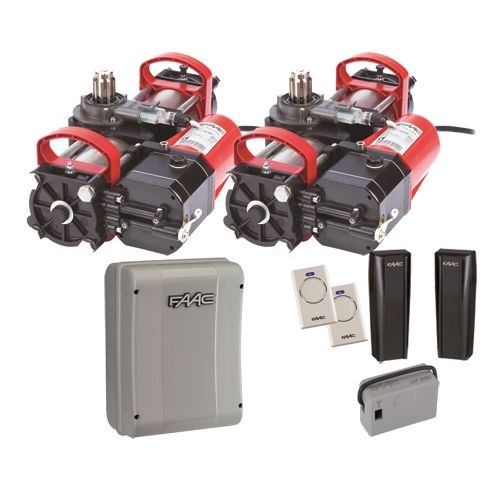

2 x FAAC S800 ENC CBAC 100° Underground Hydraulic Operators – 108800
2 x FAAC S800 Foundation Boxes – 490112
2 x FAAC S800 Collar Assemblies – 390972
2 x FAAC S800 Lever Manual Release Systems – 390878
1 x FAAC E145S Control Board – 790076
1 x FAAC Model E Control Board Housing – 720119
1 x FAAC XF 868 SLH Plug-In Receiver – 787832
1 x Pair of FAAC XP20B D BUS Photocells – 785103
2 x FAAC XT2 868 SLH LR Two-Button Transmitters – 787009
Additional safety devices, cabling and installation materials are not included unless otherwise specified.
The FAAC S800 ENC CBAC is suitable for double swing gates up to 2 metres long and weighing up to 800kg per leaf, subject to gate geometry and installation conditions.
The CBAC version incorporates hydraulic locking in both directions, while the integrated positive stops simplify the setting of opening and closing positions.
The underground foundation boxes require suitable concrete foundations and adequate drainage to prevent water accumulation around the operators.
The supplied E145S control board supports the integrated encoder system and compatible FAAC BUS 2easy safety accessories.
All installations must be individually risk assessed, with appropriate photocells, safety edges and other protective measures fitted where required.
| Brand | FAAC |
|---|---|
| SKU | S800ECBAC230D |
| Model | S800 |
| Automation For | Swing Gate |
| Operator | Underground |
| Type of Operator | Hydraulic |
| Double / Single Kit | Double |
| Voltage | 230V |
| Max. Width of Gate (m) | 2m |
| Warranty | 3 Years |
