Click Here To Enlarge This Photo Of FAAC S800 230V ENC CBAC Single Underground Hydraulic Swing Gate Kit – 2m / 800kg

FAAC S800 230V ENC CBAC Single Underground Hydraulic Swing Gate Kit – 2m / 800kg

Add To Favourites
FAAC
£1,537.00 Ex. VAT(£1,844.40 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC S800 230V ENC CBAC Single Kit is a complete underground hydraulic gate automation system designed for single swing gates up to 2 metres wide and weighing up to 800kg. Combining FAAC's S800 hydraulic operator with integrated encoder technology, it provides powerful, controlled automation for residential driveways and light commercial entrances.

The S800 operator is installed beneath the gate hinge, keeping the automation concealed below ground level. This makes it particularly suitable for bespoke steel gates, traditional timber gates and decorative wrought iron entrances where visible motors would detract from the finished appearance.

The CBAC configuration incorporates hydraulic locking in both the opening and closing positions, helping hold the gate securely when stationary. Unlike the SBW version, which accommodates longer gate leaves without hydraulic locking, the CBAC operator is designed for gates up to 2 metres wide.

An integrated absolute magnetic encoder communicates through FAAC's BUS 2easy system, providing accurate gate position feedback to the compatible control board. This allows more precise movement management and supports obstacle detection and safety functions.

The hydraulic mechanism delivers consistent movement, while integrated mechanical stops allow the opening and closing positions to be adjusted without separate ground-mounted stops in suitable installations.

Supplied with the underground foundation box, electronic control equipment and access control accessories, the FAAC S800 ENC CBAC Single Kit provides a discreet, robust solution for automating one swing gate.

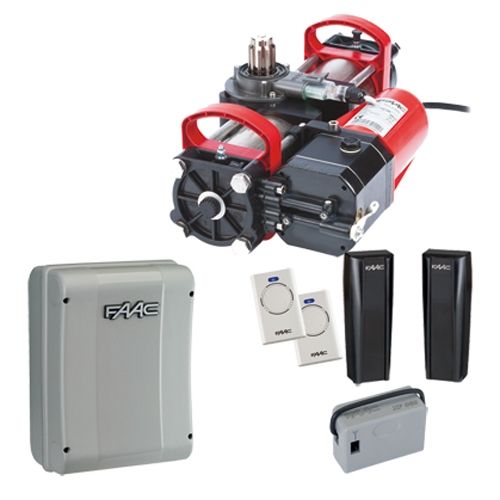

Kit Contents

  • 1 × FAAC S800 ENC CBAC 230V 100° Hydraulic Operator (108800)

  • 1 × FAAC S800 Underground Foundation Box (490112)

  • 1 × FAAC S800 Collar Assembly (390972)

  • 1 × FAAC S800 Lever Manual Release (390878)

  • 1 × FAAC E145S Control Board (790076)

  • 1 × FAAC Model E Control Board Housing (720119)

  • 1 × FAAC XF 868 SLH Plug-in Receiver (787832)

  • 1 Pair × FAAC XP20B D BUS Photocells (785103)

  • 2 × FAAC XT2 868 SLH LR Two-Button Transmitters (787009)

Technical Specifications

  • Manufacturer: FAAC

  • Model: S800 ENC CBAC 230V Single Kit

  • Kit SKU: S800ECBAC230S

  • Operator Code: 108800

  • Motor Supply: 220–240V AC, 50/60Hz

  • Motor Type: Single-phase hydraulic

  • Maximum Gate Weight: 800kg

  • Maximum Gate Leaf Length: 2m

  • Opening Configuration: 100°

  • Maximum Opening Angle: 113°

  • Maximum Motor Power: 220W

  • Maximum Angular Speed: 7.8°/second

  • Hydraulic Locking: Opening and closing (CBAC)

  • Encoder: Absolute magnetic encoder, BUS 2easy

  • Operating Frequency: 45 cycles/hour

  • Mechanical Stops: Integrated

  • Hydraulic Oil: FAAC HP Oil

  • Protection Rating: IP67

  • Operating Temperature: -20°C to +55°C

  • Control Board: FAAC E145S

  • Installation: Underground

  • Gate Configuration: Single swing gate

Useful Information

CBAC vs SBW: The CBAC operator provides hydraulic locking in both directions and supports gate leaves up to 2m. The SBW version operates without hydraulic locking and accommodates leaves up to 4m.

Encoder Version: This kit includes the S800 ENC CBAC operator (108800), featuring FAAC's BUS 2easy absolute magnetic encoder. The non-encoder equivalent is operator code 1088002.

Opening Angle: The standard kit includes the 100° operator. For installations requiring a wider opening angle, the S800 ENC CBAC 180° operator is available under product code 108801.

MPN:

S800ECBAC230S

SKU:

S800ECBAC230S
Specification
BrandFAAC
SKUS800ECBAC230S
ModelS800
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)4m
Warranty3 Years
