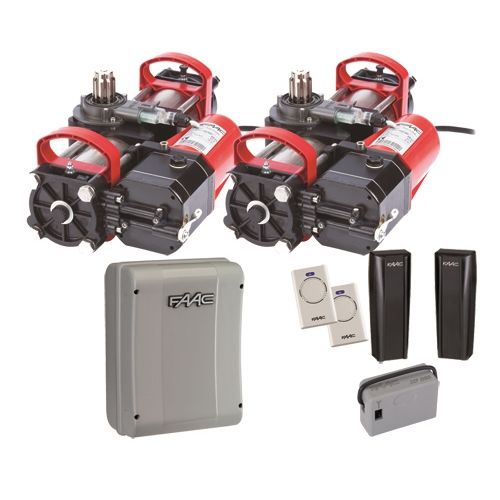

Click Here To Enlarge This Photo Of FAAC S800 230V ENC SBW Double Underground Swing Gate Kit

FAAC S800 230V ENC SBW Double Underground Swing Gate Kit

Add To Favourites
FAAC
£2,279.00 Ex. VAT(£2,734.80 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC S800 230V ENC SBW Double Kit is a hydraulic underground gate automation system designed for residential and light commercial double swing gates.

Suitable for gates weighing up to 800kg per leaf and measuring up to 4 metres per leaf, the S800 provides powerful hydraulic operation while keeping the automation concealed beneath ground level. This makes it particularly suitable for larger decorative steel gates, timber gates and entrances where maintaining the appearance of the gates is important.

Each operator incorporates an absolute magnetic encoder with FAAC BUS 2easy technology, providing accurate gate position monitoring and supporting the safety functions of the E145S control board.

The SBW version is hydraulically non-locking, allowing the gates to be moved manually when the automation is not operating. Unlike the CBAC version, which provides hydraulic locking, the SBW model requires a suitable electric lock to secure the gates in the closed position.

Integrated positive stops allow the opening and closing positions to be adjusted without separate ground-mounted mechanical stops, subject to installation requirements.

Supplied with two 100° underground hydraulic operators, foundation boxes, an E145S control board and automation accessories, this double kit provides a comprehensive solution for automating larger swing gates.

Key Specifications

  • Manufacturer: FAAC

  • Model: S800 ENC SBW 100°

  • Kit Reference: S800ESBW230D

  • Operator Part Number: 108802

  • Automation Type: Double Swing Gate

  • Operator Type: Underground Hydraulic

  • Power Supply: 220–240V AC, 50/60Hz

  • Maximum Gate Weight: 800kg per leaf

  • Maximum Gate Leaf Length: 4m per leaf

  • Opening Angle: 100° nominal

  • Maximum Angular Speed: 7.8° per second

  • Maximum Operating Frequency: 45 cycles per hour

  • Motor Type: Single-Phase Asynchronous

  • Maximum Motor Power: 220W

  • Hydraulic Locking: Non-Locking (SBW)

  • Electric Lock: Required

  • Encoder: Absolute Magnetic Encoder

  • Encoder Technology: FAAC BUS 2easy

  • Control Board: FAAC E145S

  • Protection Rating: IP67

  • Operating Temperature: -20°C to +55°C

  • Hydraulic Oil: FAAC HP Oil

What's Included

  • 2 x FAAC S800 ENC SBW 100° Underground Hydraulic Operators – 108802

  • 2 x FAAC S800 Foundation Boxes – 490112

  • 2 x FAAC S800 Collar Assemblies – 390972

  • 1 x FAAC E145S Control Board – 790076

  • 1 x FAAC Model E Control Board Housing – 720119

  • 1 x FAAC XF 868 SLH Plug-In Receiver – 787832

  • 1 x Pair of FAAC XP20B D BUS Photocells – 785103

  • 2 x FAAC XT2 868 SLH LR Two-Button Transmitters – 787009

Electric lock, additional safety devices, cabling and installation materials are not included unless otherwise specified.

Installer Note

The FAAC S800 ENC SBW is suitable for double swing gates up to 4 metres long and weighing up to 800kg per leaf, subject to gate geometry, wind loading and installation conditions.

The SBW version does not provide hydraulic locking. A suitable electric lock is required to secure the gates when closed. Installers requiring hydraulic locking should consider the S800 ENC CBAC version, which is designed for gate leaves up to 2 metres long.

The integrated absolute magnetic encoders provide gate position feedback to the E145S control board, supporting accurate movement control and compatible safety functions.

The underground foundation boxes require suitable concrete foundations and adequate drainage to prevent water accumulation around the operators.

The supplied operators are the standard 100° version. FAAC also offers a 180° SBW version for installations requiring a wider opening angle.

All installations must be individually risk assessed, with appropriate photocells, safety edges and other protective measures fitted where required.

MPN:

S800ESBW230D

SKU:

S800ESBW230D
Specification
BrandFAAC
SKUS800ESBW230D
ModelS800
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)4m
Warranty3 Years
