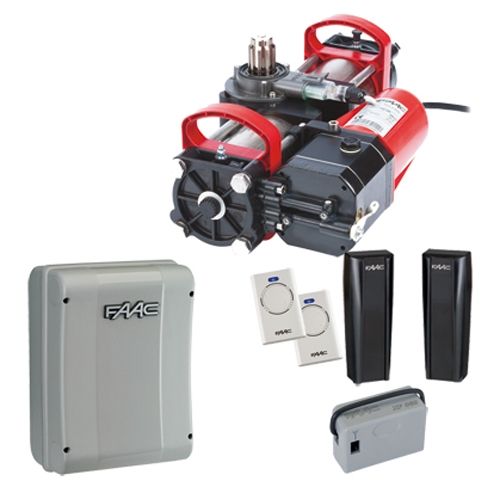

Click Here To Enlarge This Photo Of FAAC S800 230V ENC SBW Single Underground Hydraulic Swing Gate Kit – 4m / 800kg

FAAC S800 230V ENC SBW Single Underground Hydraulic Swing Gate Kit – 4m / 800kg

Add To Favourites
FAAC
£1,416.00 Ex. VAT(£1,699.20 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC S800 230V ENC SBW Single Kit is an underground hydraulic gate automation system designed for single swing gates up to 4 metres wide and weighing up to 800kg. Combining FAAC's established S800 hydraulic operator with integrated encoder technology, it provides a concealed automation solution for substantial residential and commercial gates.

The S800 operator is installed beneath the gate hinge, leaving the motor hidden from view. This makes it particularly suitable for bespoke metal gates, traditional timber gates and entrances where visible automation equipment would detract from the gate design.

The SBW configuration operates without hydraulic locking, allowing it to accommodate longer gate leaves than the CBAC version. Its hydraulic drive provides smooth, controlled movement, while integrated mechanical stops allow accurate adjustment of the gate's opening and closing positions.

Unlike the standard S800 SBW operator, the ENC version incorporates an absolute magnetic encoder with FAAC BUS 2easy communication. When connected to compatible FAAC control equipment, this provides continuous gate position monitoring, supporting obstacle detection and more precise movement control.

Supplied as a single-gate automation kit, the FAAC S800 230V ENC SBW provides the principal components required to automate one swing gate, combining the strength of hydraulic operation with the additional control offered by encoder technology.

Kit Contents

  • 1 × FAAC S800 ENC SBW 230V 100° Hydraulic Operator (108802)

  • 1 × FAAC S800 Underground Foundation Box (490112)

  • 1 × FAAC S800 Collar Assembly (390972)

  • 1 × FAAC E145S Control Board (790076)

  • 1 × FAAC Model E Control Board Housing (720119)

  • 1 × FAAC XF 868 SLH Plug-in Receiver (787832)

  • 1 Pair × FAAC XP20B D BUS Photocells (785103)

  • 2 × FAAC XT2 868 SLH LR Two-Button Transmitters (787009)

Technical Specifications

  • Manufacturer: FAAC

  • Model: S800 ENC SBW 230V Single Kit

  • Kit SKU: S800ESBW230S

  • Operator Code: 108802

  • Power Supply: 220–240V AC, 50/60Hz

  • Motor Type: Single-phase hydraulic

  • Maximum Gate Weight: 800kg

  • Maximum Gate Leaf Length: 4m

  • Opening Configuration: 100°

  • Maximum Opening Angle: 113°

  • Maximum Motor Power: 220W

  • Maximum Angular Speed: 7.8°/second

  • Hydraulic Locking: No (SBW)

  • Encoder: Absolute magnetic encoder, BUS 2easy

  • Operating Frequency: 45 cycles/hour

  • Mechanical Stops: Integrated

  • Hydraulic Oil: FAAC HP Oil

  • Protection Rating: IP67

  • Operating Temperature: -20°C to +55°C

  • Control Board: FAAC E145S

  • Installation: Underground

  • Gate Configuration: Single swing gate

Useful Information

SBW vs CBAC: The SBW operator accommodates leaves up to 4m but does not provide hydraulic locking. A suitable electric lock should be specified where required; it is not included in the standard kit.

Encoder Version: This kit uses the S800 ENC SBW operator (108802), incorporating FAAC's absolute magnetic encoder. The standard non-encoder equivalent is 1088022.

Opening Angle: This kit includes the 100° operator. The 180° encoder-equipped alternative is available separately under operator code 108803.

MPN:

S800ESBW230S

SKU:

S800ESBW230S
Specification
BrandFAAC
SKUS800ESBW230S
ModelS800
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitSingle
Voltage230V
Max. Width of Gate (m)4m
Warranty3 Years
