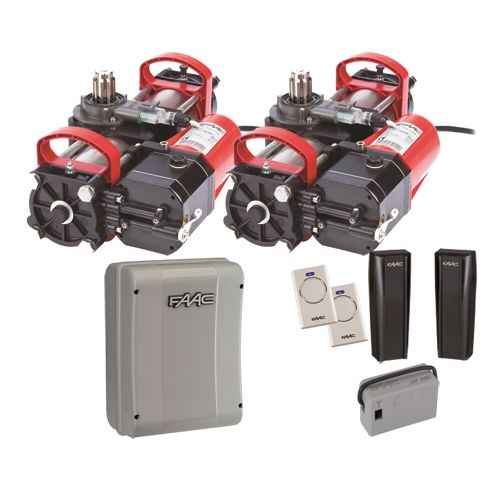

Click Here To Enlarge This Photo Of FAAC S800 230V SBW Double Underground Swing Gate Kit

FAAC S800 230V SBW Double Underground Swing Gate Kit

Add To Favourites
FAAC
£2,230.00 Ex. VAT(£2,676.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC S800 230V SBW Double Kit is a hydraulic underground swing gate automation system designed for pairs of residential and light commercial gates measuring up to 4 metres and weighing up to 800kg per leaf.

With both operators installed below ground, the S800 provides discreet automation without affecting the appearance of the gates. Its hydraulic drive system delivers dependable performance, particularly for larger, heavier gates and fully boarded timber gates exposed to increased wind loading.

The SBW version operates without hydraulic locking, making it suitable for longer gate leaves where an additional electric lock can provide secure closing. Unlike the CBAC version, which is limited to 2-metre leaves, the SBW model supports gates up to 4 metres per leaf.

The kit includes two 230V hydraulic operators, underground foundation boxes, collar assemblies and the electronic controls and accessories required for a twin swing gate installation.

Kit Contents

  • 2 × FAAC S800 SBW 230V 100° Hydraulic Operators (1088022)

  • 2 × FAAC S800 Foundation Boxes (490112)

  • 2 × FAAC S800 Collar Assemblies (390972)

  • 1 × FAAC E145 Control Board with Housing

  • 1 × FAAC XF 868 Plug-in Receiver

  • 1 × Pair FAAC XP20B D BUS Photocells

  • 2 × FAAC XT2 868 SLH LR Two-Button Transmitters

Technical Specifications

  • Manufacturer: FAAC

  • Model: S800 SBW 230V

  • Kit Type: Double Underground Swing Gate Kit

  • Operator Code: 1088022

  • Power Supply: 230V AC

  • Motor Voltage: 230V AC

  • Maximum Gate Weight: 800kg per leaf

  • Maximum Gate Length: 4m per leaf

  • Opening Angle: 100°

  • Opening Speed: Approximately 12 seconds to 90°

  • Motor Type: Hydraulic

  • Hydraulic Locking: No

  • Control Board: E145

  • Duty Cycle: Semi-intensive

  • Protection Rating: IP67

  • Operating Temperature: -20°C to +55°C

  • Installation: Underground

  • Application: Residential and light commercial double swing gates

Useful Information

SBW vs CBAC: The SBW version supports gate leaves up to 4m but does not provide hydraulic locking. The CBAC version incorporates hydraulic locking and is designed for shorter leaves up to 2m.

Electric Lock: An additional electric lock is required for the SBW version and is not included in the standard kit.

Model Availability: The original non-encoder S800 SBW 230V kit is listed as discontinued by some UK suppliers. The S800 ENC SBW 230V is the current alternative and should be checked before ordering.

MPN:

S800SBW230D

SKU:

S800SBW230D
Specification
BrandFAAC
SKUS800SBW230D
ModelS800
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)2m
Warranty3 Years
