Click Here To Enlarge This Photo Of FAAC S800 230V SBW Single Underground Hydraulic Swing Gate Kit – 4m Per Leaf

FAAC S800 230V SBW Single Underground Hydraulic Swing Gate Kit – 4m Per Leaf

Add To Favourites
FAAC
£1,365.00 Ex. VAT(£1,638.00 Inc. VAT)

In Stock

(From 1 Reviews)

Description

The FAAC S800 230V SBW Single Kit is a hydraulic underground swing gate automation system designed for single residential and commercial gates measuring up to 4 metres and weighing up to 800kg.

Built around the FAAC S800 SBW 230V hydraulic operator, the kit provides powerful, reliable gate movement while keeping the automation concealed beneath the entrance. It is particularly suited to substantial timber and metal gates where a conventional above-ground motor would detract from the appearance of the installation.

The SBW operator features a non-locking hydraulic system, allowing it to accommodate longer gate leaves than the hydraulically locking CBAC version. Its robust hydraulic drive provides controlled movement, while integrated mechanical stops allow the opening and closing positions to be adjusted during installation.

The system is operated through a FAAC electronic control board, providing programmable operating functions and connections for compatible safety and access control accessories.

Designed for new installations or the replacement of existing underground gate automation, the FAAC S800 SBW Single Kit offers a discreet solution for automating larger single swing gates.

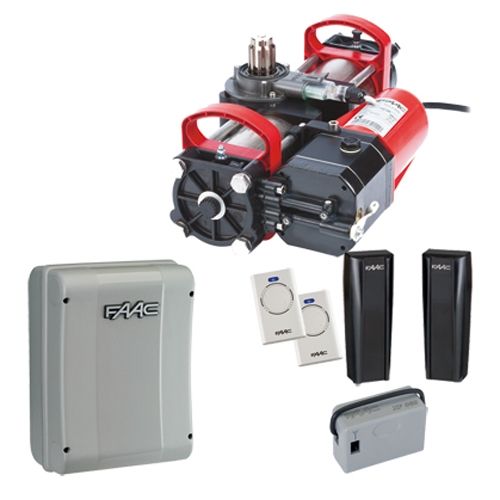

Kit Contents

  • 1 × FAAC S800 SBW 230V 100° Hydraulic Operator (1088022)

  • 1 × FAAC S800 Underground Foundation Box (490112)

  • 1 × FAAC S800 Collar Assembly (390972)

  • 1 × FAAC E145 Control Board (790076)

  • 1 × FAAC Control Board Housing (720119)

  • 1 × FAAC XF 868 Plug-in Receiver

  • 1 Pair × FAAC XP20B D BUS Photocells (785103)

  • 2 × FAAC XT2 868 SLH LR Two-Button Transmitters (787009)

Technical Specifications

  • Manufacturer: FAAC

  • Model: S800 SBW 230V Single Kit

  • Kit SKU: S800SBW230S

  • Operator Code: 1088022

  • Power Supply: 230V AC

  • Motor Type: Single-phase hydraulic

  • Maximum Gate Weight: 800kg

  • Maximum Gate Leaf Length: 4m

  • Opening Angle: 100° nominal

  • Hydraulic Locking: No (SBW)

  • Encoder: Not included

  • Mechanical Stops: Integrated

  • Hydraulic Oil: FAAC HP Oil

  • Protection Rating: IP67

  • Operating Temperature: -20°C to +55°C

  • Control Board: FAAC E145

  • Installation: Underground

  • Gate Configuration: Single swing gate

Useful Information

SBW vs CBAC: The SBW version supports gate leaves up to 4m but has no hydraulic locking. A suitable electric lock is required and is not included in this kit.

Encoder Alternative: This kit uses the non-encoder operator 1088022. The encoder-equipped alternative uses operator 108802 with BUS 2easy communication.

MPN:

S800SBW230S

SKU:

S800SBW230S
Specification
BrandFAAC
SKUS800SBW230S
ModelS800
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitSingle
Voltage230V
Max. Width of Gate (m)2m
Warranty3 Years
Reviews

Very friendly service Knowledgeable people
