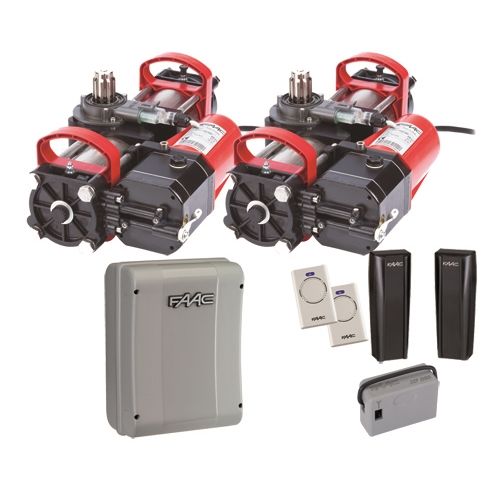

Click Here To Enlarge This Photo Of FAAC S800 24V SBW Double Underground Swing Gate Kit

FAAC S800 24V SBW Double Underground Swing Gate Kit

Add To Favourites
FAAC
£2,279.00 Ex. VAT(£2,734.80 Inc. VAT)

In Stock

(From 1 Reviews)

Description

The FAAC S800 SBW Double Kit is an underground hydraulic gate automation system designed for residential and commercial double swing gates where powerful operation and discreet installation are required.

The underground operators are concealed beneath the gate leaves, preserving the appearance of decorative steel, timber and other gate designs. The S800 hydraulic system is particularly suited to larger gates where reliable movement and a robust drive mechanism are important.

The SBW version is hydraulically non-locking, allowing the gates to be moved manually when the automation is not operating. A suitable electric lock is required to secure the gates in the closed position.

The S800 SBW range is designed for gate leaves up to 4 metres long, subject to gate weight, geometry and installation conditions.

This double kit is intended to provide automation for two swing gate leaves, with underground foundation boxes and compatible control equipment.

Important: The FAAC S800 SBW hydraulic operator is normally specified as a 230V model. The 24V designation in this product title needs confirmation before the electrical specifications and kit contents can be finalised.

Key Specifications

  • Manufacturer: FAAC

  • Model: S800 SBW

  • Product Type: Double Underground Swing Gate Automation Kit

  • Operator Type: Underground Hydraulic

  • Number of Operators: 2

  • Maximum Gate Leaf Length: Up to 4m per leaf

  • Maximum Gate Weight: Up to 800kg per leaf, subject to installation limits

  • Hydraulic Locking: Non-Locking (SBW)

  • Electric Lock: Required

  • Installation: Underground

  • Motor Voltage: To Be Confirmed – S800 SBW is normally 230V

  • Control Board: Subject to confirmed operator and kit configuration

  • Opening Angle: Subject to selected operator version

  • Manual Operation: Possible with the non-locking hydraulic arrangement

  • Foundation Boxes: Required

What's Included

The double kit configuration should include:

  • 2 x FAAC S800 SBW Underground Hydraulic Operators

  • 2 x Compatible Underground Foundation Boxes

  • 2 x Operator Collar Assemblies

  • 1 x Compatible FAAC Control Board

  • 1 x Control Board Housing

  • 1 x FAAC Radio Receiver

  • 1 x Pair of Safety Photocells

  • 2 x FAAC Radio Transmitters

The exact component references and quantities must be confirmed against the supplier's kit specification.

An electric lock, additional safety devices, cabling and installation materials are not included unless specified separately.

Installer Note

The FAAC S800 SBW is a non-locking hydraulic underground operator intended for larger swing gates.

A suitable electric lock is required to secure the gate leaves in the closed position.

The underground foundation boxes require correctly constructed concrete foundations, appropriate drainage and accurate alignment with the gate hinges.

The correct control board must be selected for the operator voltage and configuration. A 24V motor must not be connected to a 230V control output, or vice versa.

All installations must be individually risk assessed, with appropriate photocells, safety edges and other protective measures fitted where required.

MPN:

S800 SB KIT

SKU:

S800 SB KIT
Specification
BrandFAAC
SKUS800 SB KIT
ModelS800
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)2m
Warranty3 Years
Reviews

Brilliant prompt service
