FAAC S800H 24V 100° CBAC Single Underground Hydraulic Swing Gate Kit – 2m / 800kg

Add To Favourites
FAAC
£1,537.00 Ex. VAT(£1,844.40 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC S800H 24V 100° CBAC Single Kit is an underground hydraulic automation system designed for single swing gates up to 2 metres wide and weighing up to 800kg. Combining FAAC's S800H hydraulic operator with 24V motor technology, it is particularly suited to residential and commercial entrances requiring frequent operation and concealed automation.

The operator is installed beneath the gate hinge, keeping the motor hidden below ground level. This makes the S800H a suitable choice for bespoke steel gates, decorative wrought iron gates and traditional timber entrances where exposed automation equipment would detract from the finished appearance.

The CBAC configuration incorporates hydraulic locking in both the opening and closing positions, helping hold the gate in place when stationary. Unlike the SBW version, which is designed for longer gate leaves without hydraulic locking, the CBAC operator provides built-in hydraulic locking for gates up to 2 metres.

The integrated absolute magnetic encoder uses FAAC's BUS 2easy communication system to monitor gate position. When connected to compatible FAAC control equipment, this supports accurate movement control, obstacle detection and controlled slowdown during opening and closing.

With its 24V hydraulic drive and continuous-duty capability, the S800H is particularly well suited to entrances with regular daily use. The standard 100° opening configuration accommodates most conventional swing gate layouts, while integrated mechanical stops allow precise adjustment of the gate's travel.

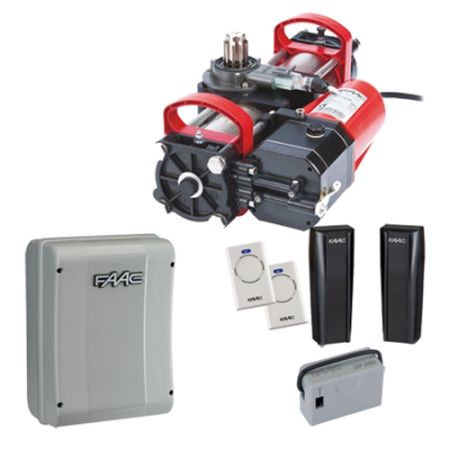

Kit Contents

  • 1 × FAAC S800H ENC CBAC 24V 100° Hydraulic Operator (108720)

  • 1 × FAAC S800 Foundation Box (490112)

  • 1 × FAAC S800 Splined Collar Assembly (390972)

  • 1 × FAAC S800 Hydraulic Release Device (390035)

  • 1 × FAAC E124 24V Control Board with Enclosure (790284)

  • 1 × FAAC XF 868 SLH Plug-in Receiver

  • 1 Pair × FAAC XP20B D BUS Photocells (785103)

  • 2 × FAAC Two-Button 868MHz Transmitters

Technical Specifications

  • Manufacturer: FAAC

  • Model: S800H ENC CBAC 100° Single Kit

  • Kit Reference: S800 CBAC KIT S-100

  • Operator Code: 108720

  • Mains Supply: 220–240V AC, 50/60Hz

  • Motor Voltage: 24V DC

  • Motor Type: Hydraulic

  • Maximum Gate Weight: 800kg

  • Maximum Gate Leaf Length: 2m

  • Opening Configuration: 100°

  • Maximum Opening Angle: 113°

  • Maximum Motor Power: 60W

  • Maximum Torque: 600Nm with E124 control board

  • Maximum Angular Speed: 8.2°/second with E124

  • Hydraulic Locking: Opening and closing (CBAC)

  • Encoder: Absolute magnetic encoder, BUS 2easy

  • Operating Frequency: Continuous use

  • Mechanical Stops: Integrated

  • Hydraulic Oil: FAAC HP Oil

  • Protection Rating: IP67

  • Operating Temperature: -20°C to +55°C

  • Operator Dimensions: 380 × 220 × 160mm

  • Installation: Underground

  • Gate Configuration: Single swing gate

Useful Information

CBAC vs SBW: The CBAC operator provides hydraulic locking in both directions and supports gate leaves up to 2m. The SBW version operates without hydraulic locking and supports leaves up to 4m.

100° vs 180°: This kit uses the standard 100° operator (108720). The 180° CBAC alternative uses operator code 108722 and requires the corresponding installation configuration.

MPN:

S800 CBAC KIT S

SKU:

S800 CBAC KIT S
Specification
BrandFAAC
SKUS800 CBAC KIT S
ModelS800
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitSingle
Voltage24V
Max. Width of Gate (m)4m
Warranty3 Years
