Click Here To Enlarge This Photo Of BFT Ares Veloce BT A1000 24V Fast Sliding Gate Motor – 1000kg

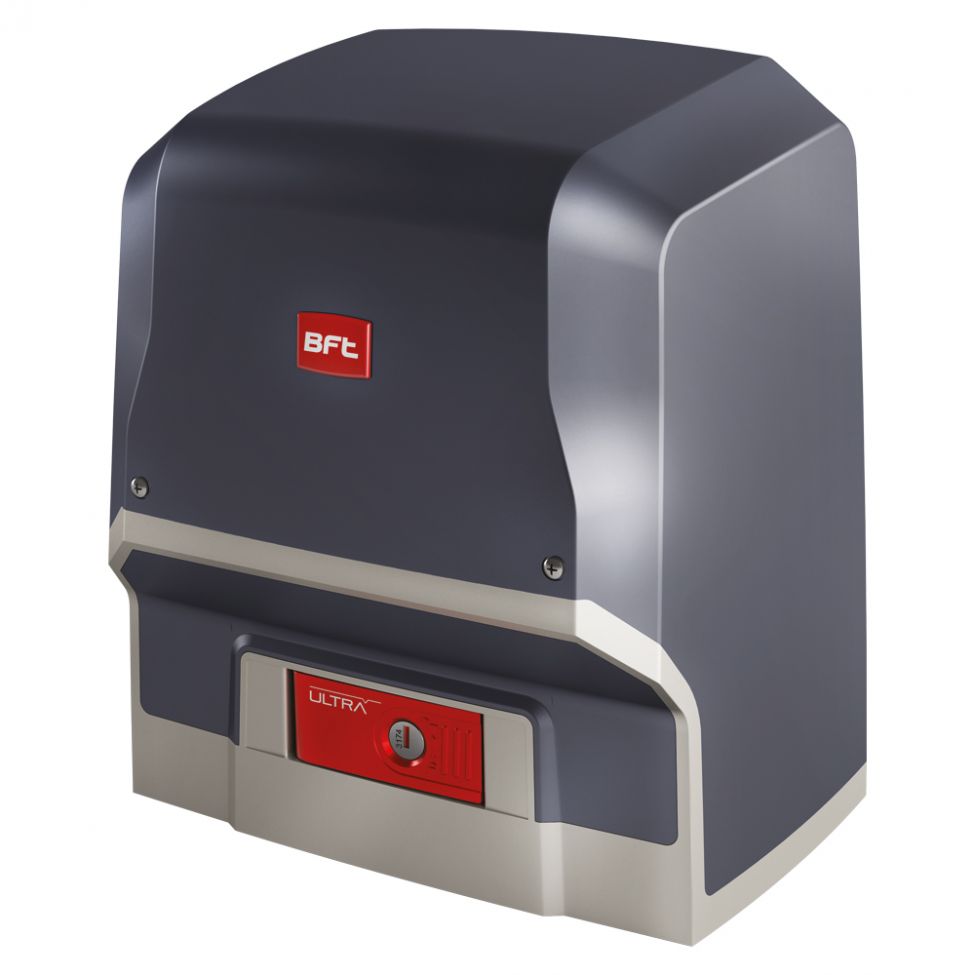

BFT Ares Veloce BT A1000 24V Fast Sliding Gate Motor – 1000kg

Add To Favourites
BFT
£769.21 Ex. VAT(£923.05 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT Ares Veloce BT A1000 is a high-speed 24V sliding gate motor designed for residential, commercial and shared-access sliding gates weighing up to 1,000kg.

Featuring an integrated MERAK SV control board and BFT's D-Track torque management system, the Ares Veloce provides obstacle detection, adjustable operating parameters and controlled slowing during opening and closing.

The 24V electromechanical motor operates at speeds of up to 18 metres per minute, making it suitable for busy entrances where faster gate movement and reduced waiting times are important. Designed for intensive use, it combines high-speed performance with electronic torque control and U-Link compatible programming.

The non-reversing gearmotor provides mechanical locking when stationary, while the manual release mechanism allows the gate to be operated manually during a power failure.

Key Specifications

  • Manufacturer: BFT

  • Model: Ares Veloce BT A1000

  • Motor voltage: 24V DC

  • Mains supply: 230V AC

  • Maximum gate weight: 1,000kg

  • Maximum gate speed: 18m/min

  • Power consumption: 400W

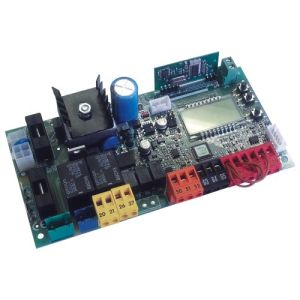

  • Control board: MERAK SV integrated

  • Motor type: Electromechanical

  • Duty cycle: Intensive use

  • Limit switches: Electromechanical

  • Obstacle detection: D-Track torque management

  • Maximum torque: 20Nm

  • Locking: Mechanical

  • Slowdown: Adjustable

  • Protection rating: IP24

  • Operating temperature: -20°C to +55°C

  • Connectivity: BFT U-Link compatible

  • Manual release: Mechanical release mechanism

Installer Note

Suitable for sliding gates weighing up to 1,000kg where fast operation is required. The integrated MERAK SV control board supports adjustable operating parameters and connections for compatible safety devices.

This listing is for the gearmotor with integrated control board only. Remote controls, photocells, drive rack and other installation accessories are available separately.

The Ares Veloce BT A1000 operates at 18m/min. For lighter gates requiring faster movement, the BFT Ares Veloce BT A500 offers speeds of up to 25m/min for gates weighing up to 500kg.

Additional safety devices may be required following the installation risk assessment, particularly where high-speed gate movement presents additional hazards.

MPN:

ARES VELOCE BT A1000

SKU:

ARES VELOCE BT A1000
Specification
BrandBFT
SKUARES VELOCE BT A1000
ModelAres
Automation ForSliding Gate
OperatorGearmotor
Type of OperatorElectromechanical
Voltage24V
Max. Weight of Gate1000KG
Warranty2 Years
