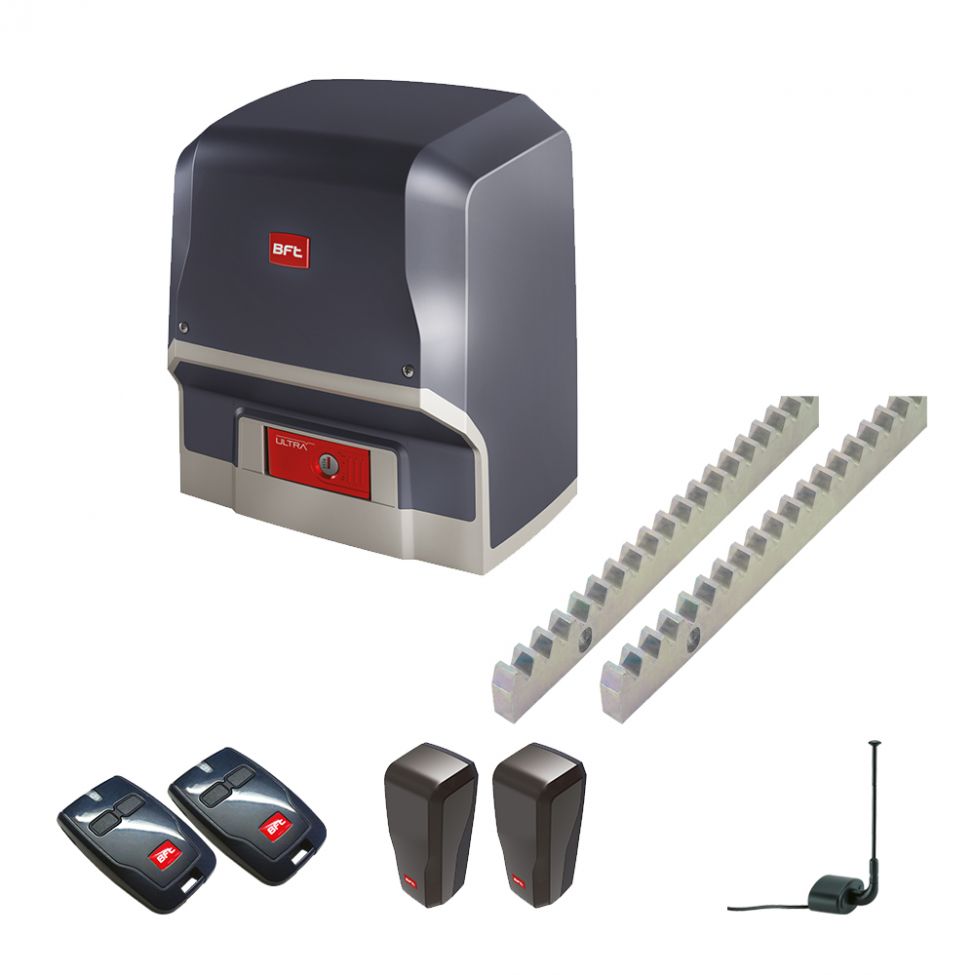

Click Here To Enlarge This Photo Of BFT Ares Veloce BT A500 24V Fast Sliding Gate Motor – 500kg

BFT Ares Veloce BT A500 24V Fast Sliding Gate Motor – 500kg

Add To Favourites
BFT
£920.00 Ex. VAT(£1,104.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT Ares Veloce BT A500 is a high-speed 24V sliding gate motor designed for residential, commercial and shared-access sliding gates weighing up to 500kg.

Featuring an integrated MERAK SV control board and BFT's D-Track torque management system, the Ares Veloce provides electronic obstacle detection, adjustable operating parameters and controlled slowing during opening and closing.

The 24V electromechanical motor operates at speeds of up to 25 metres per minute, making it particularly suitable for busy entrances where fast gate movement and reduced waiting times are important. Designed for intensive use, it combines rapid operation with electronic torque control and U-Link compatible programming.

Electromechanical limit switches control the gate's opening and closing positions, while the mechanically locking gearmotor holds the gate in position when stationary. A lever-operated manual release allows the gate to be moved manually during a power failure.

Key Specifications

  • Manufacturer: BFT

  • Model: Ares Veloce BT A500

  • Alternative designation: Ares Veloce Smart BT A500

  • Motor voltage: 24V DC

  • Mains supply: 230V AC

  • Maximum gate weight: 500kg

  • Maximum gate speed: 25m/min

  • Power consumption: 400W

  • Control board: MERAK SV integrated

  • Motor type: Electromechanical

  • Duty cycle: Intensive use

  • Limit switches: Electromechanical

  • Obstacle detection: D-Track torque management

  • Maximum torque: 20Nm

  • Pinion: Module 4, 25 teeth

  • Locking: Mechanical

  • Slowdown: Adjustable

  • Protection rating: IP24

  • Operating temperature: -20°C to +55°C

  • Connectivity: BFT U-Link and EElink compatible

  • Manual release: Lever-operated mechanical release

  • Battery backup: Optional

Installer Note

Suitable for sliding gates weighing up to 500kg where fast operation is required. The integrated MERAK SV control board supports adjustable operating parameters, pedestrian opening and connections for compatible safety devices.

This listing is for the gearmotor with integrated control board only. Remote controls, photocells, drive rack and other installation accessories are available separately.

The Ares Veloce BT A500 operates at up to 25m/min. For heavier gates weighing up to 1,000kg, the BFT Ares Veloce BT A1000 offers a maximum operating speed of 18m/min.

The high operating speed requires careful consideration of gate construction, stopping distances and safety protection. Additional photocells, safety edges and other protective devices may be required following the installation risk assessment and force testing.

MPN:

ARES VELOCE BT A500

SKU:

ARES VELOCE BT A500
Specification
BrandBFT
SKUARES VELOCE BT A500
ModelAres
Automation ForSliding Gate
OperatorGearmotor
Type of OperatorElectromechanical
Voltage24V
Max. Weight of Gate500KG
Warranty2 Years
