Click Here To Enlarge This Photo Of BFT LUX 2B 230V Hydraulic Double Swing Gate Automation Kit

BFT LUX 2B 230V Hydraulic Double Swing Gate Automation Kit

Add To Favourites
BFT
£1,000.00 Ex. VAT(£1,200.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT LUX 2B Double Kit is a 230V hydraulic swing gate automation system designed for very intensive use in residential, commercial and multi-user installations.

Suitable for double swing gates with leaves up to 2m wide and weighing up to 300kg each, the LUX 2B features hydraulic locking in both opening and closing directions, with adjustable operating force for reliable performance.

Key Specifications

  • Manufacturer: BFT

  • Model: LUX 2B

  • Kit product code: KITLUX2B

  • Motor product code: P935011 00001

  • Motor power supply: 230V AC

  • Maximum gate leaf length: 2m per leaf

  • Maximum gate leaf weight: 300kg per leaf

  • Motor type: Hydraulic linear swing gate operator

  • Locking: Hydraulic locking in opening and closing

  • Maximum opening angle: 123°

  • Opening time: Approximately 17 seconds through 90°

  • Slowdown: No

  • Useful rod stroke: 270mm

  • Power consumption: 250W per motor

  • Impact reaction: Hydraulic clutch

  • Control panel: BFT RIGEL 6

  • Frequency of use: Very intensive

  • Protection rating: IP57

  • Operating temperature: -10°C to +60°C

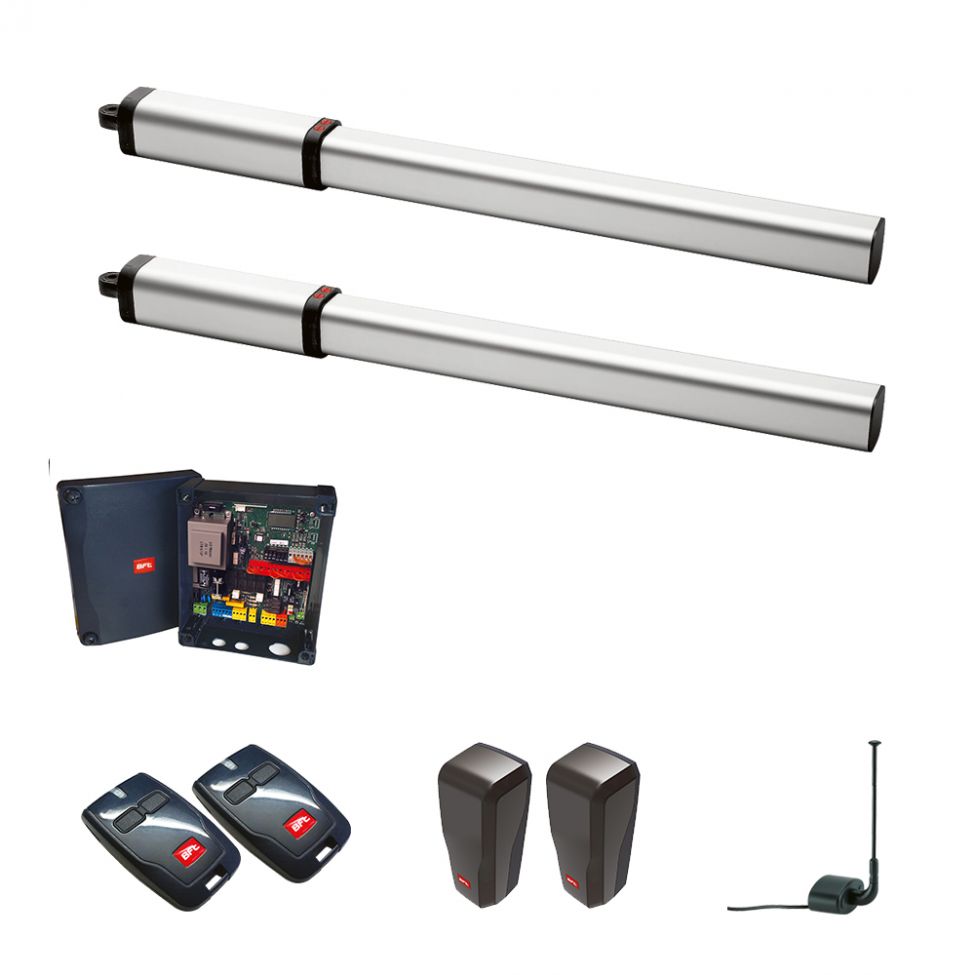

What's Included

  • 2 x BFT LUX 2B 230V Hydraulic Swing Gate Motors

  • 1 x BFT RIGEL 6 Control Panel with Receiver

  • 2 x BFT Mitto 2-Button Radio Transmitters

  • 1 x Pair of BFT Safety Photocells

  • 1 x BFT Radio Antenna

Installer Note

The LUX 2B is hydraulically locking in both directions and does not incorporate slowdown. For installations requiring slowdown during closing, the LUX R 2B is the corresponding alternative.

Check mounting geometry, bracket requirements and gate stops before installation.

MPN:

LUX 2B Kit

SKU:

LUX 2B Kit
Specification
BrandBFT
SKULUX 2B Kit
ModelLux
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)2m
Warranty2 Years
