Click Here To Enlarge This Photo Of BFT LUX 2B 230V Hydraulic Single Swing Gate Automation Kit

BFT LUX 2B 230V Hydraulic Single Swing Gate Automation Kit

Add To Favourites
BFT
£730.00 Ex. VAT(£876.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT LUX 2B Single Kit is a 230V hydraulic swing gate automation system designed for very intensive use in residential, commercial and multi-user installations.

Suitable for a single swing gate leaf up to 2m wide and weighing up to 300kg, the LUX 2B features hydraulic locking in both opening and closing directions, with adjustable operating force for reliable gate automation.

Key Specifications

  • Manufacturer: BFT

  • Model: LUX 2B

  • Kit product code: KITLUXSGL (LUX 2B configuration)

  • Motor power supply: 230V AC

  • Maximum gate leaf length: 2m

  • Maximum gate leaf weight: 300kg

  • Motor type: Hydraulic linear swing gate operator

  • Locking: Hydraulic locking in opening and closing

  • Maximum opening angle: 123°

  • Opening time: Approximately 17 seconds through 90°

  • Slowdown: No

  • Useful rod stroke: 270mm

  • Power consumption: 250W

  • Impact reaction: Hydraulic clutch

  • Control panel: BFT RIGEL 6

  • Frequency of use: Very intensive

  • Protection rating: IP57

  • Operating temperature: -10°C to +60°C

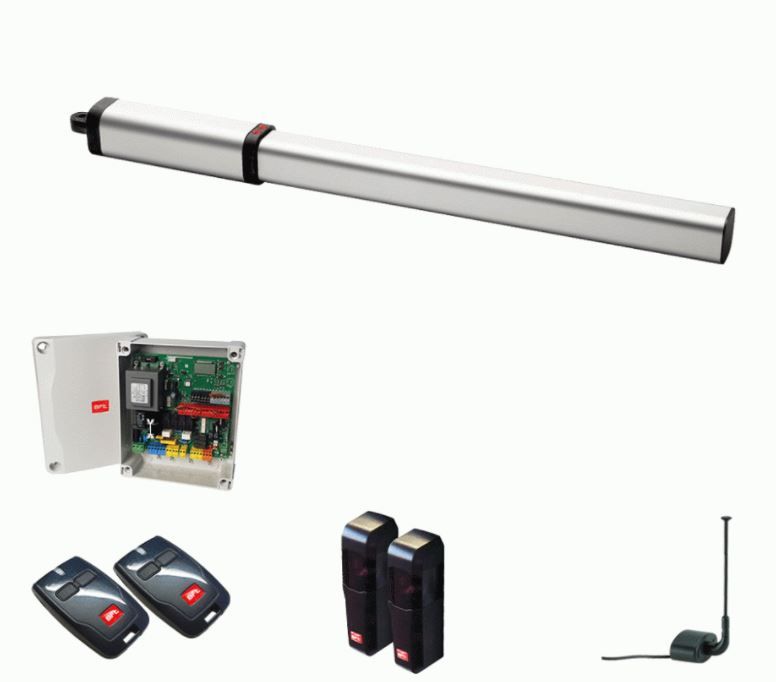

What's Included

  • 1 x BFT LUX 2B 230V Hydraulic Swing Gate Motor

  • 1 x BFT RIGEL 6 Control Panel with Receiver

  • 2 x BFT Mitto Radio Transmitters

  • 1 x Pair of BFT Compacta 180 Safety Photocells

  • 1 x BFT Radio Antenna

Installer Note

The LUX 2B is hydraulically locking and does not incorporate slowdown. For installations requiring slowdown during closing, the LUX R 2B is the corresponding alternative.

Check mounting geometry and bracket compatibility before replacing an existing operator.

MPN:

LUX 2B Single Kit

SKU:

LUX 2B Single Kit
Specification
BrandBFT
SKULUX 2B Single Kit
ModelLux
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Double / Single KitSingle
Voltage230V
Max. Width of Gate (m)2m
Warranty2 Years
