Click Here To Enlarge This Photo Of BFT LUX R 2B 230V Hydraulic Single Swing Gate Automation Kit

BFT LUX R 2B 230V Hydraulic Single Swing Gate Automation Kit

Add To Favourites
BFT
£745.00 Ex. VAT(£894.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT LUX R 2B Single Kit is a 230V hydraulic swing gate automation system designed for very intensive use in residential, commercial and multi-user installations.

Suitable for a single swing gate leaf up to 2m wide and weighing up to 300kg, the LUX R 2B features hydraulic locking in both directions and integrated slowdown during closing for smoother, controlled gate movement.

Key Specifications

  • Manufacturer: BFT

  • Model: LUX R 2B (LUX 2B R)

  • Kit reference: LUX R2B KIT S

  • Motor power supply: 230V AC

  • Maximum gate leaf length: 2m

  • Maximum gate leaf weight: 300kg

  • Motor type: Hydraulic linear swing gate operator

  • Locking: Hydraulic locking in opening and closing

  • Maximum opening angle: 123°

  • Opening time: 16 seconds through 90°, plus slowdown

  • Slowdown: Yes, during closing

  • Useful rod stroke: 250mm

  • Power consumption: 250W

  • Impact reaction: Hydraulic clutch

  • Control panel: BFT RIGEL 6

  • Frequency of use: Very intensive

  • Protection rating: IP57

  • Operating temperature: -10°C to +60°C

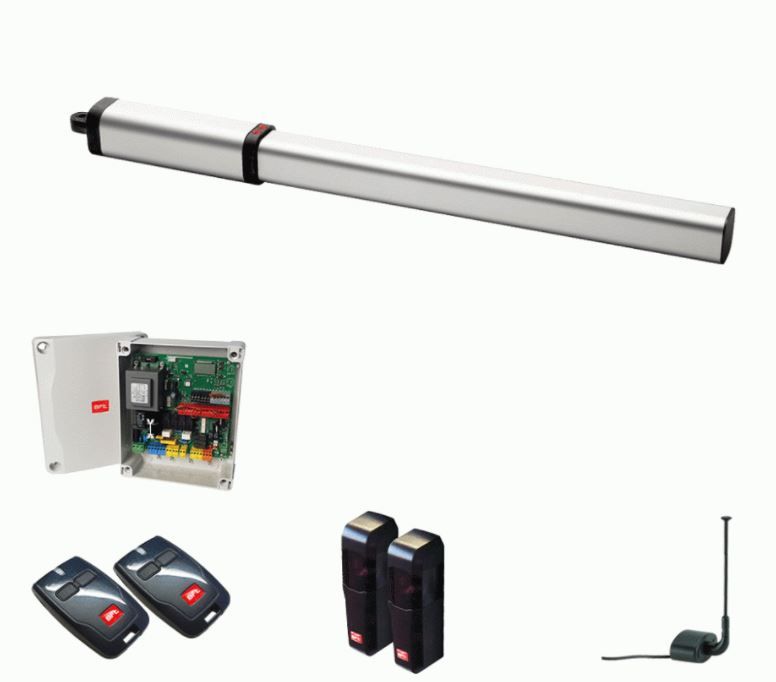

What's Included

  • 1 x BFT LUX R 2B 230V Hydraulic Swing Gate Motor

  • 1 x BFT RIGEL 6 Control Panel with Receiver

  • 2 x BFT Mitto 2-Button Radio Transmitters

  • 1 x Pair of BFT Compacta 180 Safety Photocells

  • 1 x BFT Radio Antenna

Installer Note

The LUX R 2B incorporates hydraulic slowdown during closing, unlike the standard LUX 2B.

Its 250mm rod stroke differs from the standard LUX 2B. Check mounting geometry and bracket compatibility before ordering as a replacement.

MPN:

LUX 2B R Single Kit

SKU:

LUX 2B R Single Kit
Specification
BrandBFT
SKULUX 2B R Single Kit
ModelLux
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Double / Single KitSingle
Voltage230V
Max. Width of Gate (m)2m
Warranty2 Years
