Click Here To Enlarge This Photo Of BFT LUX GV R 230V Hydraulic Swing Gate Motor

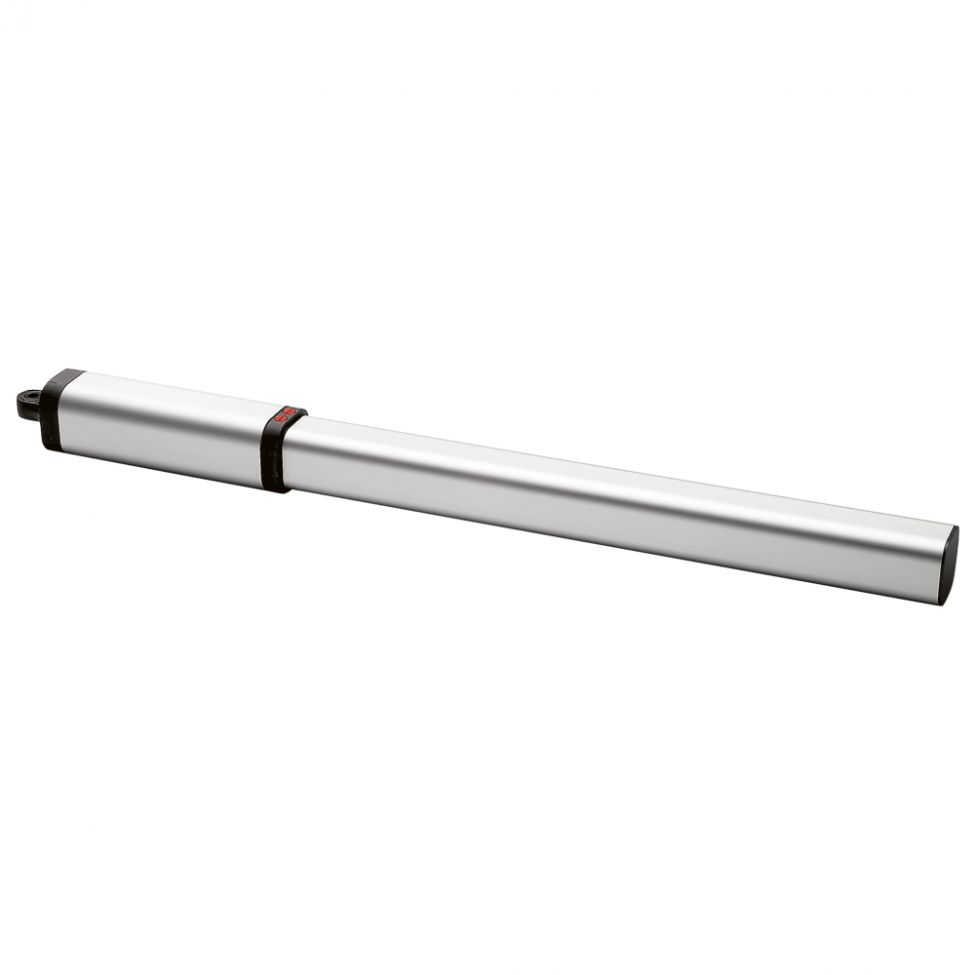

BFT LUX GV R 230V Hydraulic Swing Gate Motor

Add To Favourites
BFT
£615.00 Ex. VAT(£738.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT LUX GV R is a 230V hydraulic swing gate motor designed for very intensive use in residential, commercial and multi-user installations.

Suitable for swing gate leaves up to 3.5m wide and weighing up to 300kg, the LUX GV R features a long-stroke hydraulic ram and integrated slowdown during closing. Its non-locking operation makes it suitable for installations incorporating a separate electric lock.

Key Specifications

  • Manufacturer: BFT

  • Model: LUX GV R (LUX GVR)

  • Motor power supply: 230V AC

  • Maximum gate leaf length: 3.5m

  • Maximum gate leaf weight: 300kg

  • Motor type: Hydraulic linear swing gate operator

  • Locking: Non-locking

  • Maximum opening angle: 130°

  • Opening time: Approximately 28 seconds through 90°, with slowdown

  • Slowdown: Yes, during closing

  • Useful rod stroke: 390mm

  • Power consumption: 250W

  • Impact reaction: Hydraulic clutch

  • Recommended control panel: BFT RIGEL 6

  • Frequency of use: Very intensive

  • Protection rating: IP57

  • Operating temperature: -10°C to +60°C

What's Included

  • 1 x BFT LUX GV R 230V Hydraulic Swing Gate Motor

Installer Note

The LUX GV R is a non-locking hydraulic operator and requires a suitable electric lock to secure the gate.

Unlike the LUX GVS, the LUX GV R incorporates slowdown during closing. Check the 390mm rod stroke and mounting geometry when replacing an existing operator.

MPN:

Lux GV R

SKU:

Lux GV R
Specification
BrandBFT
SKULux GV R
ModelLux
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Voltage230V
Max. Width of Gate (m)3.5m
Warranty2 Years
